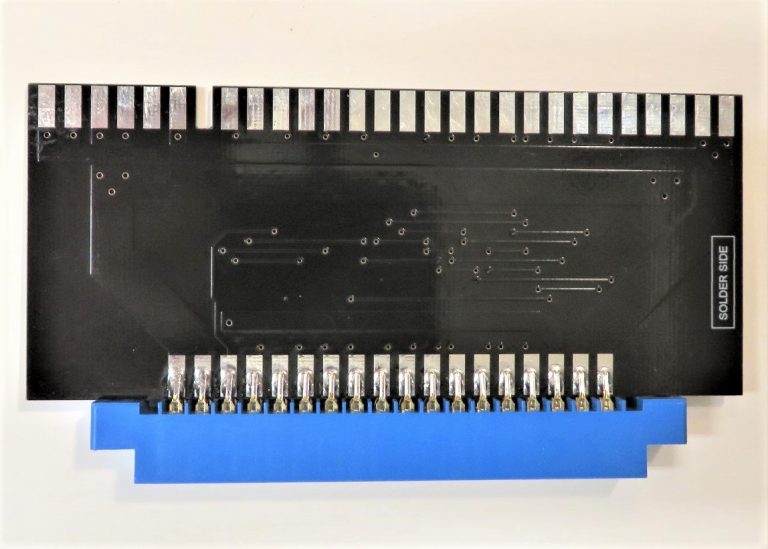

Tecfri to JAMMA Adapter
Couldn't load pickup availability
Tecfri is a Spanish arcade manufacturer known for the European distribution of games primarily from Tehkan, Nichibutsu, and Konami. Tehkan went on to manufacture and distribute a few original titles as well. After the company shut down operations in 1987 some of its employees went on to work for Gaelco.
Many of the original games released by Tecfri share the same pinout. This adapter works for those games only. The licensed games released by Tecfri will likely use the hardware from the original manufacturer.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
Pinout
Pinout
SOLDER SIDE | PARTS SIDE |
---|---|
+5V | GND |
+5V | GND |
SPK+ | +12V |
SPK- | VSYNC |
NC | VGREEN |
COUNT2 | VRED |
COUNT1 | VBLUE |
P2RIGHT | COIN1 |
P2LEFT | COIN2 |
P2DOWN | P1START |
P2UP | P2START |
P1RIGHT | P2B1 |
P1LEFT | P2B2 |
P1DOWN | P1B1 |
P1UP | P1B2 |
+12V | (COUNT+) |
GND | +5V |
GND | +5V |
Dimensions
Dimensions
Board Size: 50mm x 112mm
Weight: 50g
