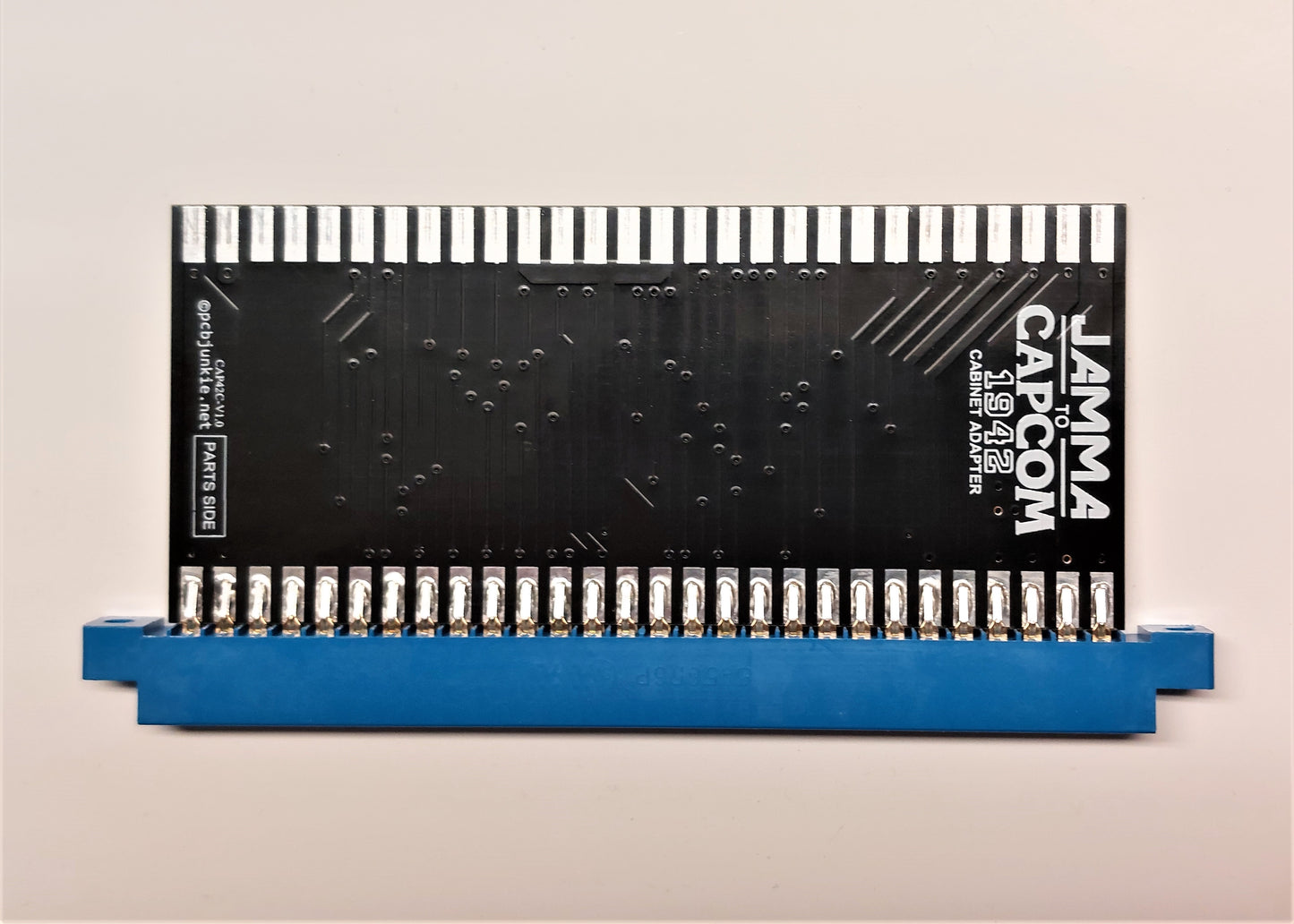

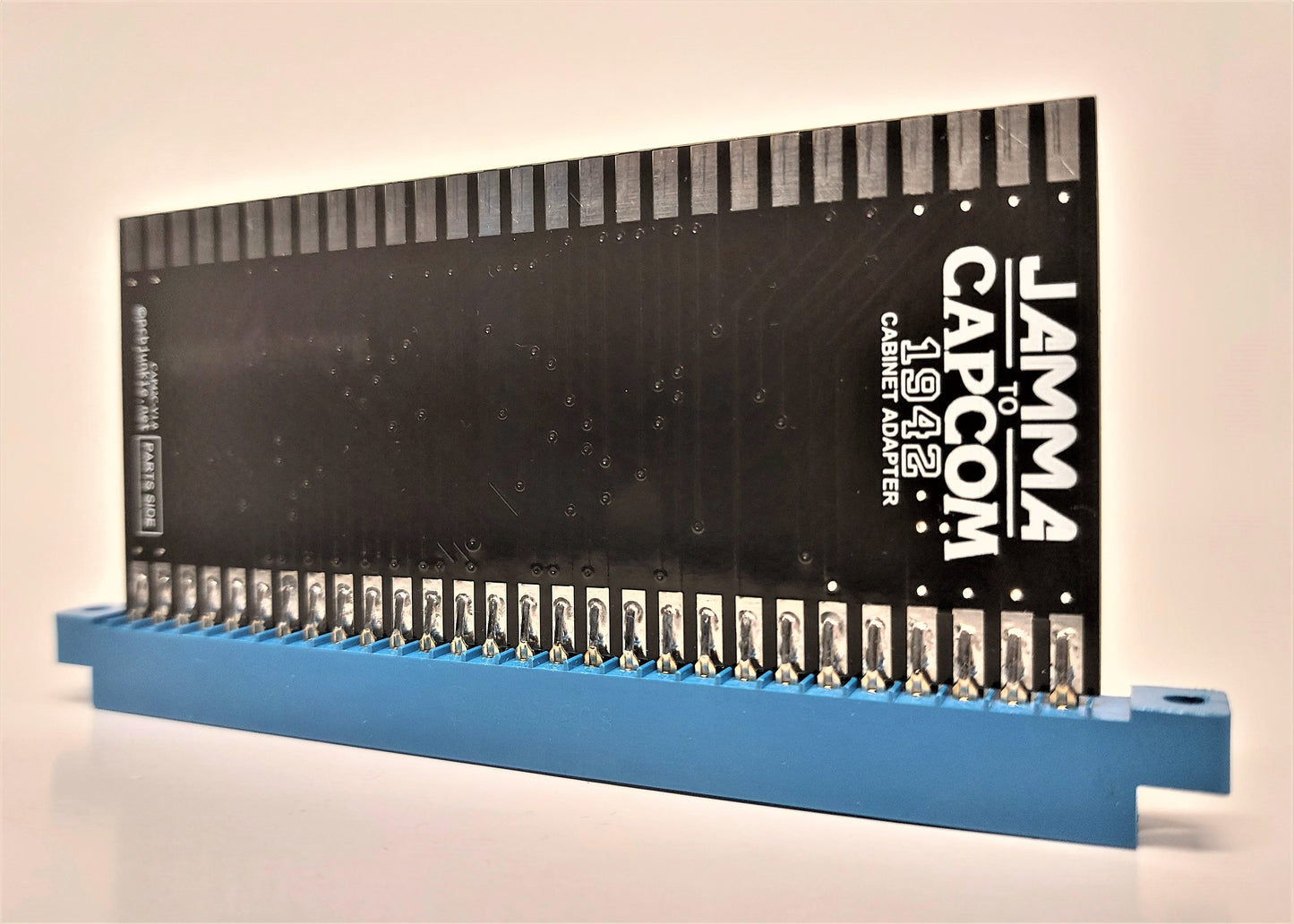

JAMMA to Capcom 1942 / Vulgus Cabinet Adapter

$23.99 CAD
$23.99 CAD
Sale Sold out

Allows you to play your JAMMA games in a Capcom 1942 or Vulgus pre-JAMMA cabinet. This adapter will play JAMMA games with up to 2 buttons.

Cabinet Compatibility

Voltages

This adapter does not support the -5V power rail which is not present in Capcom’s 1942 / Vulgus wiring harness. Games that require -5V may not run.

Inputs and Outputs

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than 2 buttons and more than one coin switch present.

If the button order is wrong you may need to swap the wires going to the buttons behind the control panel.

If game can’t be coined up, say in a case where only COIN2 switch is wired in the cabinet, and the game only supports the COIN1 switch, you may need to swap the coin wires on the harness or potentially jumper them together to get the game to coin up.

Pinout

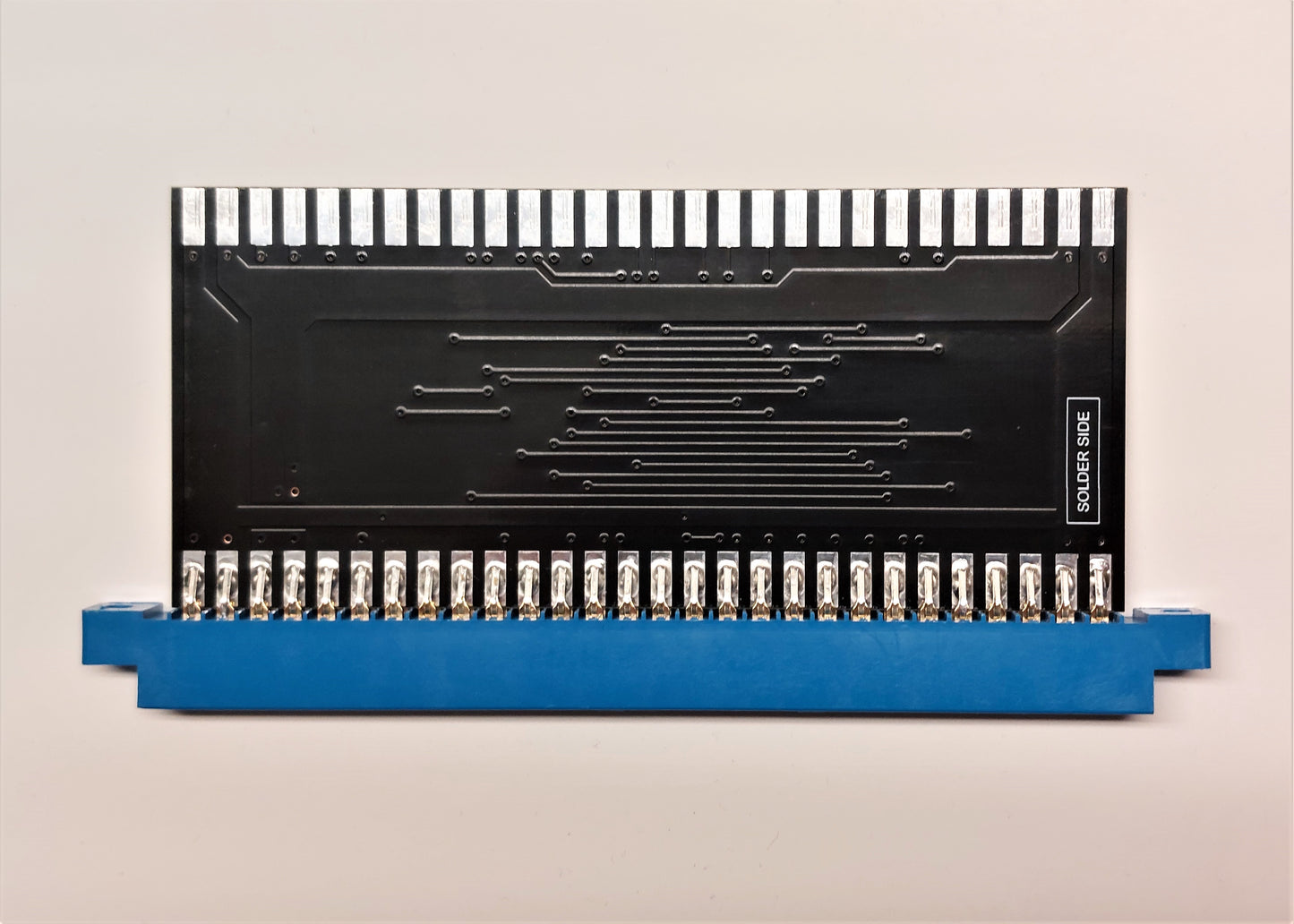

SOLDER SIDE PARTS SIDE
GND GND
+5V +5V
+12V +12V
GND GND
SPK- SPK-
SPK+ SPK+
GNDCNT COUNT1
KEY KEY
P1B1 P1UP
P1DOWN P1LEFT
P1RIGHT GND
P2B1 P2UP
P2DOWN P2LEFT
P2RIGHT GND
P2START GND
P1START GND
COIN1 GND
SVC GND
NC P1B2
NC P2B2
NC VGND
VSYNC VRED
VGREEN VBLUE
NC NC
NC NC
NC NC
+5V +5V
GND GND

Dimensions

Size: 50x113mm
Weight: 50g
