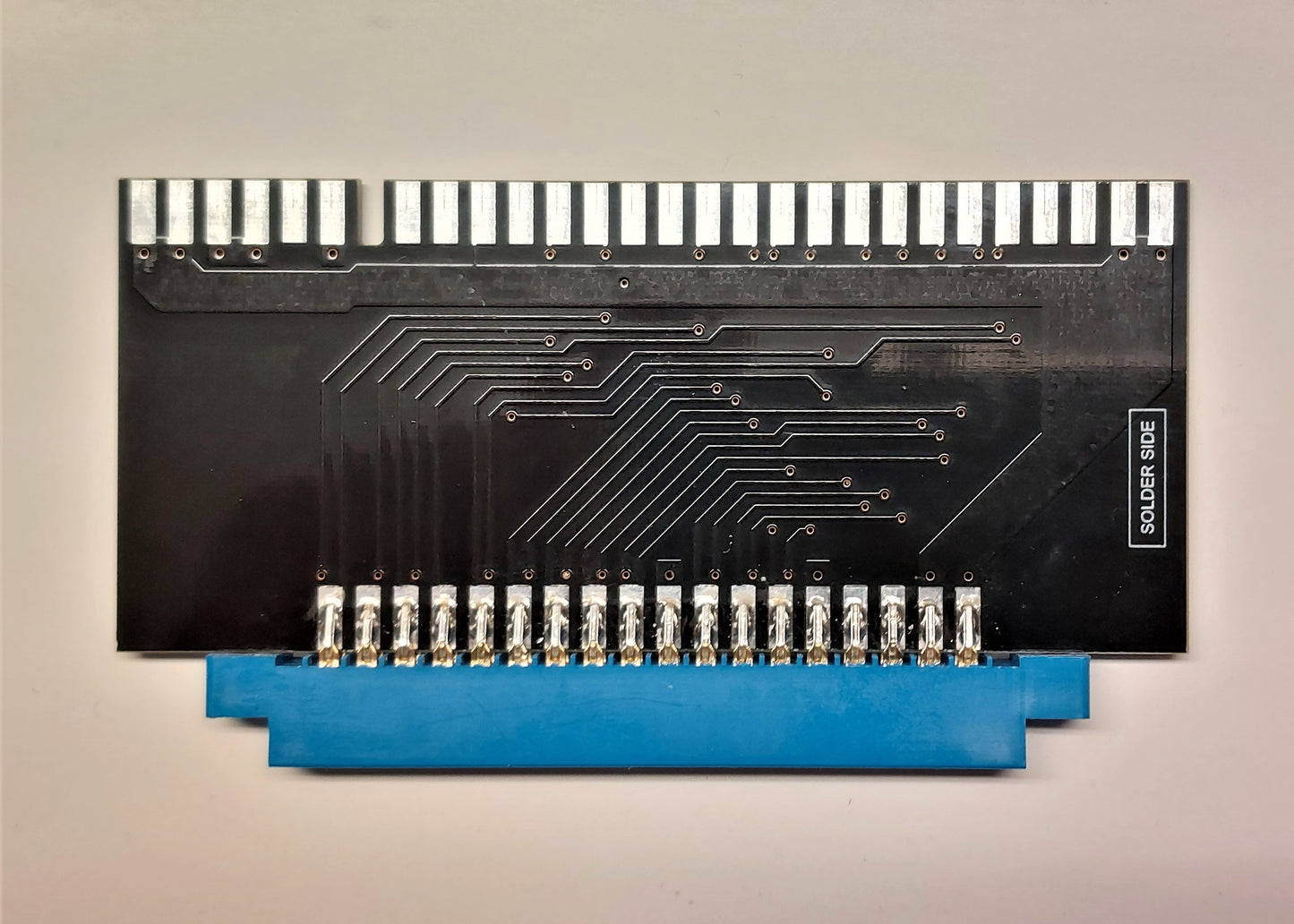

Champion Baseball to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Champion Baseball pre-JAMMA game, in a JAMMA cabinet or a supergun device.
Champion Baseball was originally developed by Alpha Denshi and was released and distributed worldwide by Sega for the arcade market.
This is yet another game released by Sega with a unique pinout, likely the result of not being developed in house by Sega themselves.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| COIN2 | VSYNC |
| NC | VGREEN |
| P2B3 | VBLUE |
| VRED | NC |
| P1DOWN | P1B3 |
| COIN1 | P1START |
| P1B2 | P2START |
| P1B1 | P2B1 |
| P1UP | P2B2 |
| +5V | +5V |
| P1LEFT | P1RIGHT |
| P2LEFT | P2RIGHT |
| P2UP | P2DOWN |
| +12V | +12V |
| NC | SPK+ |
| NC | NC |
| GND | GND |
| GND | GN |
Dimensions
Dimensions
