Capcom to JAMMA Adapter
Regular price
$23.99 CAD
Regular price
Sale price
$23.99 CAD
Unit price
per
Couldn't load pickup availability

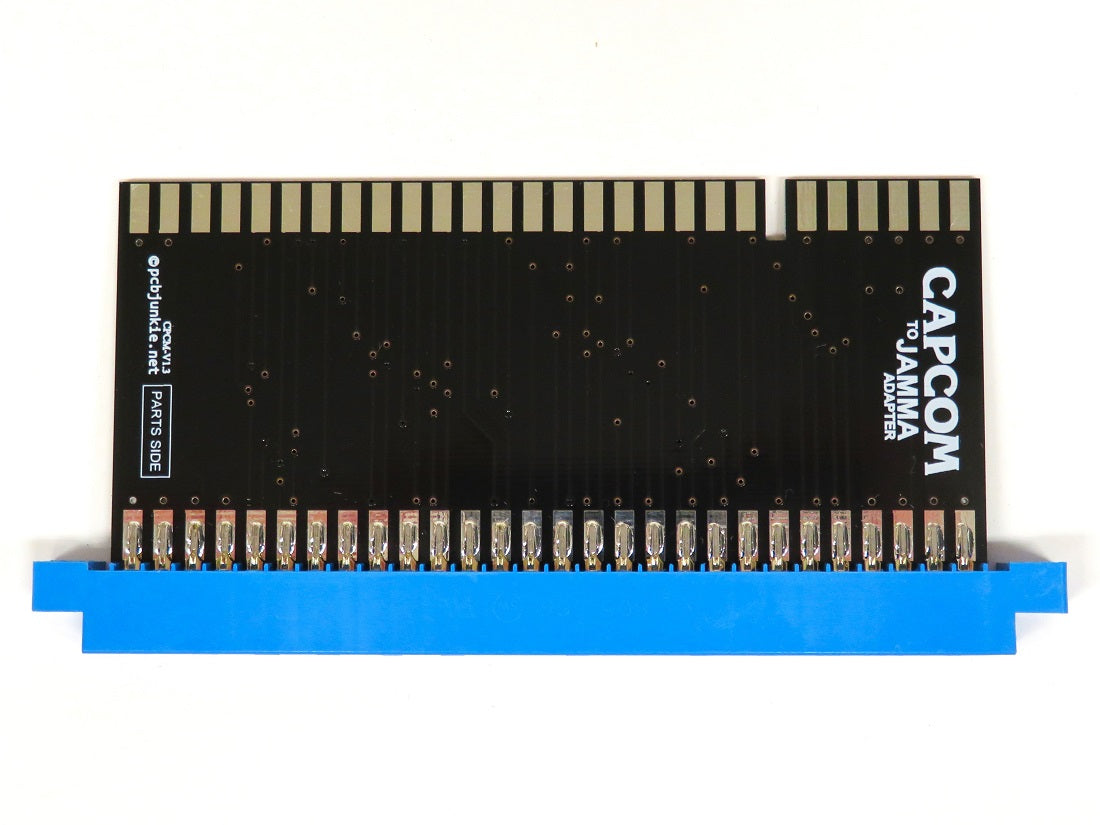

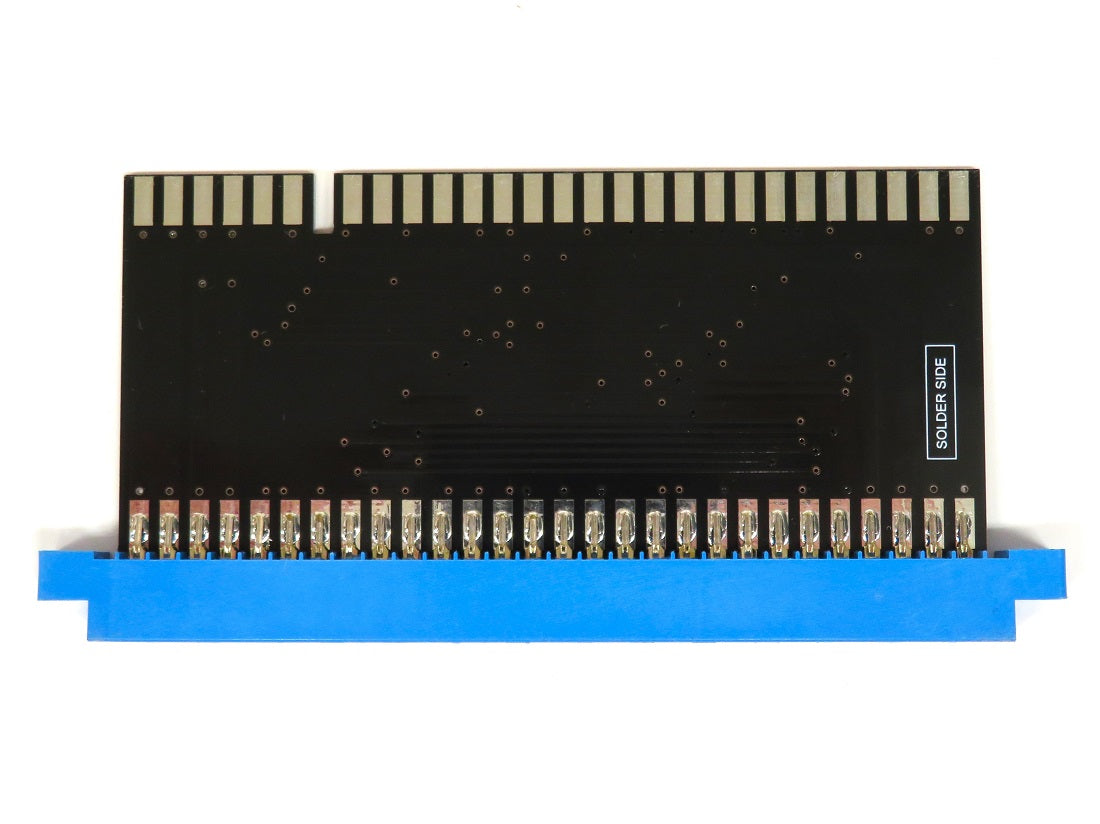

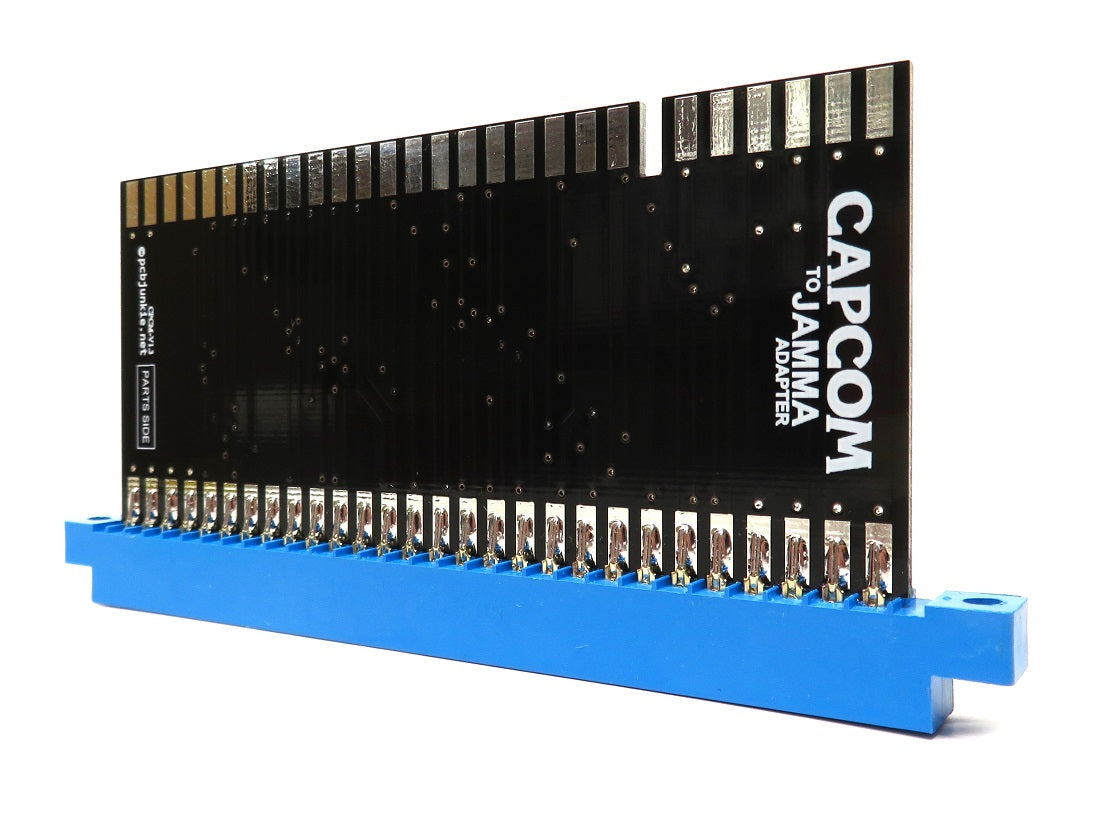

Allows you to use your Capcom 56 pin pre-JAMMA game, in a JAMMA cabinet or a super gun device. This adapter will play all the games in the Capcom Classics conversion series, including the 3 button game Gun Smoke.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND |
GND
|
|
GND
|
GND
|
|
+5V
|
+5V
|
|
+5V
|
+5V
|
|
VGREEN
|
VRED
|
|
VSYNC
|
VBLUE
|
|
VGND
|
VGND
|
|
KEY
|
KEY
|
|
P2B2
|
P1B2
|
|
P2B1
|
P1B1
|
|
P2UP
|
P1UP
|
|
P2DOWN
|
P1DOWN
|
|
P2LEFT
|
P1LEFT
|
|
P2RIGHT
|
P1RIGHT
|
|
GND
|
GND
|
|
P2START
|
P1START
|
|
D5
|
D4
|
|
COIN2
|
COIN1
|
|
GND
|
GND
|
|
P2B3
|
P1B3
|
|
NC
|
NC
|
|
GND *
|
GND *
|
|
COUNT2
|
COUNT1
|
|
SPK-
|
SPK+
|
|
+12V
|
+12V
|
|
GND
|
GND
|
|
GND
|
GND
|
|
GND
|
GND
|
