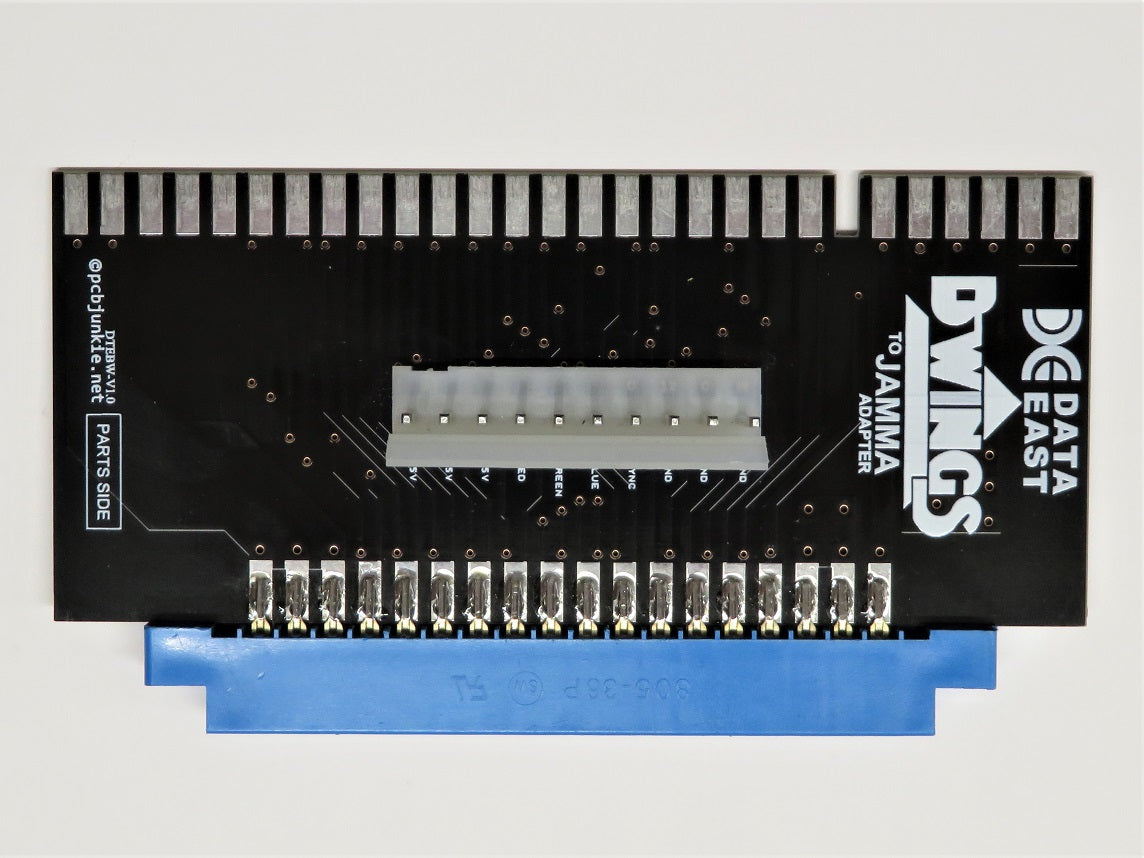

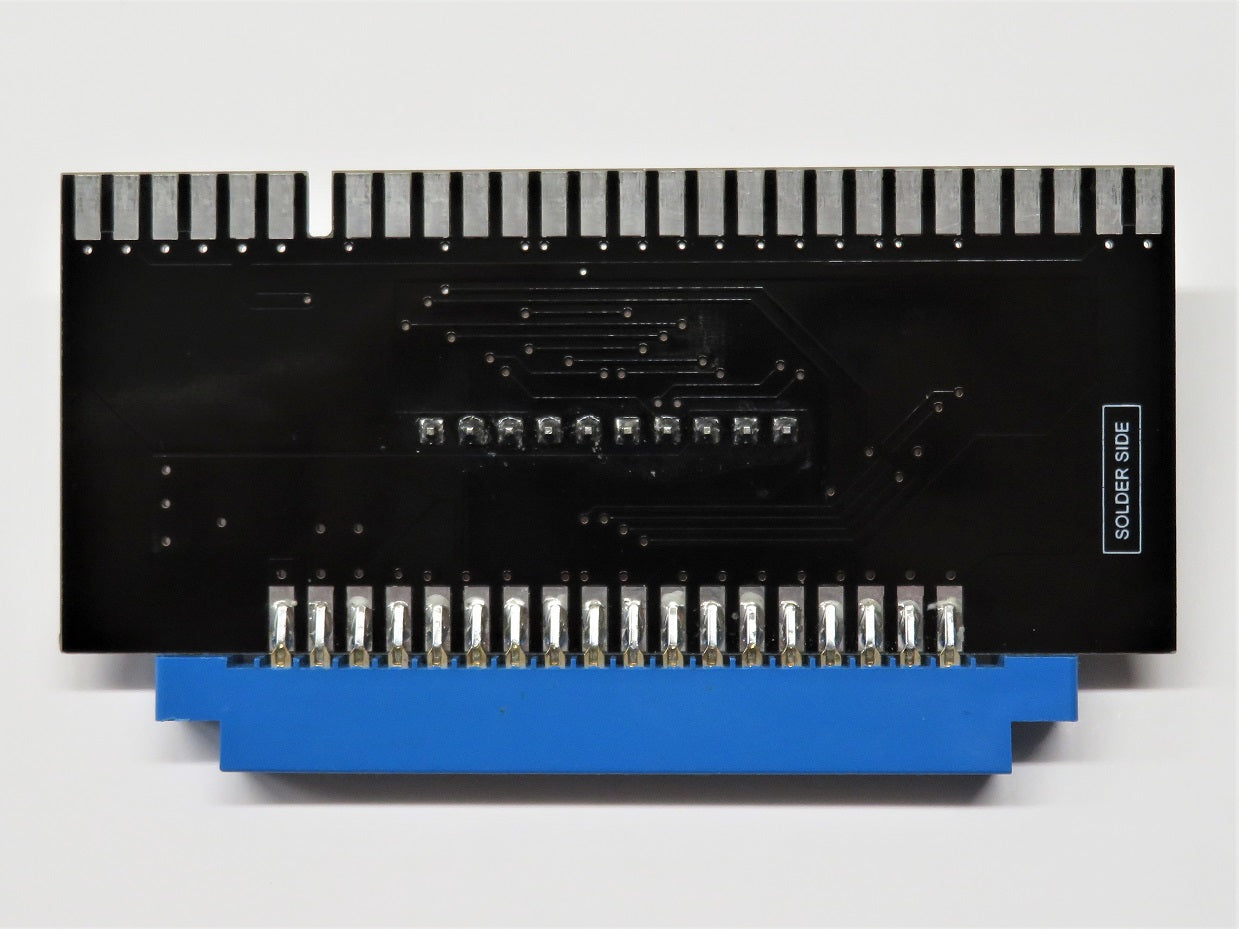

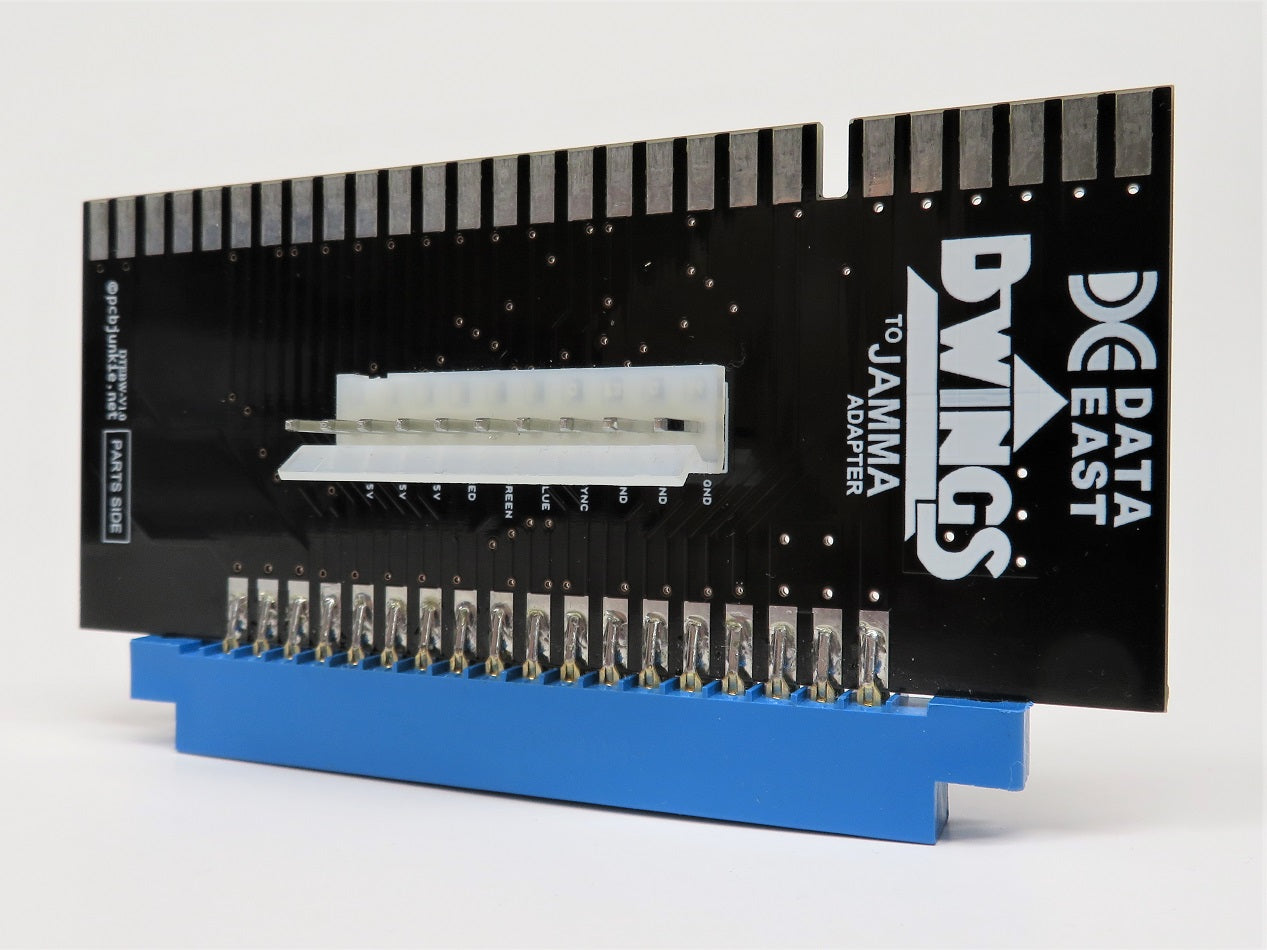

B-Wings to JAMMA Adapter

Regular price $54.99 CAD
Regular price Sale price $54.99 CAD
Sale Sold out

B-Wings or Battle Wings, was a fairly ambitious shooter from Data East released in 1984. The PCB for this game is a massive 3 board stack sandwich which used multiple different CPUs, including a custom security CPU developed specifically for Data East. Several memory banks of no less than 4 different RAM chip types were required to draw the game’s three background layers and massive amounts of enemy sprites.

Compared to games that came out at around the same time, B-Wings was more technologically advanced due to its complex hardware. While it had interesting depth based game play mechanics and multiple power ups not found in other games at that time, that didn’t necessarily translate into a game that was fun to play.

B-Wings did however enjoy a fair amount of success In Japan. North America it is known more for its 1986 Famicom port found on imported bootleg Famicom multi game carts.

The arcade board pinout is similar to other DECO / Data East games from this period. but differs in how the power rails are connected.

Game Compatibility

This is the list of games that you may be able to use with this adapter:

And possibly other Data East games from this period.

The adapter has been tested with a genuine B-Wings pcb.

Pinout

Main Edge Connector

SOLDER SIDE PARTS SIDE
+12V +12V
+5V +5V
+5V +5V
-5V NC
COUNT2 COUNT1
COIN2 COIN1
SVC TILT
P2START P1START
P2B2 P1B2
P2B1 P1B1
P2DOWN P1DOWN
P2UP P1UP
P2LEFT P1LEFT
P2RIGHT P1RIGHT
SPK- SPK+
GND GND
GND GND
GND GND

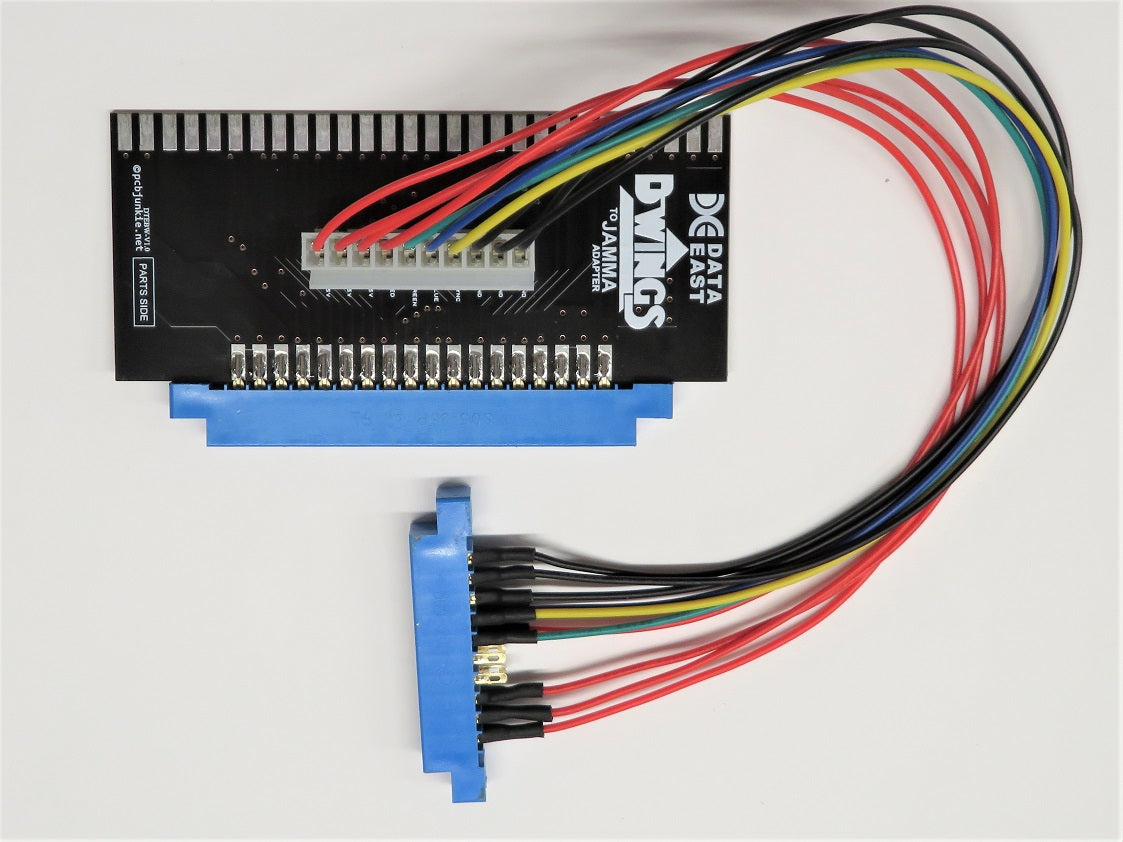

Power / Video Edge Connector (with included cable)

SOLDER SIDE PARTS SIDE
GND GND
GND GND
GND GND
VSYNC VBLUE
VGREEN VRED
NC NC
NC NC
+5V +5V
+5V +5V
+5V +5V

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
