Boomer Rang'r to JAMMA Adapter
Couldn't load pickup availability

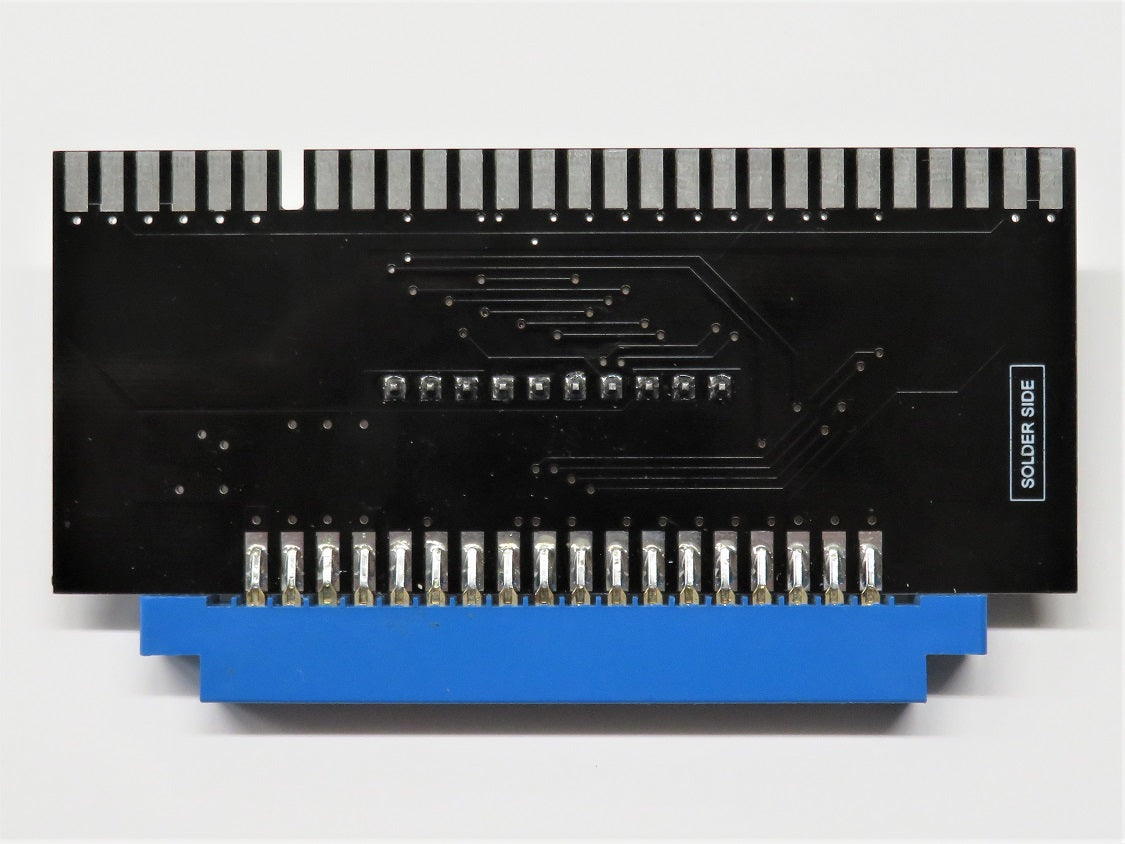

Boomer Rang’r aka Genesis in some regions, is a cutesy adventure style shoot’em up from Data East released in 1984. It may be one of the first examples of a type of game later to be categorized as a cute’em up.
The PCB pinout is similar to other DECO / Data East games from this period. but differs in how the power rails are connected.
Game Compatibility
Game Compatibility
This is the list of games that you may be able to use with this adapter:
And possibly other Data East games from this period.
The adapter has been tested with a genuine Boomer Rang'r pcb.
Pinout
Pinout
Main Edge Connector
| SOLDER SIDE | PARTS SIDE |
|---|---|
| +12V | +12V |
| +5V | +5V |
| +5V | +5V |
| +5V | +5V |
| NC | NC |
| COIN2 | COIN1 |
| NC | TILT |
| P2START | P1START |
| P2B2 | P1B2 |
| P2B1 | P1B1 |
| P2DOWN | P1DOWN |
| P2UP | P1UP |
| P2LEFT | P1LEFT |
| P2RIGHT | P1RIGHT |
| SPK- | SPK+ |
| GND | GND |
| GND | GND |
| GND | GND |
Power / Video Edge Connector (with included cable)
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| GND | GND |
| VSYNC | VBLUE |
| VGREEN | VRED |
| NC | NC |
| NC | NC |
| +5V | +5V |
| +5V | +5V |
| +5V | +5V |
