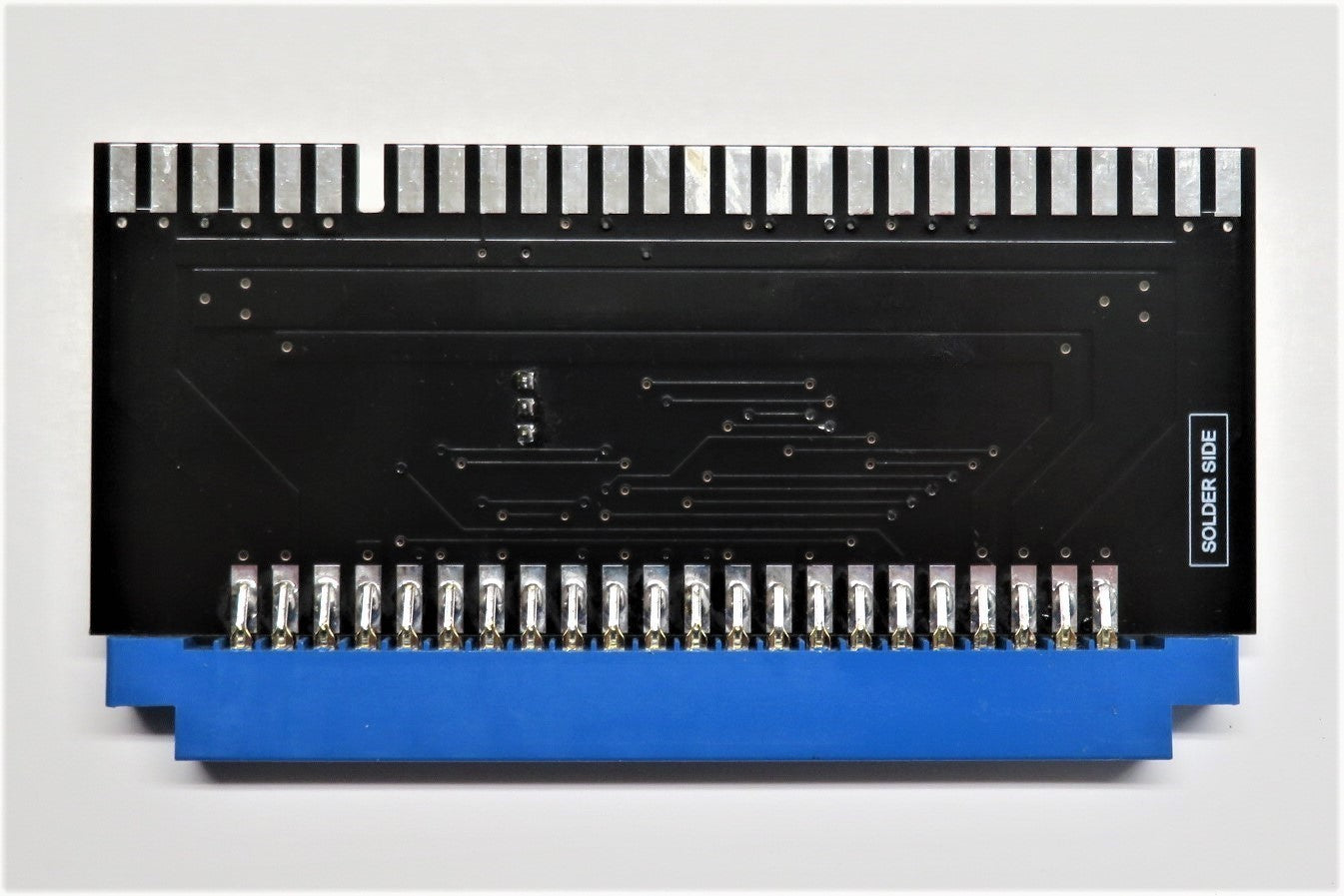

Bagman to JAMMA Adapter
Couldn't load pickup availability
Bagman was released in arcades by Valadon Automation in 1982. It was licensed to Stern for U.S. distribution the same year. In other regions, the game is known as Le Bagnard. Two years after the initial release the company released Super Bagman, an update to the existing game with new levels which run on the same hardware.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a Bagman PCB.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| NC | NC |
| +12V | +12V |
| SPK+ | P2DOWN |
| VSYNC | VBLUE |
| VGREEN | VRED |
| NC | VGND |
| P1DOWN | TABLE |
| P2RIGHT | P2LEFT |
| P2UP | P1UP |
| P1RIGHT | P1LEFT |
| P2START | P1START |
| NC | P1B1 |
| COIN2 | COIN1 |
| NC | P2B1 |
| COUNT | RESET (NC) |
| NC | NC |
| -5V | -5V |
| +5V | +5V |
| GND | GND |
| GND | GND |
