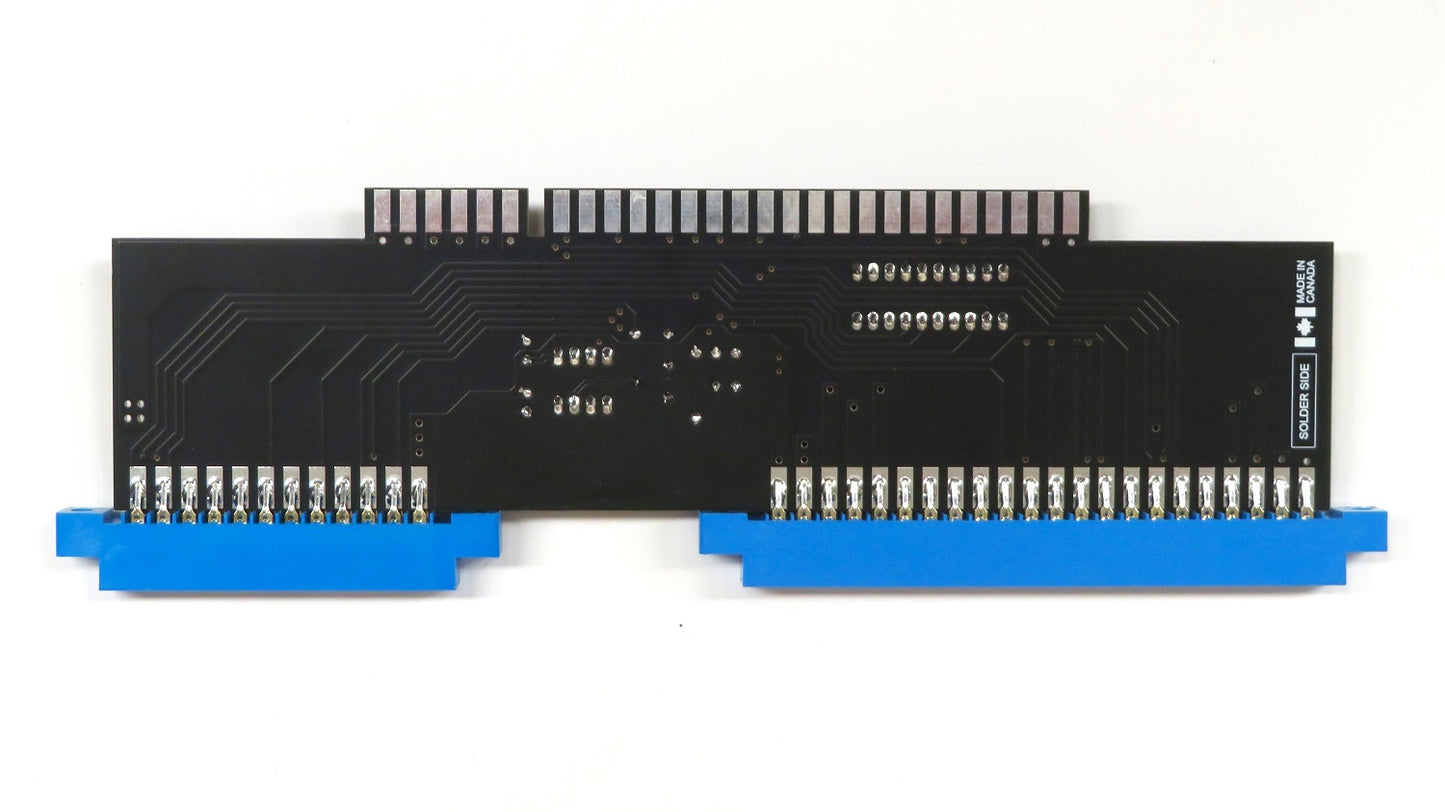

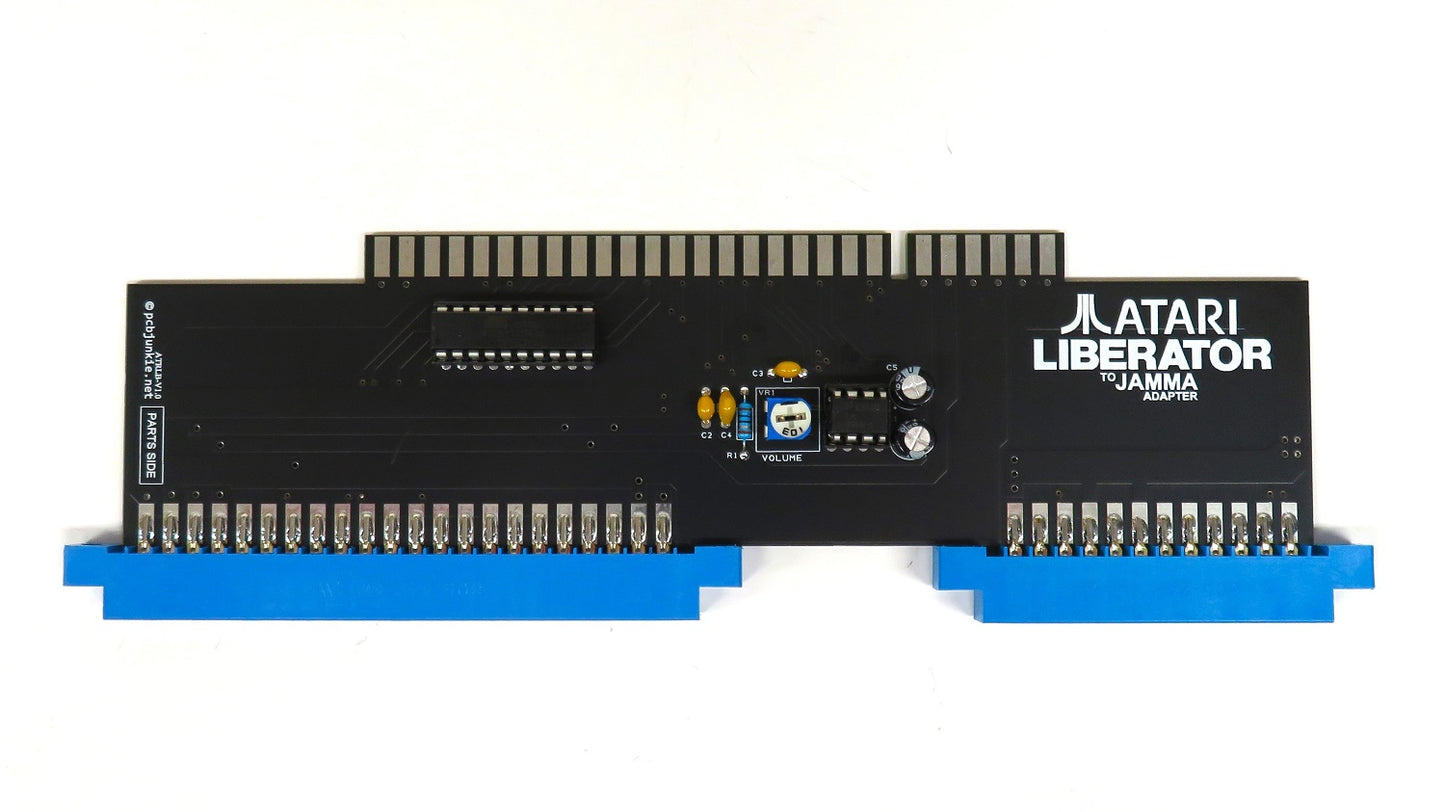

Atari Liberator to JAMMA Adapter

Regular price $74.99 CAD
Regular price Sale price $74.99 CAD
Sale Sold out

Allows you to connect and play your Atari Liberator PCB to a JAMMA cab or supergun.

Liberator was released by Atari in 1982. Game concept is the reverse of Missile Command, where instead of defending cities and bases, you attack them from above. Liberator had some interesting pseudo 3D effects and was graphically quite advanced for the time, but the gameplay is quite simplistic and probably one of the main reasons why Lberator ended up being a marketing dissapointment. Production numbers were less than a thousand units.

Like Missile Command, this game uses a trackball, but now only 2 buttons are used, one for missiles, and one for shields. This adapter can however utilize a standard JAMMA joystick setup with at least 2 fire buttons, using a built-in microcontroller for joystick to trackball emulation.

Like many Atari games from this period, Liberator has a unique pinout and is the only game that be converted with this adapter.

Game Compatibility

This is the list of compatible games that can be used with this adapter:

The adapter has been tested with a genuine version of Atari Liberator board.

Pinout

Main Connector:

SOLDER SIDE PARTS SIDE
GND GND
+5V +5V
+12V NC
-5V NC
+12V NC
NC NC
NC NC
NC NC
NC NC
TEST NC
NC P1START
P2START NC
P1B1 P1B2
NC SVC
COIN2 NC
COIN1 COUNT2
COUNT1 LED1
LED2 NC
-22V (NC) -5V
NC +12V
+5V +5V
GND GND



Secondary Connector (24 Pin):

SOLDER SIDE PARTS SIDE
VCLK VDIR
HDIR HCLK
NC NC
NC NC
NC NC
VSYNC NC
AUDIO2 AUDGND
AUDIO1 NC
NC VGND
VRED VGREEN
VBLUE NC
NC NC

Dimensions

Board Size: 50mm x 225mm
Weight: 150g
