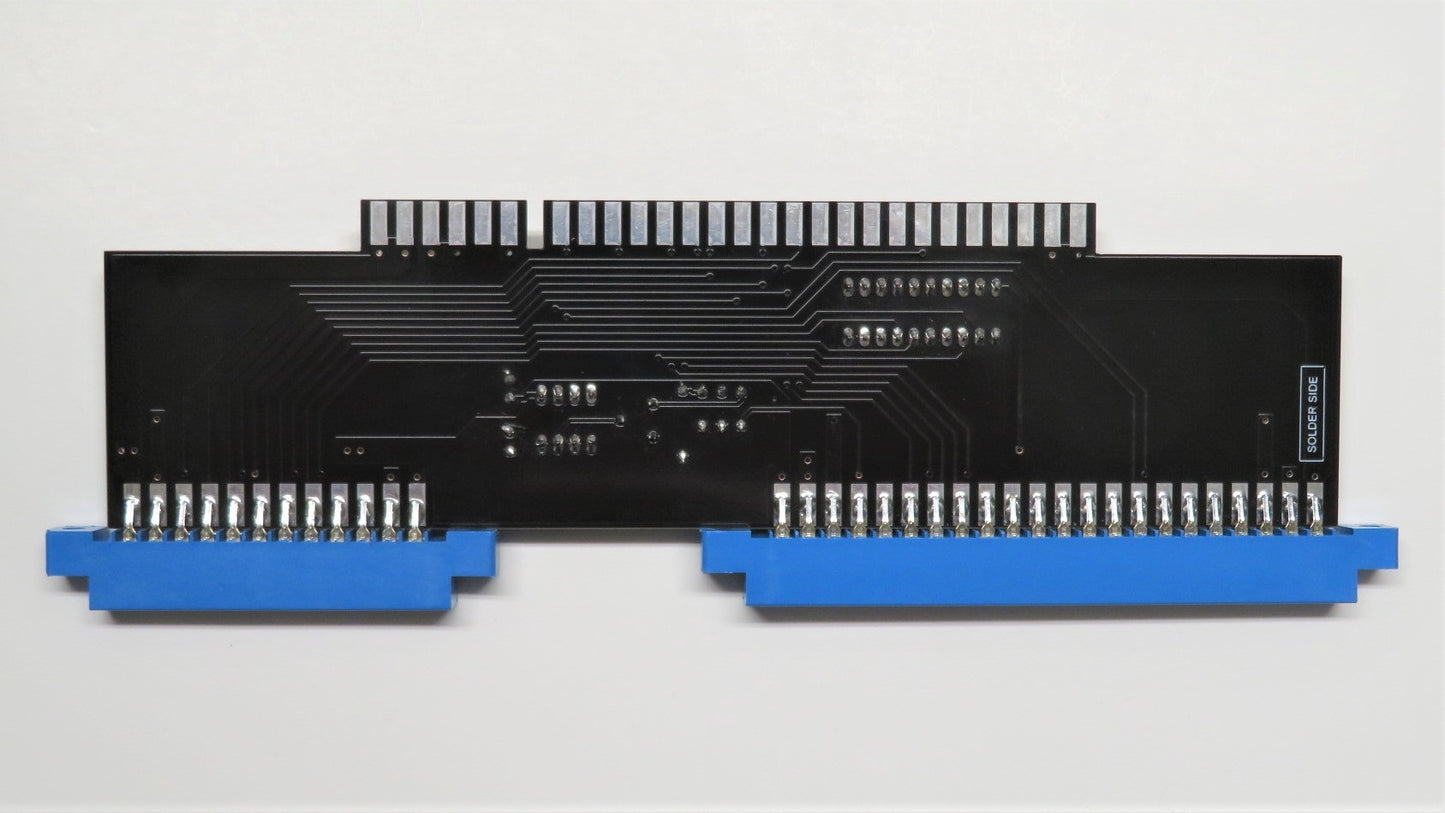

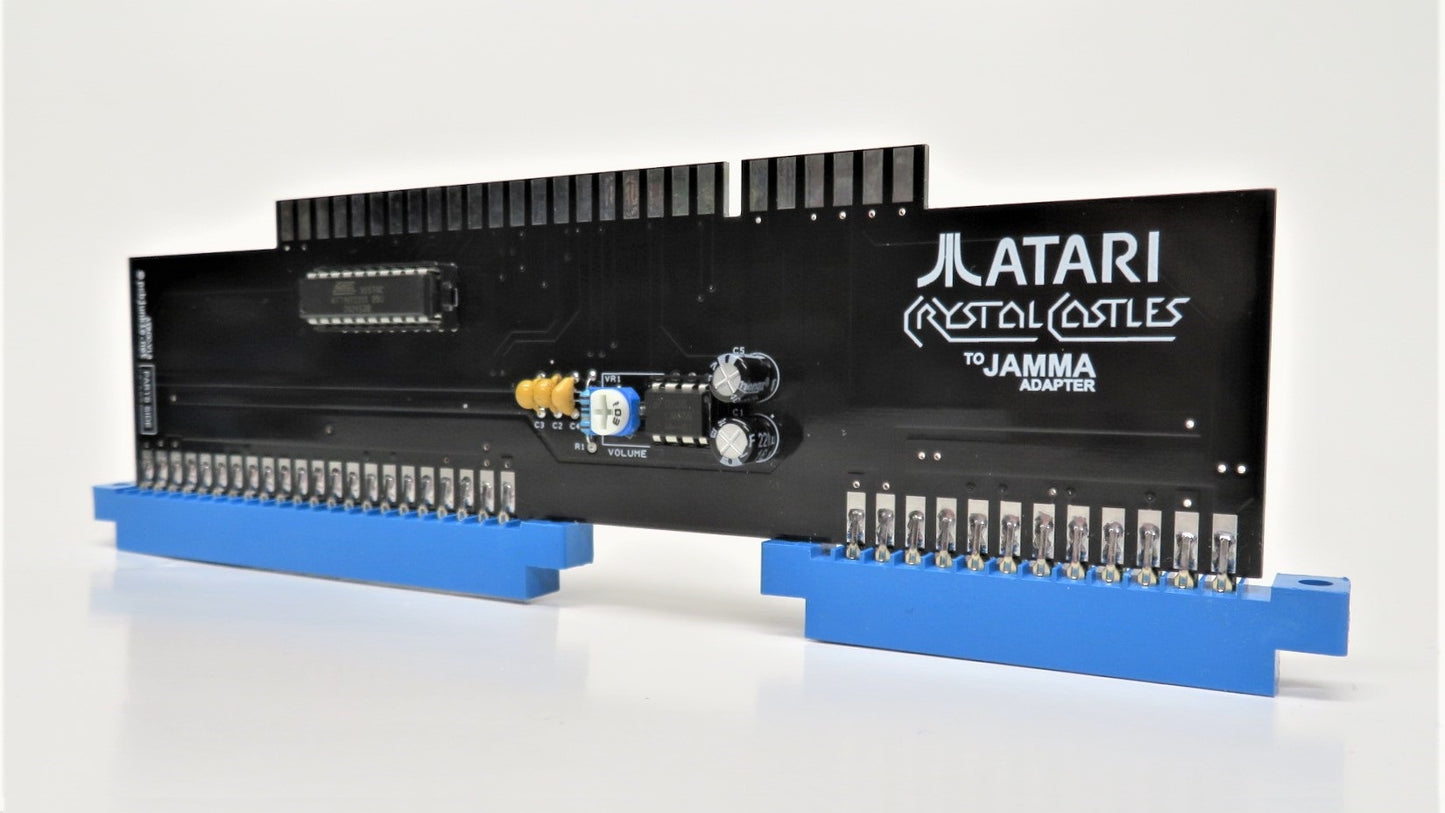

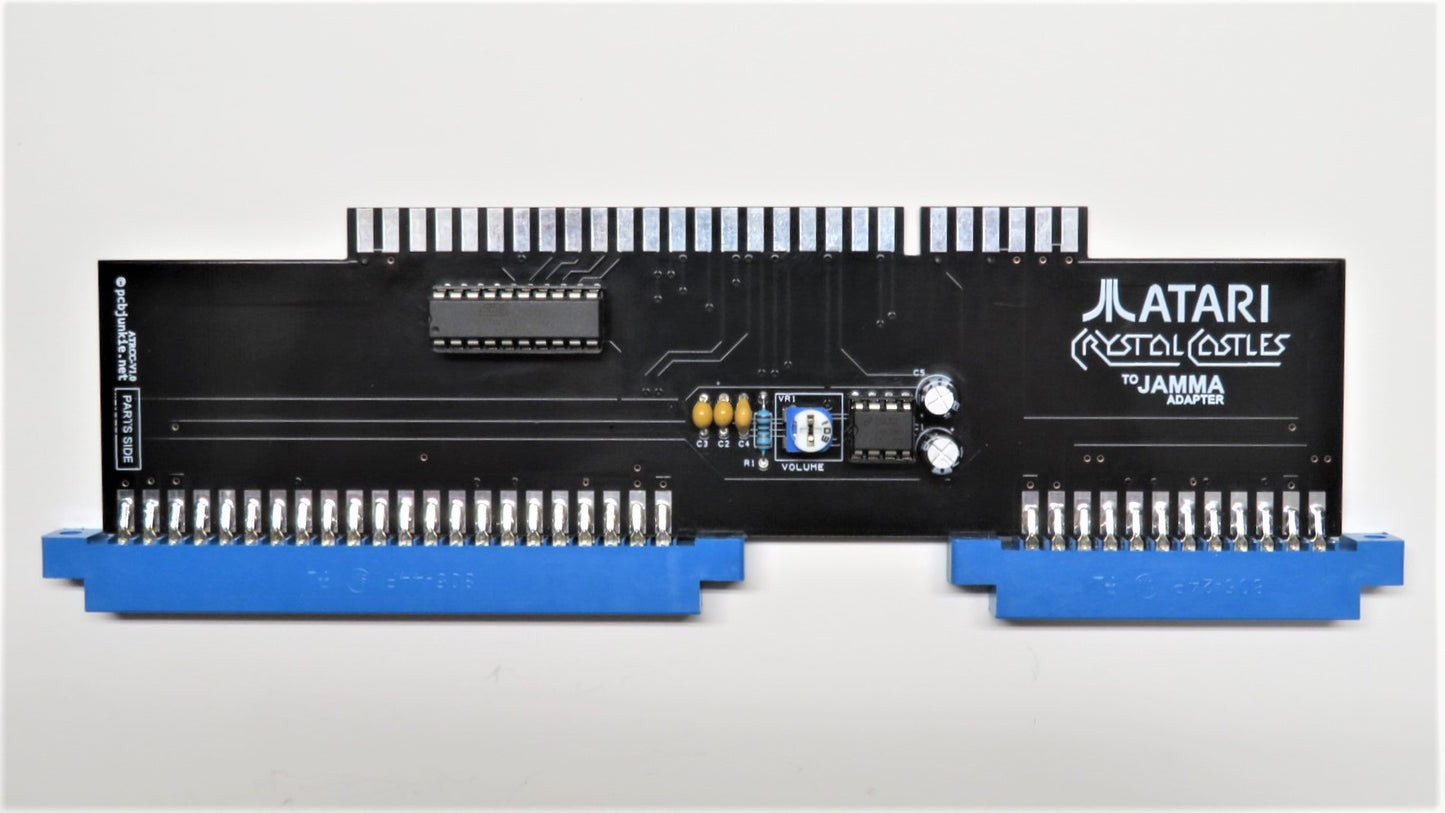

Atari Crystal Castles to JAMMA Adapter

Regular price $69.99 CAD
Regular price Sale price $69.99 CAD
Sale Sold out

Crystal Castles was Atari’s attempt at an isometric adventure and exploration game, unusual for the arcade setting at that time. Crystal Castles is one of the first games with an ending, again something that was pretty unexpected in an arcade game. While it didn’t sell nearly as many units as Centipede or Millipede, it is a great game with excellent reviews and a true classic.

As with all Atari games of that period, Crystal Castles has a unique pinout. It uses a trackball and is not capable of accepting normal joystick inputs. As a result, the adapter provides a micro-controller based trackball emulation circuitry which allows for JAMMA joystick controls.

Game Compatibility

This is the list of compatible games that can be used with this adapter:

Important: This adapter does not work with the two board version of the game.

Pinout

Main Connector (44 pin)
SOLDER SIDE PARTS SIDE
GND GND
+5V +5V
+12V (10.3V) NC
AUDIO2 AUDIO1
HSYNC NC
CSYNC VSYNC
VGREEN VGND
VBLUE VRED
NC NC
NC NC
NC NC
NC NC
NC NC
TRBLGT NC
COUNT2 COUNT1
NC NC
NC NC
NC NC
NC NC
NC +12V (+10.3V)
+5V +5V
GND GND



Secondary Connector (24 pin)
SOLDER SIDE PARTS SIDE
GND GND
+5V +5V
NC P2START/B1
COIN1 NC
SVC COIN2
TEST P1START/B1
VCLK VDIR
HCLK HDIR
NC NC
NC NC
+5V +5V
GND GND

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
