Atari Cloak & Dagger to JAMMA Adapter
Couldn't load pickup availability

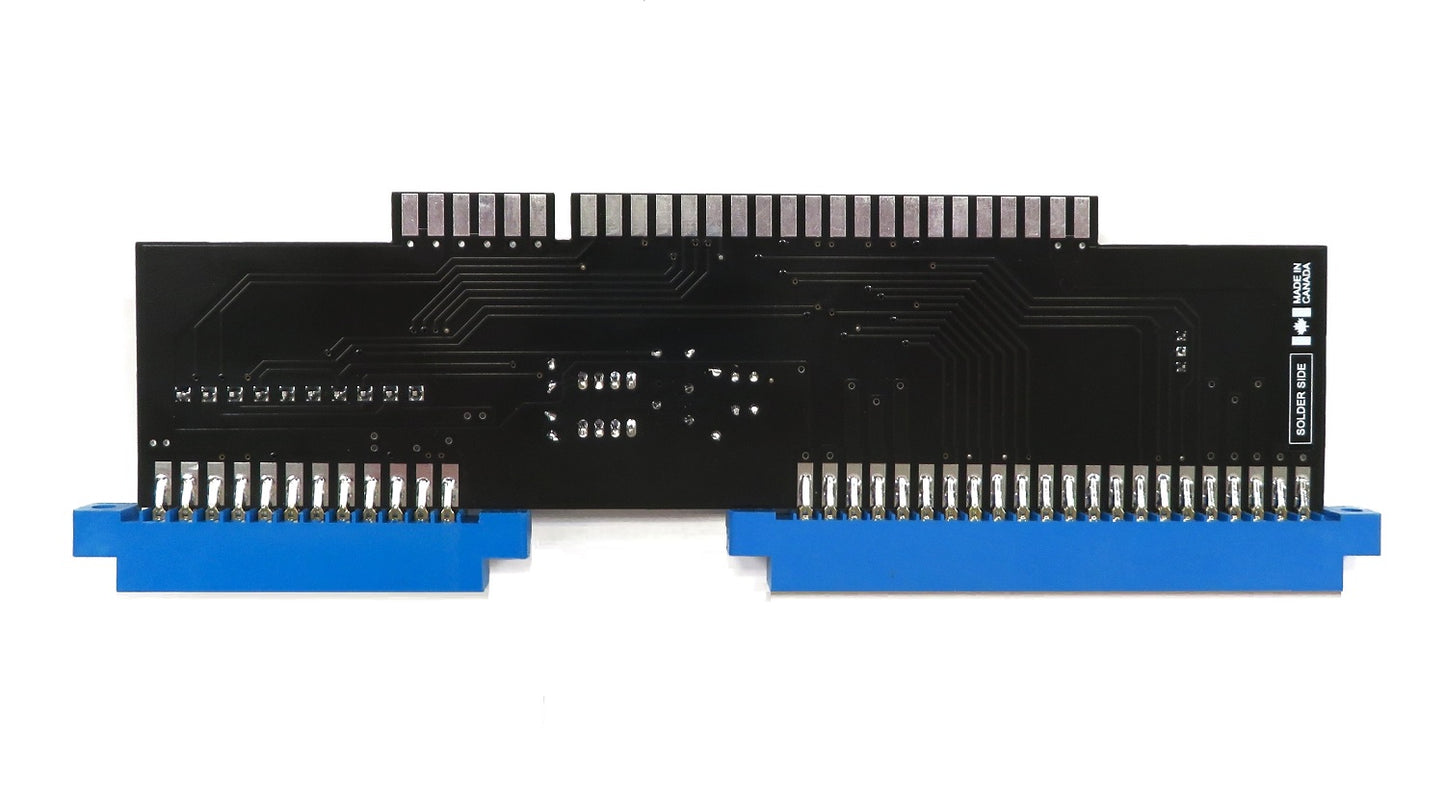

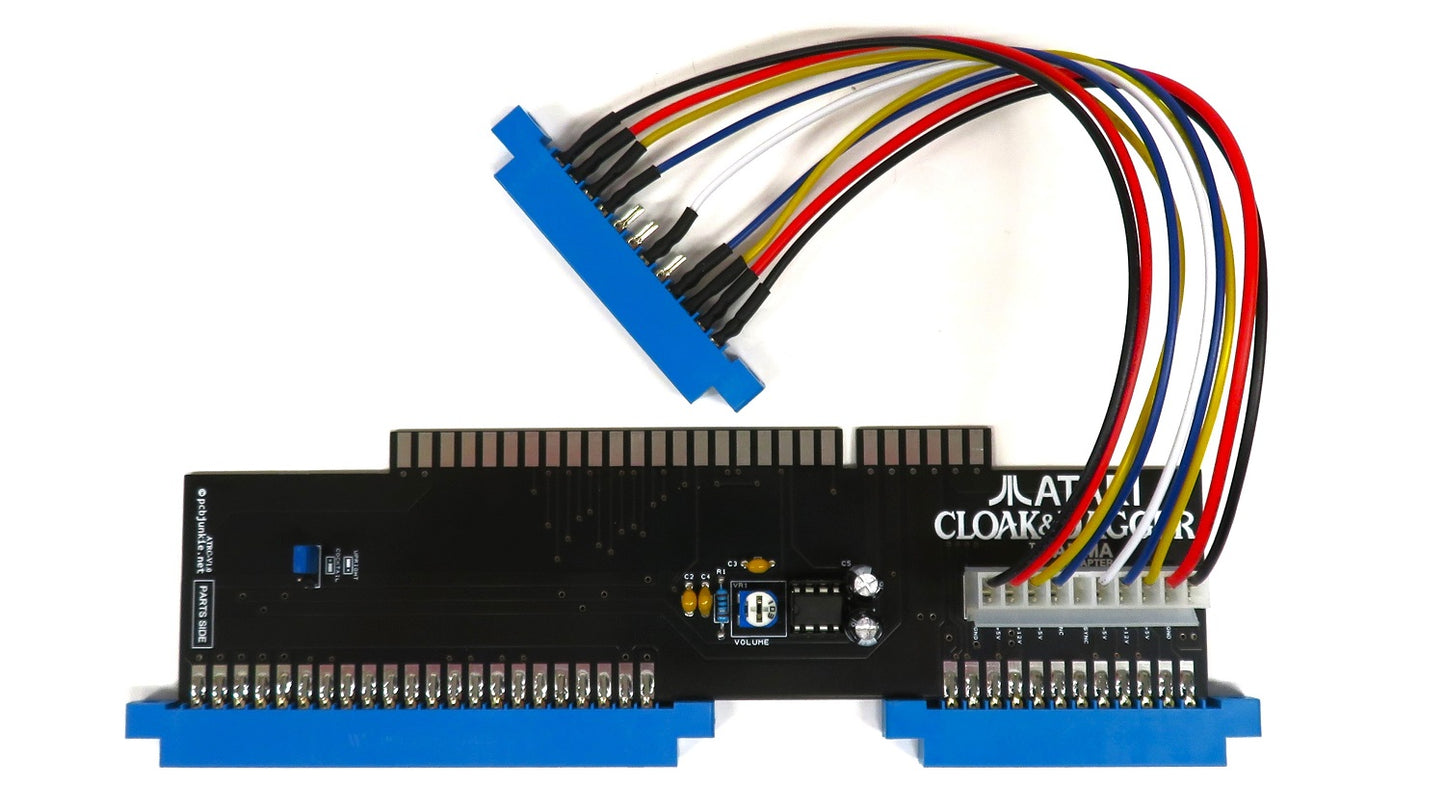

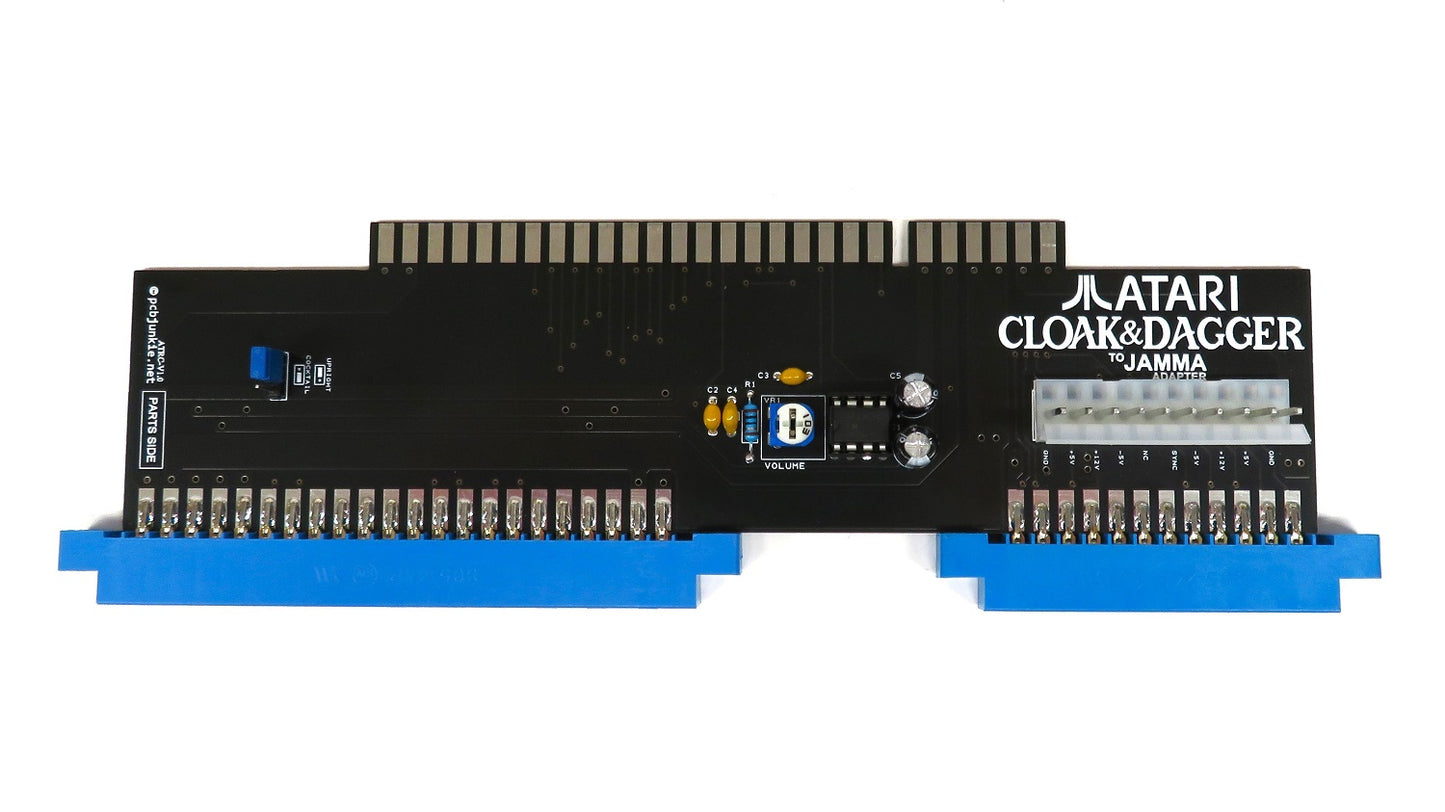

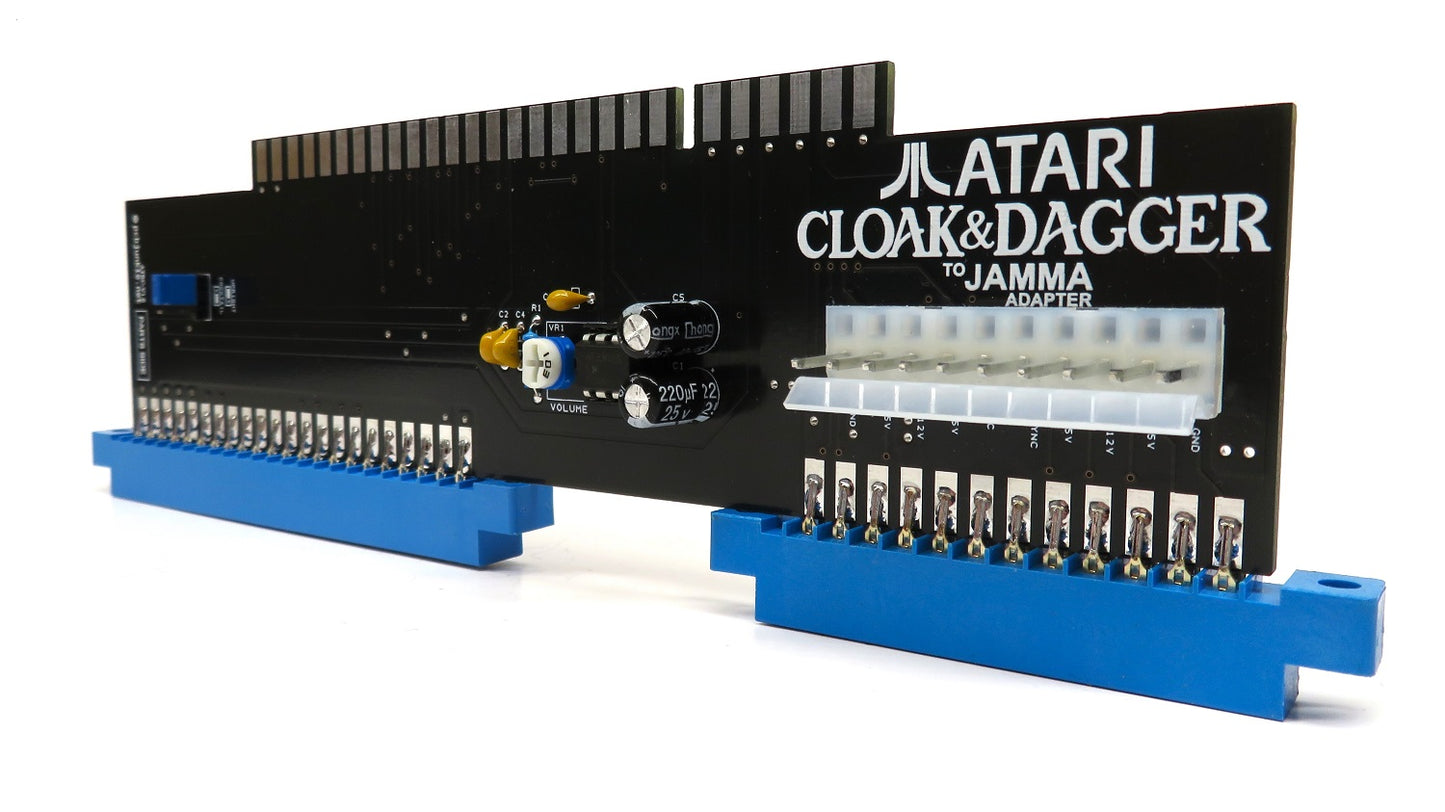

Allows you to connect and play your Atari Cloak & Dagger or Agent-X PCB to a JAMMA cabinet or supergun.
Cloak & Dagger was released by Atari in 1984 as a tie in to the movie of the same title. The game initially started off as Agent-X and was reworked slightly for the movie. Both games exist as dedicated machines, and run on the same board with minor differences, Agent-X having a considerably smaller production numbers.
The original game uses two joysticks, similar to the control scheme of games like Robotron 2084, however it requires one additional button. For this reason, this adapter uses both player 1 and player 2 JAMMA joysticks as well as player 1 button 1, and is not suitable for cabinets that only have 1 joystick present.
Both Agent-X and Cloak & Dagger can be converted with this adapter.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a genuine version of Atari Agent-X board.
Important: This adapter requires a JAMMA setup with 2 joysticks, one for each player.
Pinout
Pinout
Main Connector (44 pin)
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| +5V | +5V |
| +12V | NC |
| -5V | NC |
| +12V | NC |
| NC | NC |
| P1LUP | P1LRIGHT |
| P1RLEFT | P1LDOWN |
| P1RUP | P1RRIGHT |
| P1LLEFT | P1RDOWN |
| P2LUP | P2LRIGHT |
| P2RLEFT | P2LDOWN |
| P2RUP | P2RRIGHT |
| P1LLEFT | P2RDOWN |
| COIN1 | COINR |
| TABLE | COIN2 |
| P2BTN1 | P1BTN1 |
| TEST | +12V |
| NC | -5V |
| NC | +12V |
| +5V | +5V |
| GND | GND |
Secondary Connector (24 pin)
| SOLDER SIDE | PARTS SIDE |
|---|---|
| START1LED | COUNT2 |
| NC | COUNT1 |
| P1START | START2LED |
| P2START | NC |
| AUD1 | NC |
| NC | NC |
| NC | NC |
| NC | NC |
| AUD2 | AGND |
| VGREEN | NC |
| VRED | NC |
| VBLUE | GND |
Power Connector (10 pin)
| PIN | FUNCTION |
|---|---|
| 1 | GND |
| 2 | +5V |
| 3 | +12V |
| 4 | -5V |
| 5 | VSYNC |
| 6 | NC |
| 7 | -5V |
| 8 | +12V |
| 9 | +5V |
| 10 | GND |
Dimensions
Dimensions
