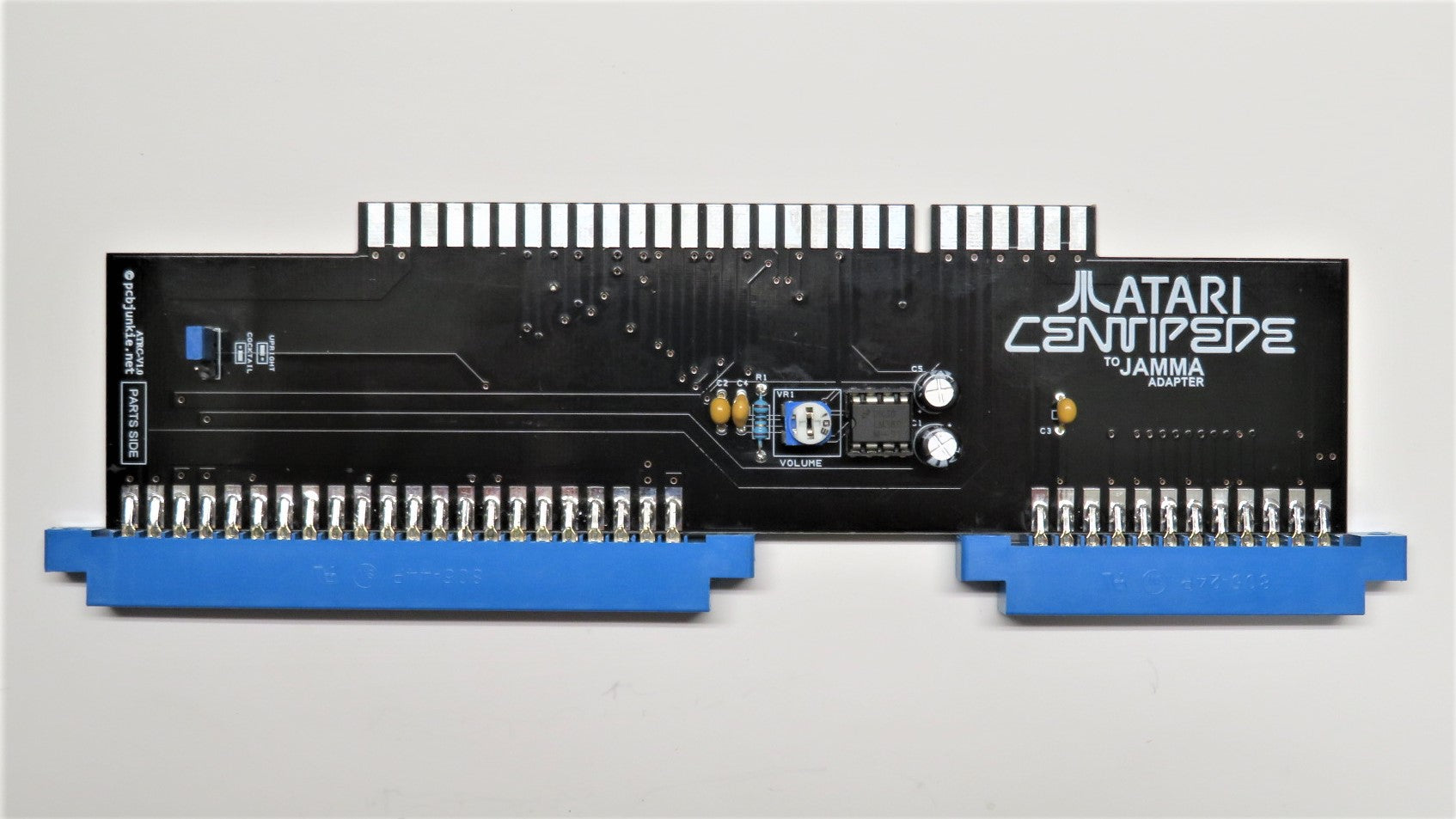

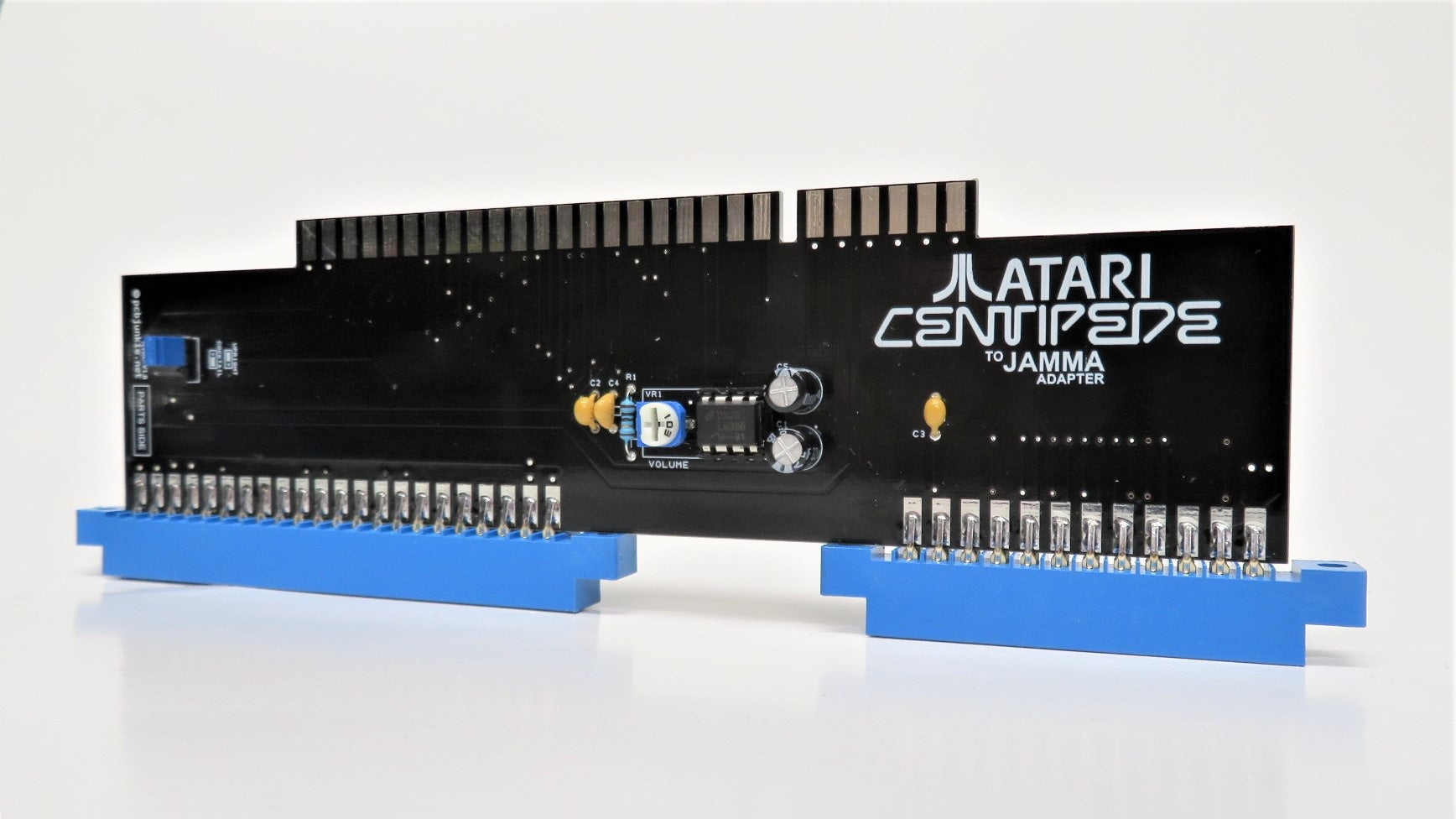

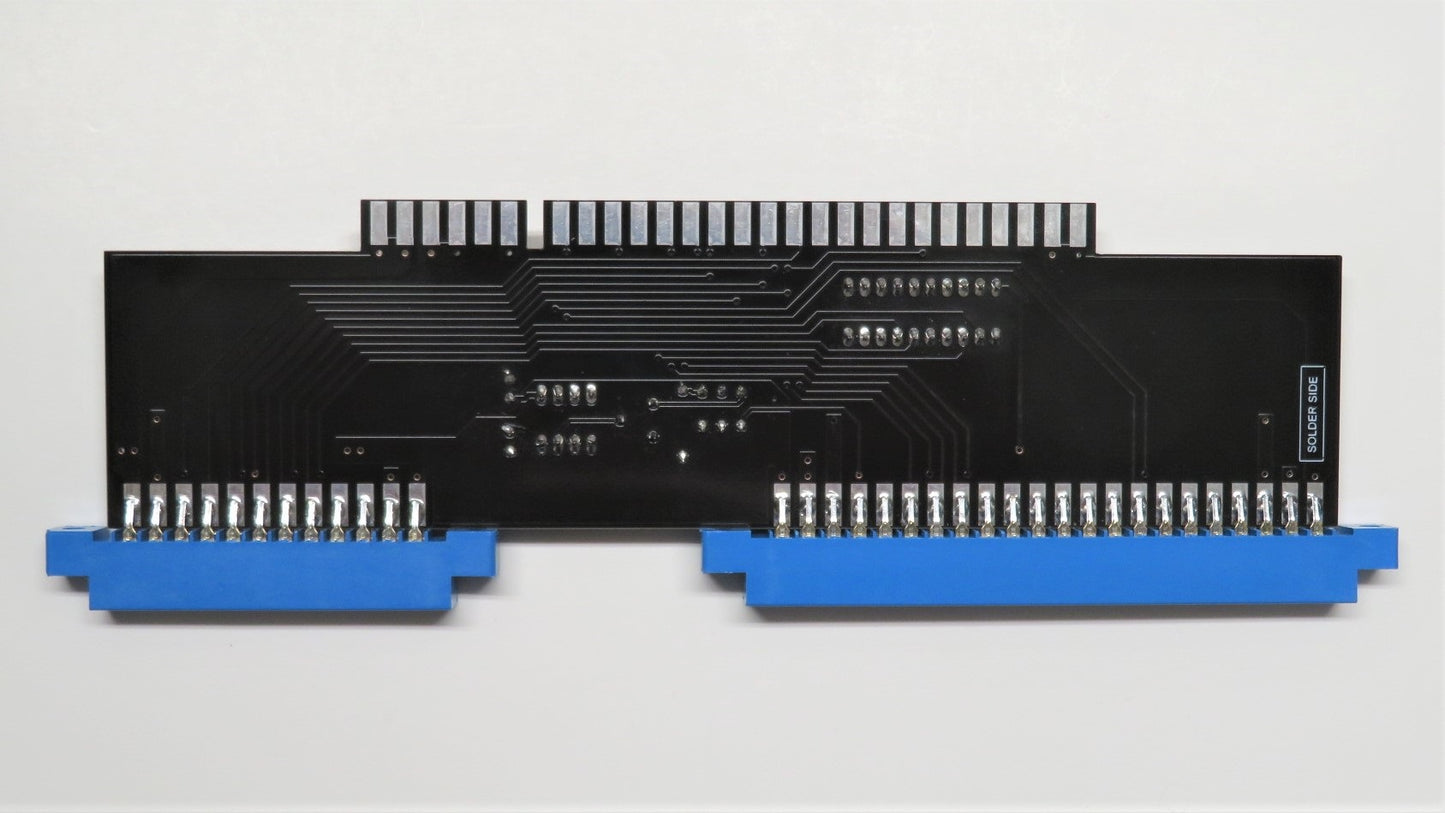

Atari Centipede to JAMMA Adapter

Regular price $54.99 CAD
Regular price Sale price $54.99 CAD
Sale Sold out

Centipede was Atari’s another massive arcade hit and an instant classic. With over 50 thousand total games produced, it was one of the most commercially successful games from the golden age of arcades.

As with all Atari games of that period, Centipede has a unique pinout. While the original game uses a trackball, the game itself is capable of accepting normal joystick inputs, greatly simplifying the conversion to JAMMA. The joystick and button controls are buggy and do not work properly in cocktail mode with some board revisions.

Game Compatibility

This is the list of compatible games that can be used with this adapter:

Pinout

Main Connector (44 pin)
SOLDER SIDE PARTS SIDE
GND GND
+5V +5V
NC NC
NC NC
P1VDIR RESET
P2VDIR P1HDIR
P2HDIR NC
COCKTAIL TILT
COIN2 COIN1
TEST P1VCLK
P2VCLK P1HCLK
P2HCLK P1START
P1FIRE P2START
P2FIRE NC
NC NC
NC NC
COUNT2 COUNT1
NC NC
-22V -5V
+22V +12V
+5V +5V
GND GND

Secondary Connector (24 pin)

SOLDER SIDE PARTS SIDE
VSYNC GND
NC NC
NC NC
VBLUE VRED
VGREEN P2DOWN
P2RIGHT P2UP
P2LEFT P1DOWN
P1RIGHT P1LEFT
P1UP NC
NC NC
AUDIO1* NC
AUDIO2 NC

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
