Astro Invader to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Astro Invader arcade board in a JAMMA cabinet or a super gun device.
Astro Invader began as Kamikaze, an early shoot’em up from 1979, originally developed by Konami and released only in Japan. The game was then licenced out to Stern Electronics who published it outside of Japan renaming it to Astro Invader. Astro Invader was Stern’s first video game release.
This game consists of several small boards in a small metal cage with a common backplane. The sound/control board, the video board and the backplane boards have their own separate connectors.

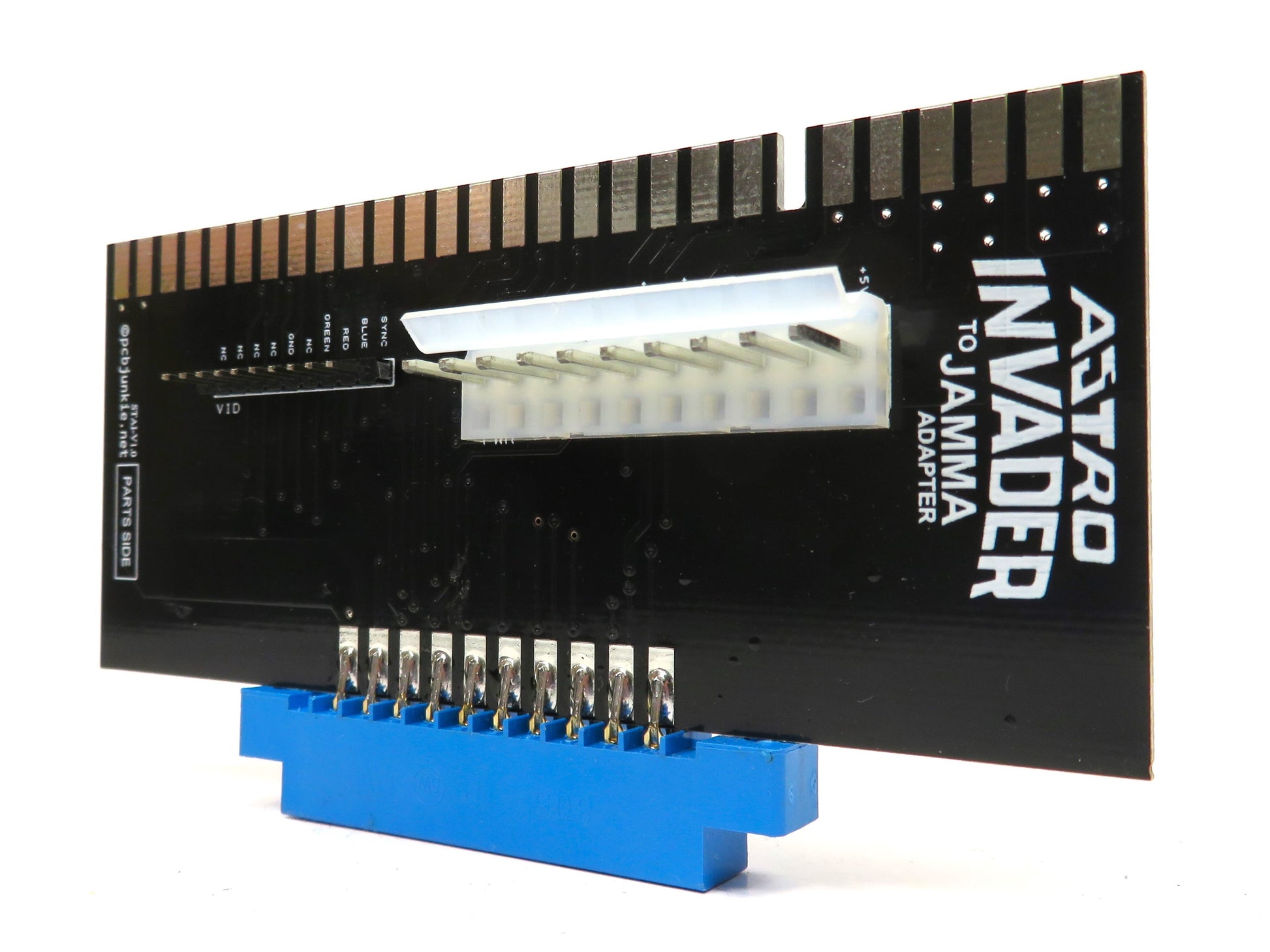

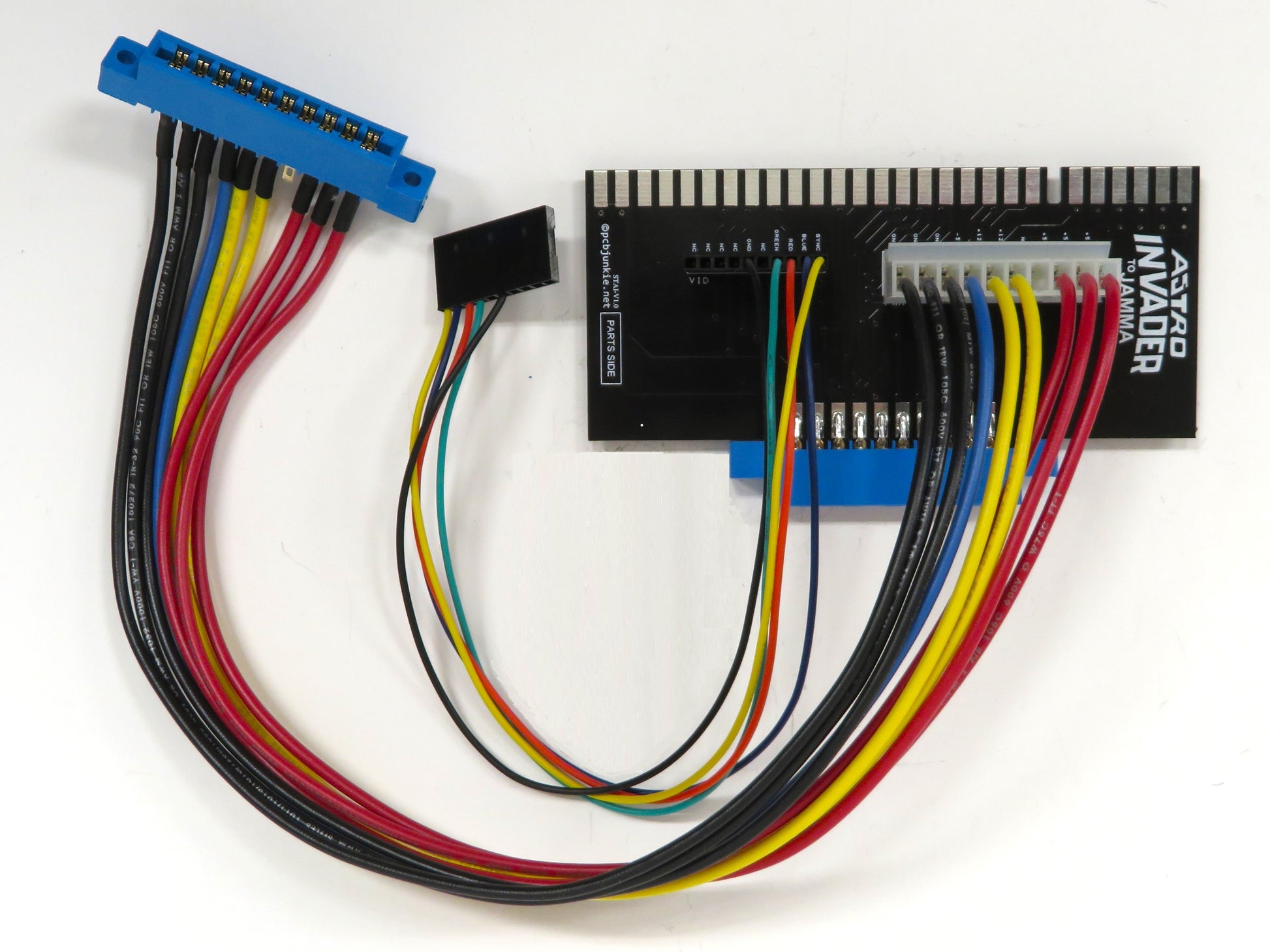

The adapter connects directly to the sound/contol board, and includes additional wire harnesses for backplane power, and video.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
This adapter has been tested with a genuine Stern Astro Invader boardset for compatibility.
Pinout
Pinout
This adapter follows the following pinout scheme:
Main Connector

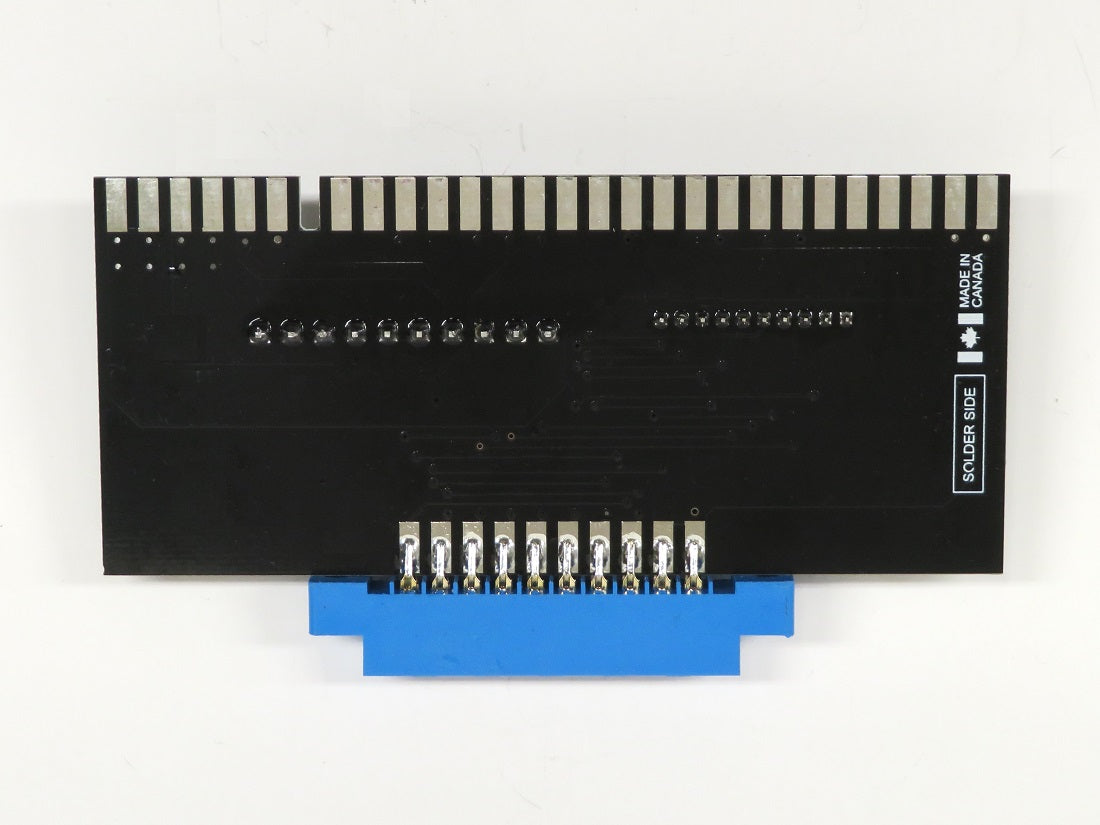

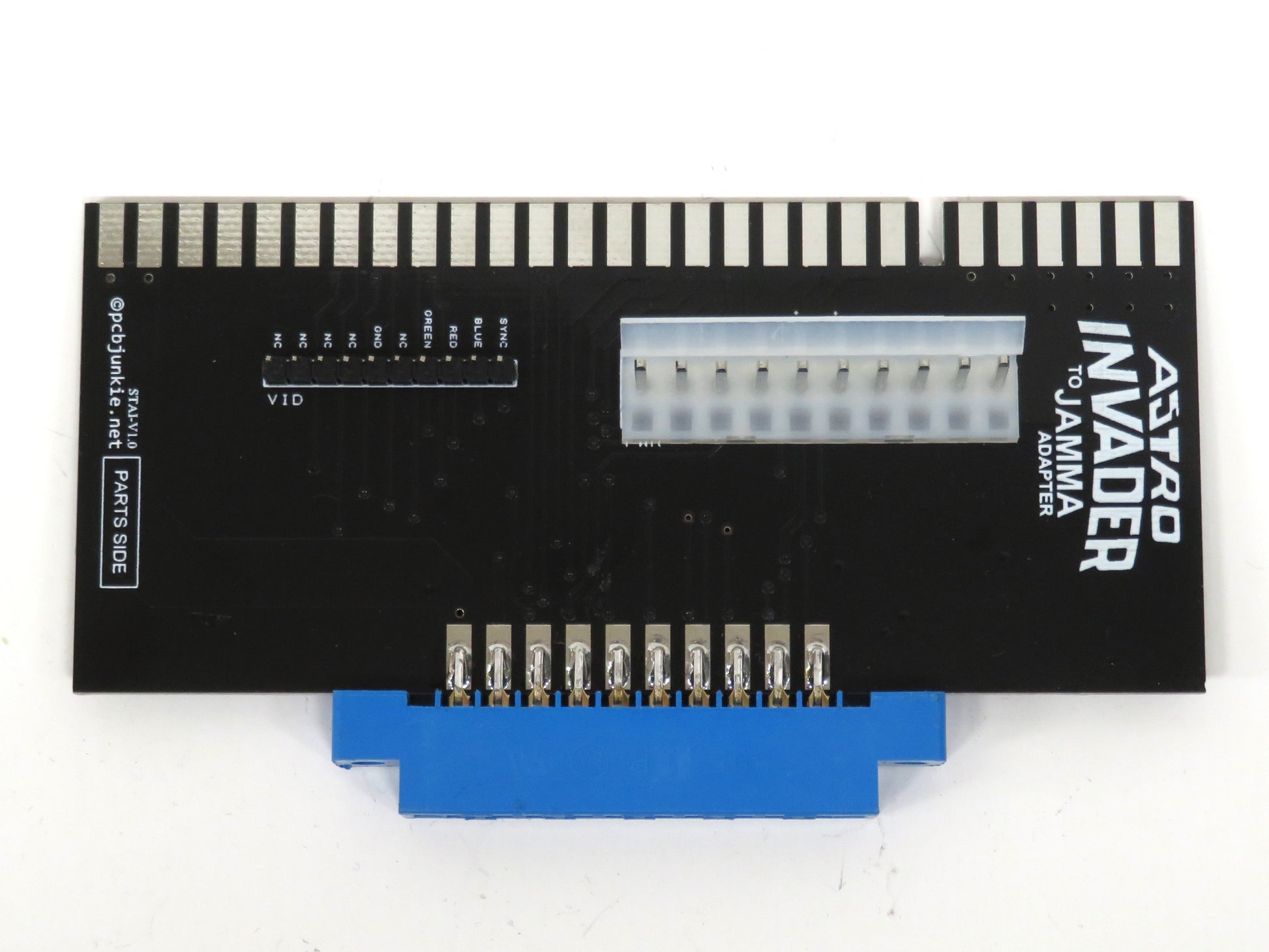

| SOLDER SIDE | PARTS SIDE |
|---|---|
| P2START | COIN1 |
| P1START | SVC |
| P1B1 | CNT12V |
| P1LEFT | COUNT1 |
| P1RIGHT | NC |
| P2B1 | NC |
| P2LEFT | SPK1 |
| P2RIGHT | SPK2 |
| AGND | +12V |
| GND | GND |
Power Connector
| PIN | FUNCTION |
|---|---|
| 1 | +5V |
| 2 | +5V |
| 3 | +5V |
| 4 | NC |
| 5 | +12V |
| 6 | +12V |
| 7 | -5V |
| 8 | GND |
| 9 | GND |
| 10 | GND |
Video Connector
| PIN | FUNCTION |
|---|---|
| 1 | VSYNC |
| 2 | VBLUE |
| 3 | VRED |
| 4 | VGREEN |
| 5 | NC |
| 6 | VGND |
| 7 | NC |
| 8 | NC |
| 9 | NC |
| 10 | NC |
PCB edge connector facing away, list is ordered right to left.
