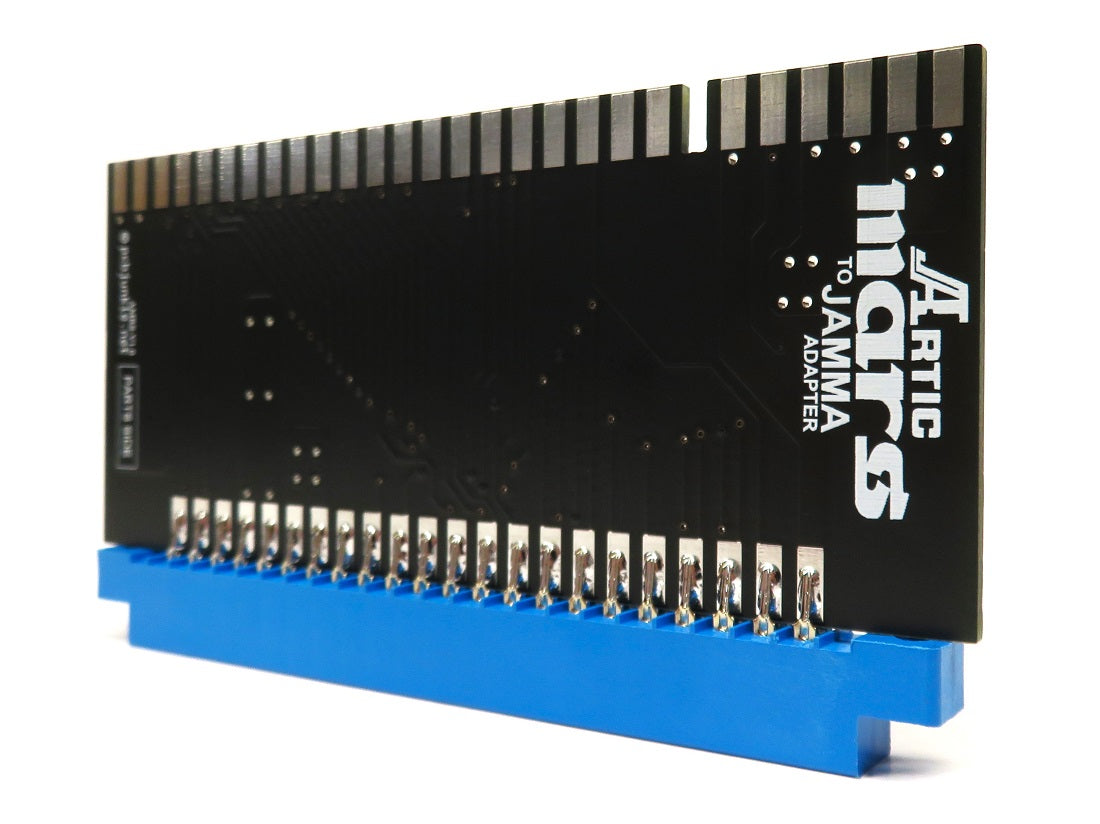

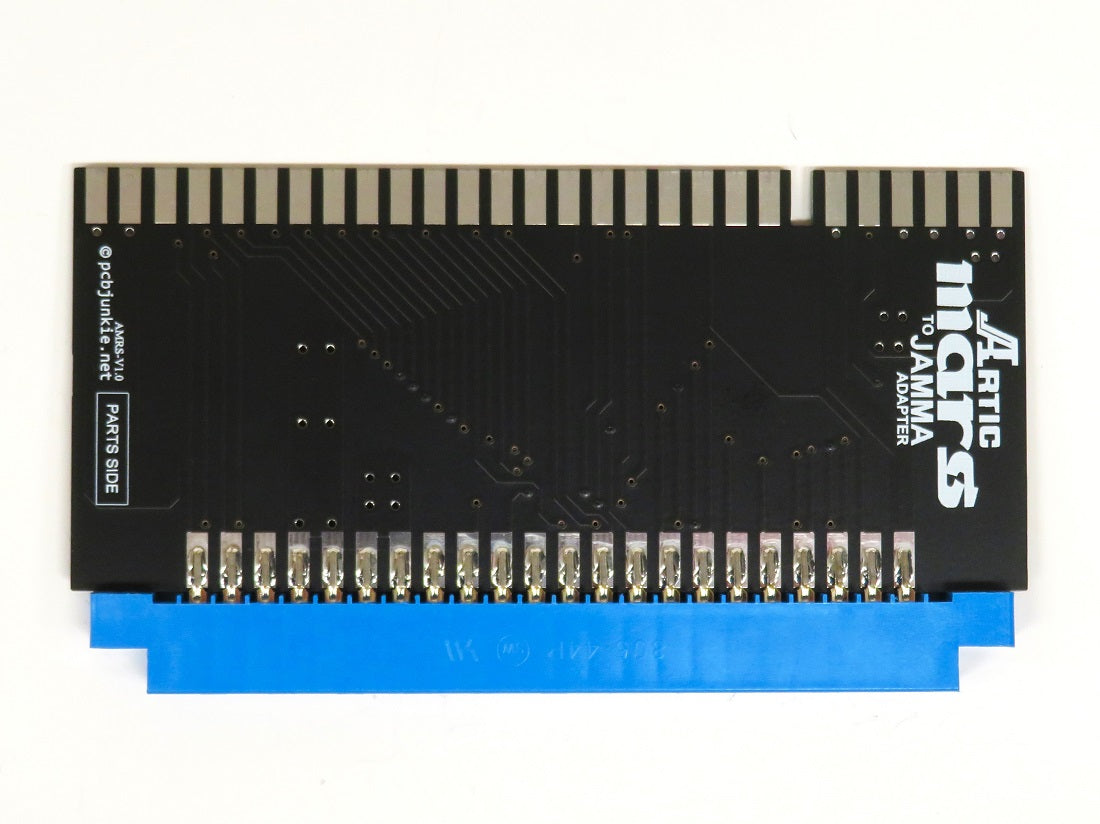

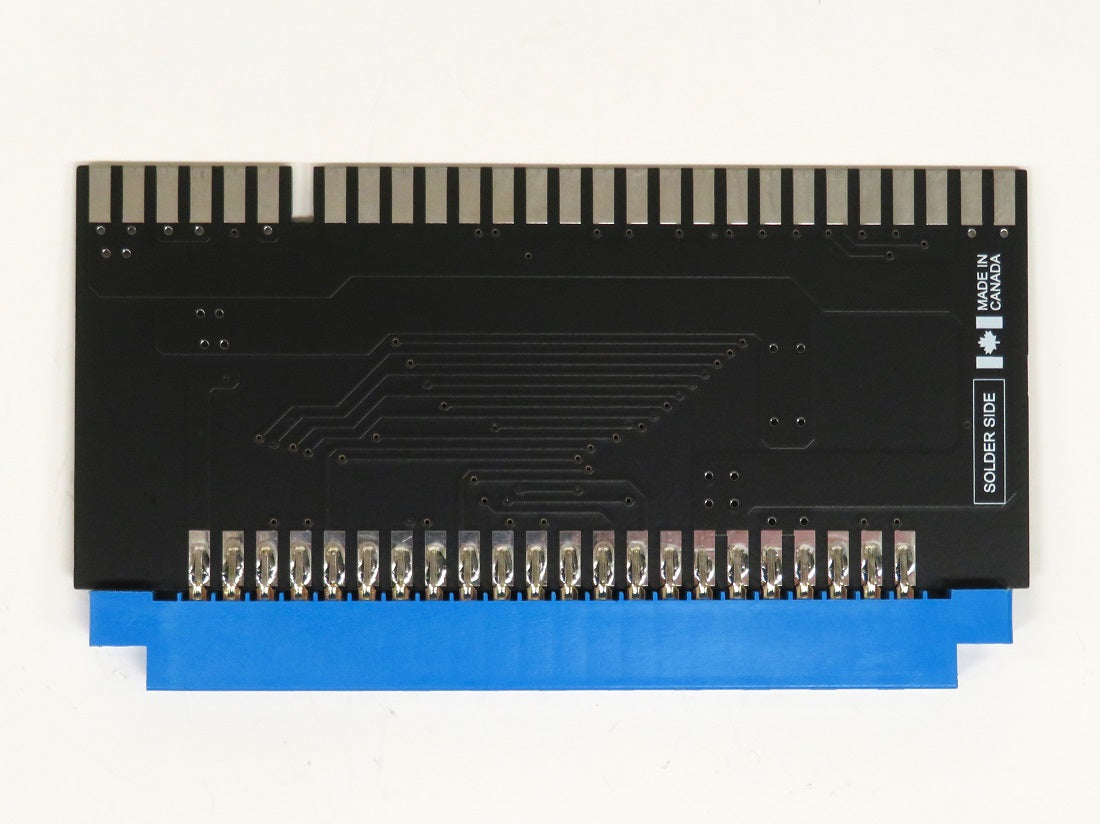

Artic Mars to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Artic Mars pre-JAMMA arcade game board, in a JAMMA cabinet or a super gun device.
Artic, was a company mainly known for bootlegging early 80s games and their Galaxian based Multi-System platform that allowed games to be swapped in and out, by changing a ROM card on the main PCB. In addition to bootlegs, Artic also developed a number of unique, arguably less memorable games.
While most of Artic’s games run on their Multi-System platform which uses Galaxian’s pinout and DC voltages, some of Artic’s games ran on their own, in-house designed hardware which is more functionally similar to Scramble.
One of these games is Mars, a horizontal shooter that borrows a lot of the game mechanics from Scramble, including the constantly scrolling mountain / cavern terrain and fuel consumption, but replaces bombs with the ability to fire in all 8 directions.
Mars uses two joysticks per player to play, and supports 2 player controls in cocktail mode. This adapter therefore uses buttons 1 to 4, as second joystick controls for each player.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a genuine Artic Mars PCB.
Pinout
Pinout
SOLDER SIDE | PARTS SIDE |
---|---|
-5V | +12V |
NC (SPK-) | SPK+ |
P2B1 | P2B3 |
P2LEFT | P2RIGHT |
P1START | P2START |
NC | P2UP |
P1B1 | P1B3 |
P1RIGHT | P1LEFT |
P1UP | P2DOWN |
COIN1 | COIN2 |
P1DOWN | NC |
NC | NC |
VGREEN | VBLUE |
VRED | VSYNC |
NC | NC |
GND | GND |
GND | GND |
+5V | +5V |
+5V | +5V |
NC | NC |
P2B4 | P1B2 |
P1B4 | P2B2 |
Dimensions
Dimensions
Board Size: 50mm x 112mm
Weight: 50g
