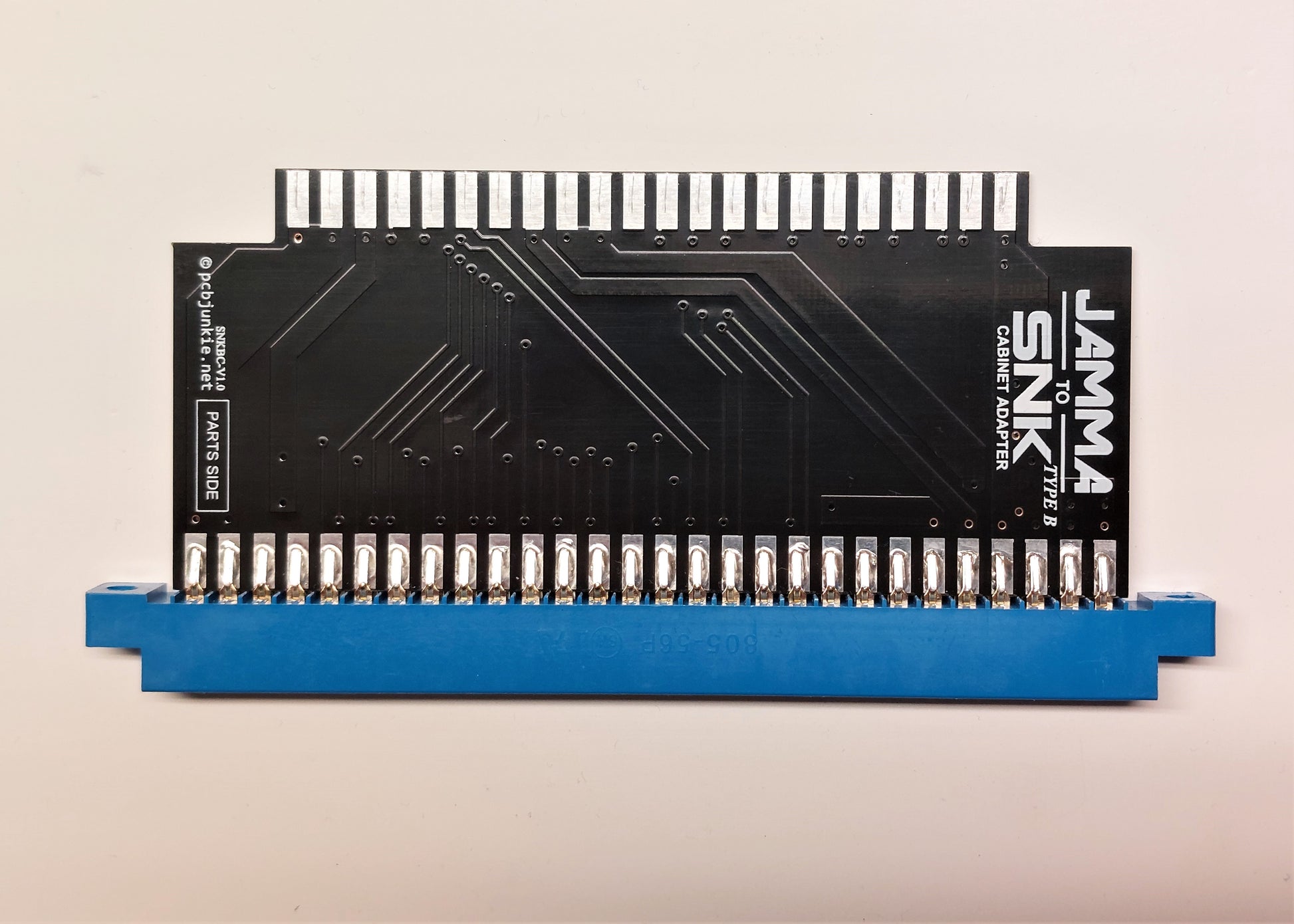

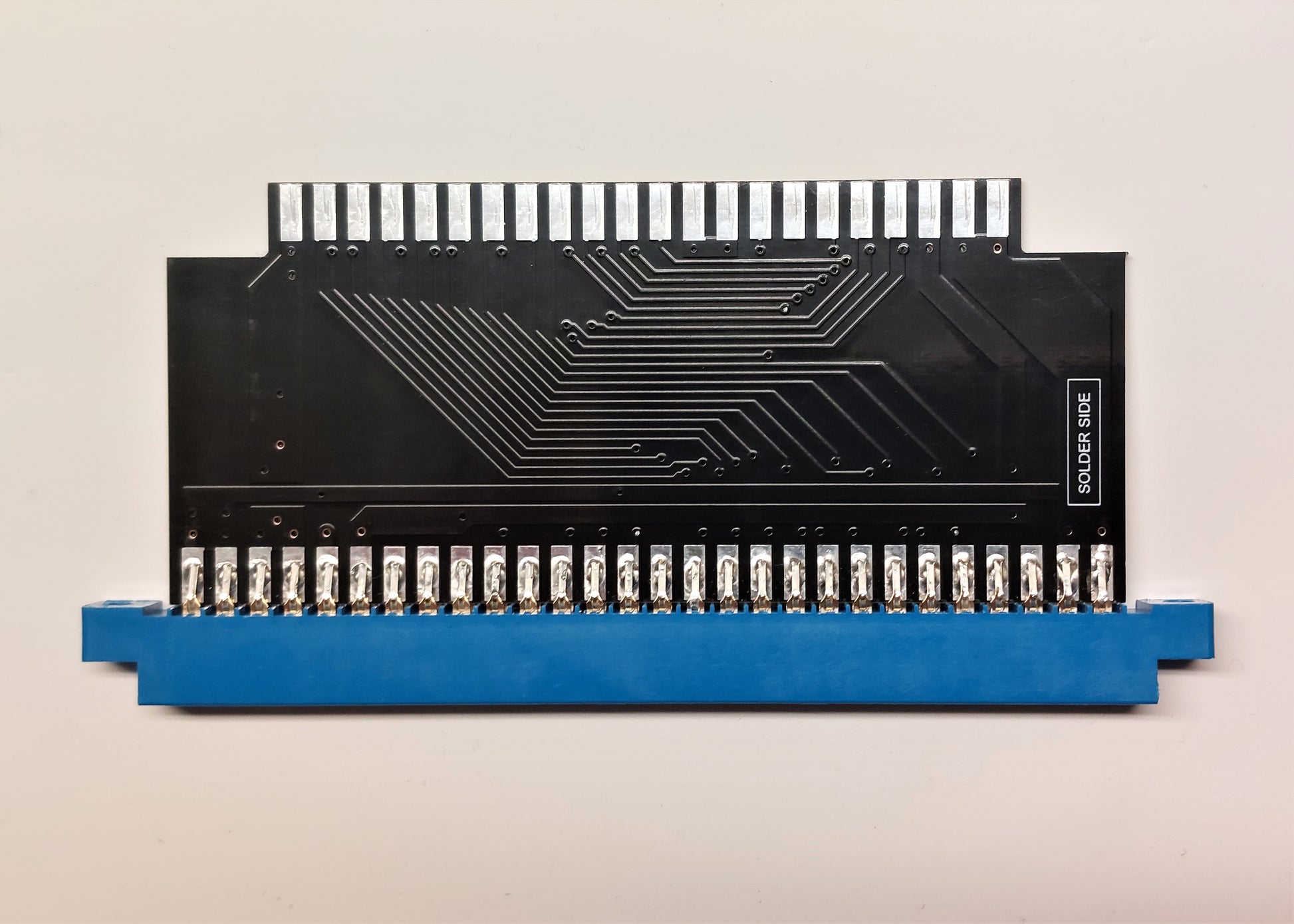

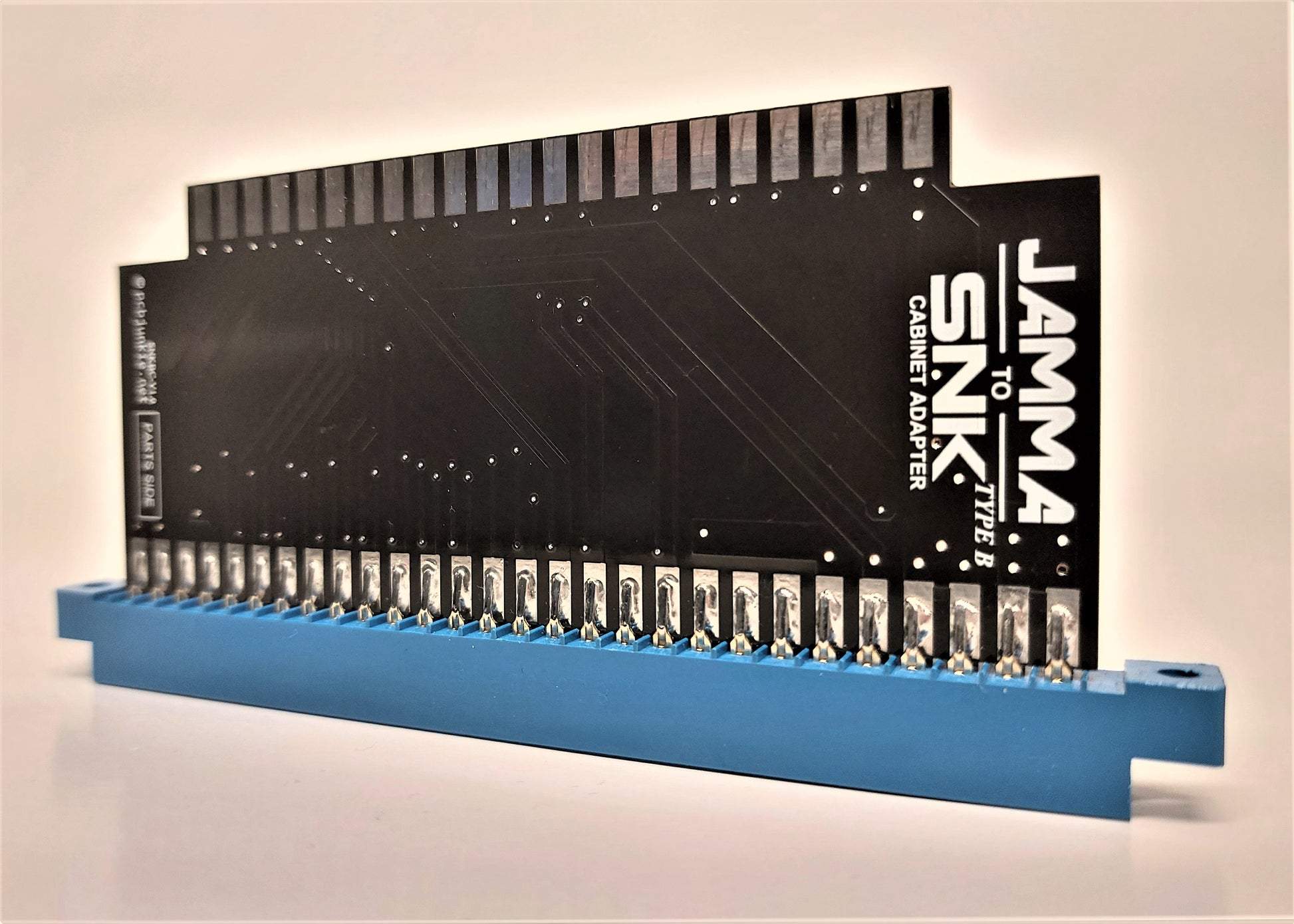

JAMMA to SNK Type B Cabinet Adapter
Allows you to play your JAMMA games in a SNK (type B) cabinet or a cabinet wired according to that conversion class. This adapter will play JAMMA games with up to 3 buttons.
Cabinet Compatibility
Cabinet Compatibility
This is the list of games that should be compatible with this adapter:
Voltages
Voltages
All voltages are available when using this adapter.
Inputs and Outputs
Inputs and Outputs
In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than 3 buttons.
Also, cabinets that use rotary joysticks may not be wired or work correctly with JAMMA games.
Some SNK game cabinets use different button mappings. Games that use 2 buttons may use JAMMA buttons 1 and 2 (Ikari Warriors), or buttons 2 and 3 (Alpha Mission and others).
If the button order is wrong you may need to swap the wires going to the buttons behind the control panel.
Pinout
Pinout
SOLDER SIDE | PARTS SIDE |
---|---|
+5V | +5V |
COIN1 | COIN2 |
SVC | TEST |
P1START | P2START |
P1UP | P1DOWN |
P1LEFT | P1RIGHT |
P1B1 | P1B2 |
P1B3 | NC |
P2UP | P2DOWN |
P2LEFT | P2RIGHT |
P2B1 | P2B2 |
P2B3 | NC |
GND | GND |
GND | GND |
-5V | -5V |
NC | NC |
VSYNC | VBLUE |
VGREEN | VRED |
SPK+ | SPK- |
+12V | +12V |
GND | GND |
GND | GND |
Dimensions
Dimensions
Board Size: 50mm x 112mm
Weight: 50g
