8 Liner to JAMMA Adapter
Couldn't load pickup availability

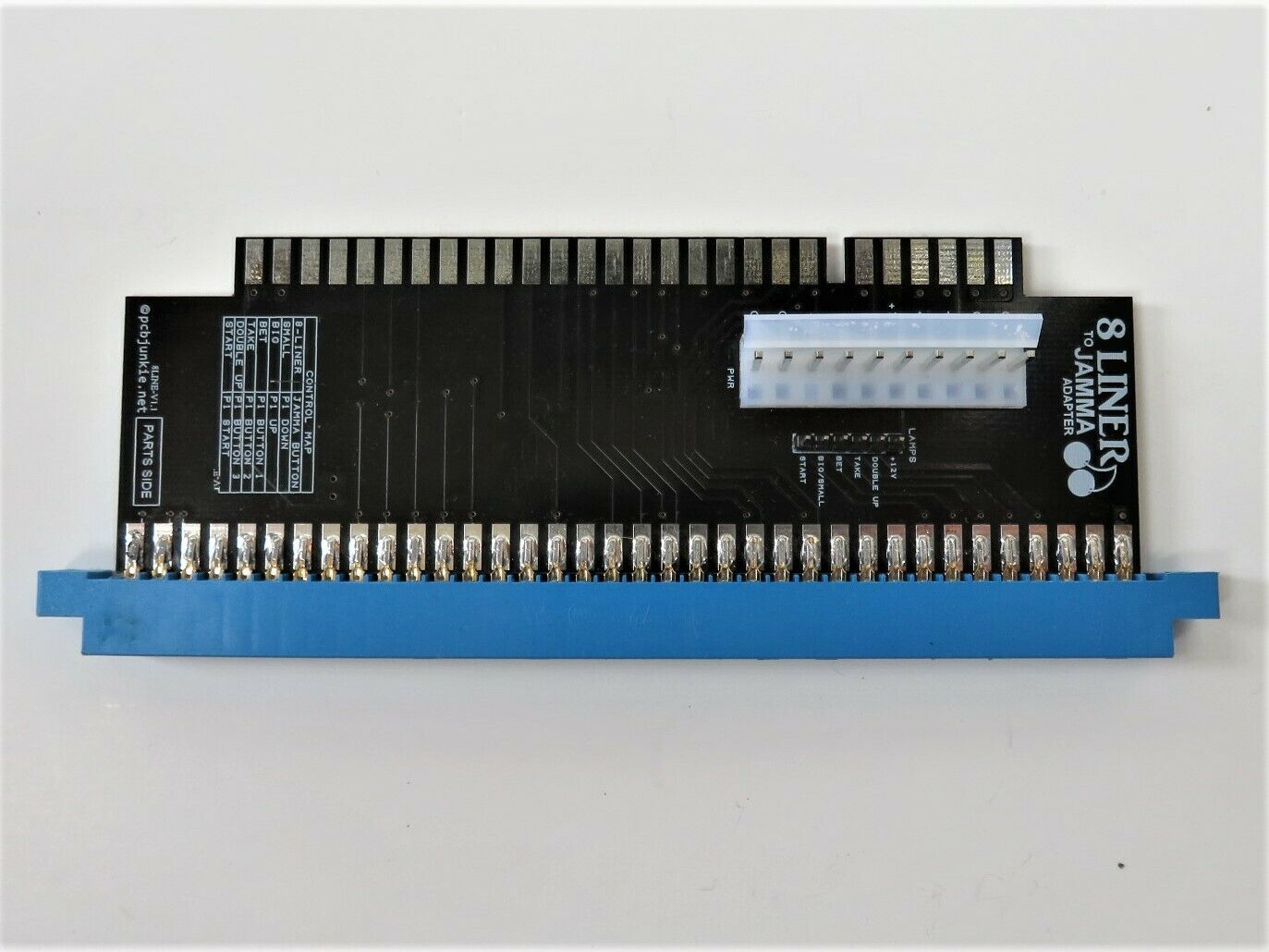

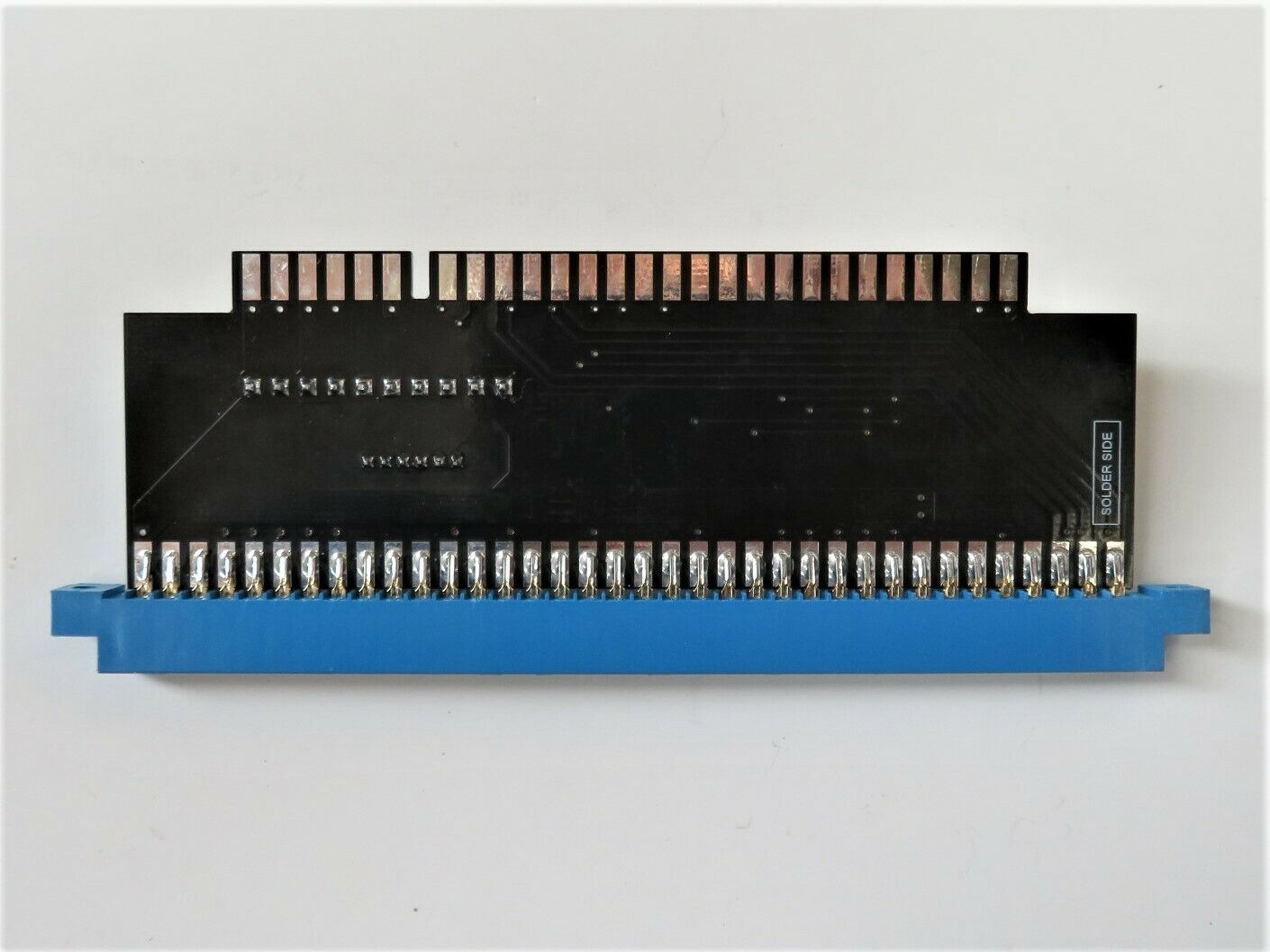

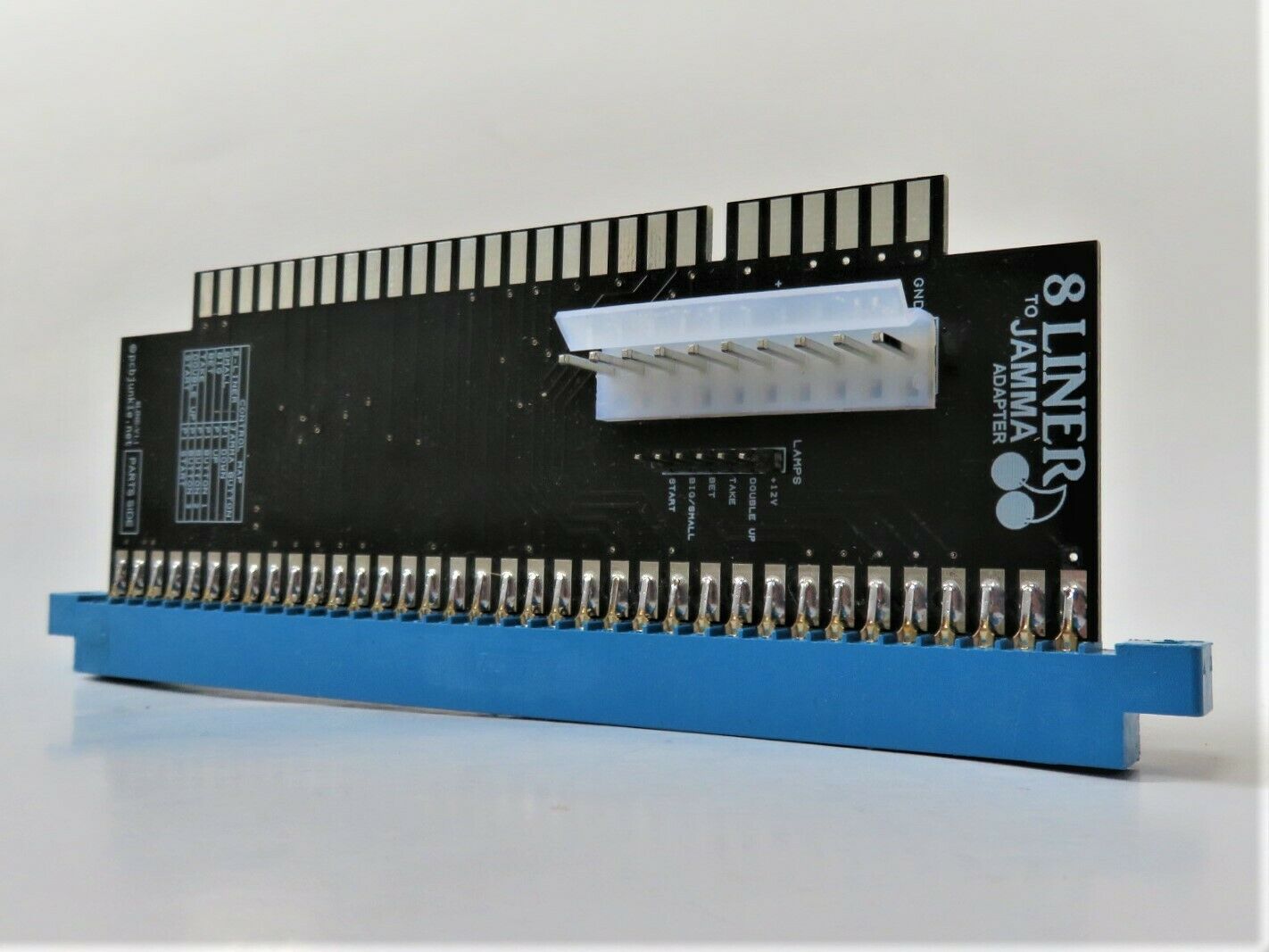

Allows you to play your 8 liner, video slots, video poker, or games of similar nature in a JAMMA cabinet or a supergun device.
Games of this type use a somewhat standardized 72 pin edge connector for controls and video and audio output along with a 20 pin power edge connector. These games are also known as Pot of Gold (POG) or Cherry Master type games.

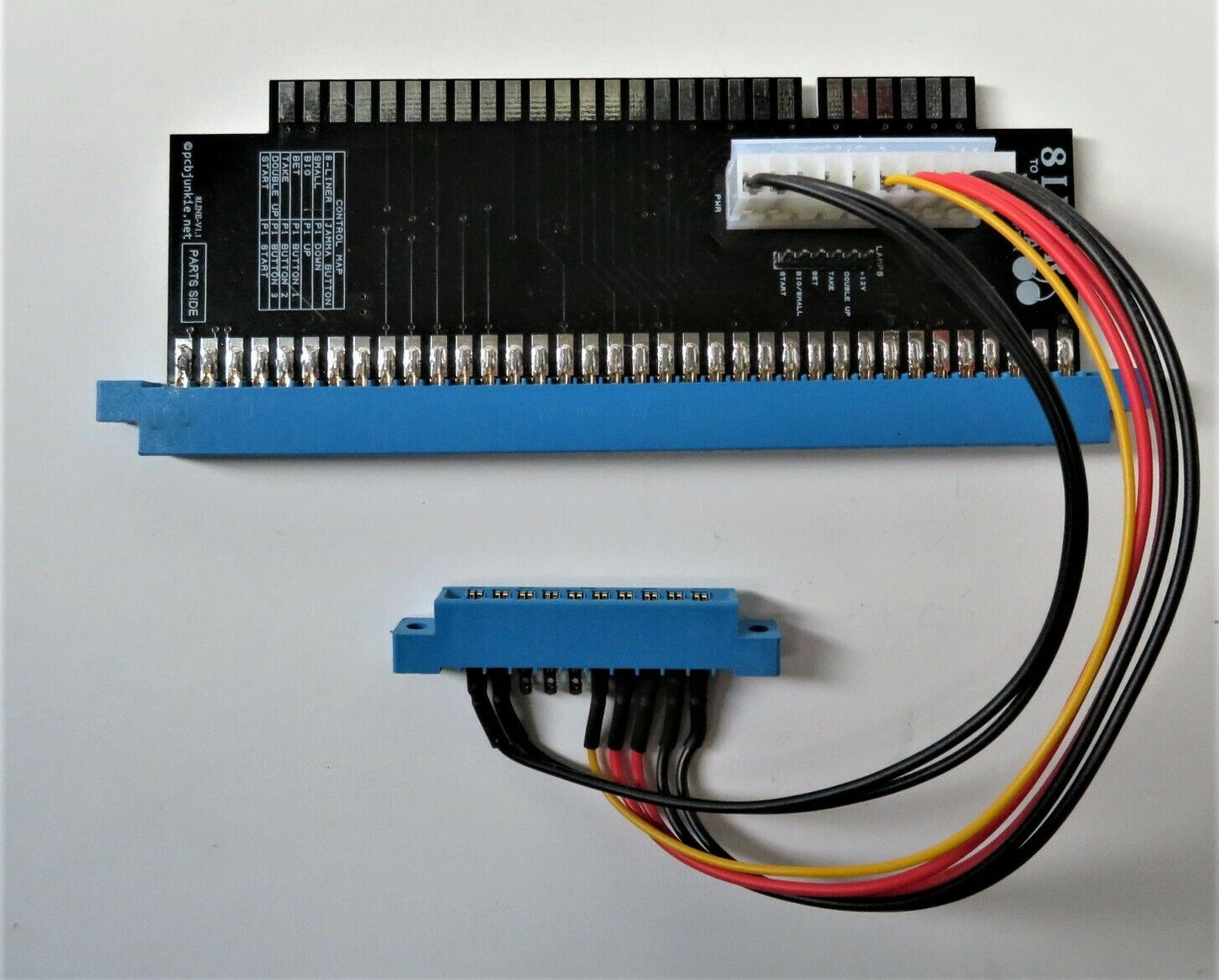

This adapter includes the required 20 pin power connector and wire harness and features a 12V lamp header along with a control map for providing 8 liner specific functions via the typical JAMMA controls.
Please note that this adapter is not suitable for gambling and redemption environments. The adapter does not provide wiring or headers for payout and complex coin or bill acceptor system functions.
Game Compatibility
Game Compatibility
This adapter should be compatible with 8 liner type games that are compatible wih the pinout listed above. The adapter has been tested with dozens of similar games from different manufacturers including:
- Cherry Master
- Lucky 8 Lines
- Cherry Bonus
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| NC | NC |
| NC | NC |
| DBL UP LAMP | DBL UP LAMP |
| TAKE LAMP | TAKE LAMP |
| BET LAMP | BET LAMP |
| BIG LAMP | BIG LAMP |
| START LAMP | START LAMP |
| NC | COUNT KEY |
| COUNT | COUNT HOPPER |
| LOCK3 | COUNT3 |
| LOCK2 | COUNT2 |
| NC | COUNT KEY IN |
| LOCK1 | COUNT1 |
| COIN HOPPER | HOPPER FULL |
| KEY OUT | PAY OUT |
| TEST | BOOKS |
| COIN3 | COIN2 |
| KEY IN | COIN1 |
| NC | NC |
| BIG | BIG |
| NC | NC |
| NC | NC |
| DBL | DBL |
| TAKE | TAKE |
| BET | BET |
| SMALL | SMALL |
| START | START |
| ADJ | TICKET NOTCH |
| NC | TICKET |
| NC | NC |
| NC | NC |
| NC | NC |
| SPK- | SPK+ |
| VSYNC | VBLUE |
| VGREEN | VRED |
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| +5V | +5V |
| +5V | +12V |
| NC | NC |
| NC | NC |
| NC | NC |
| GND | GND |
| GND | GND |
