The Pit to JAMMA Adapter
Couldn't load pickup availability

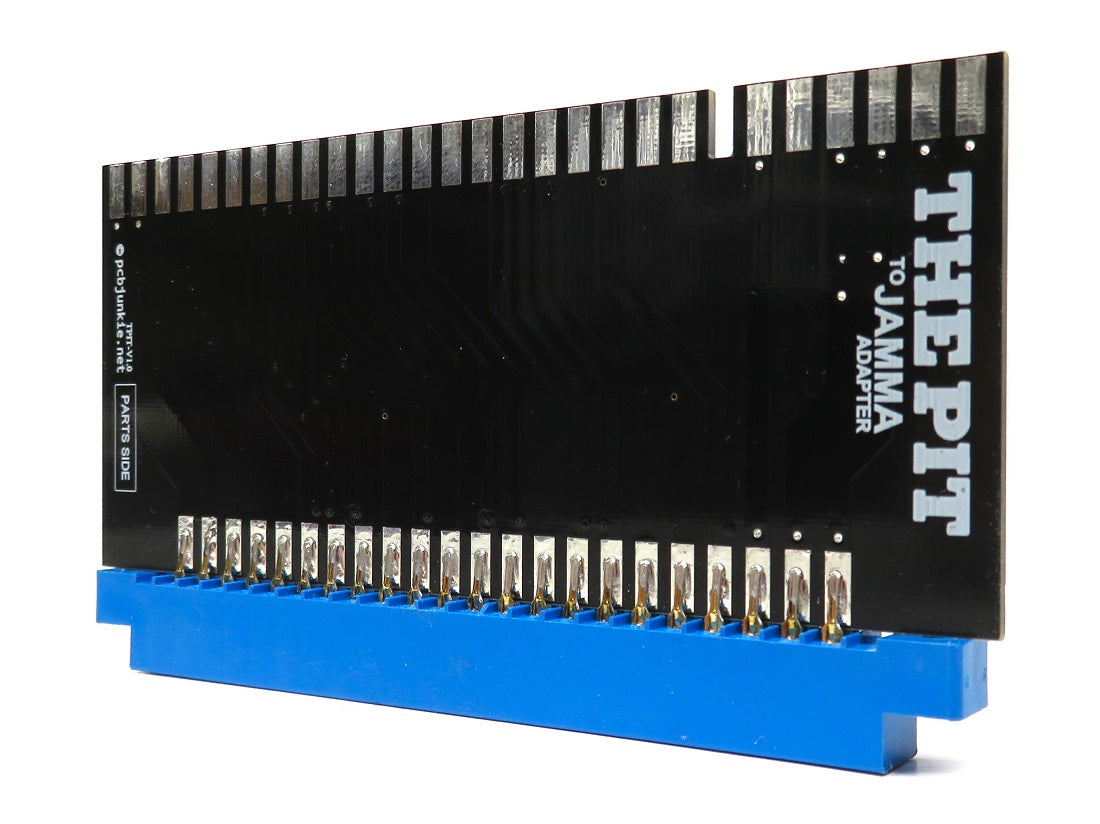

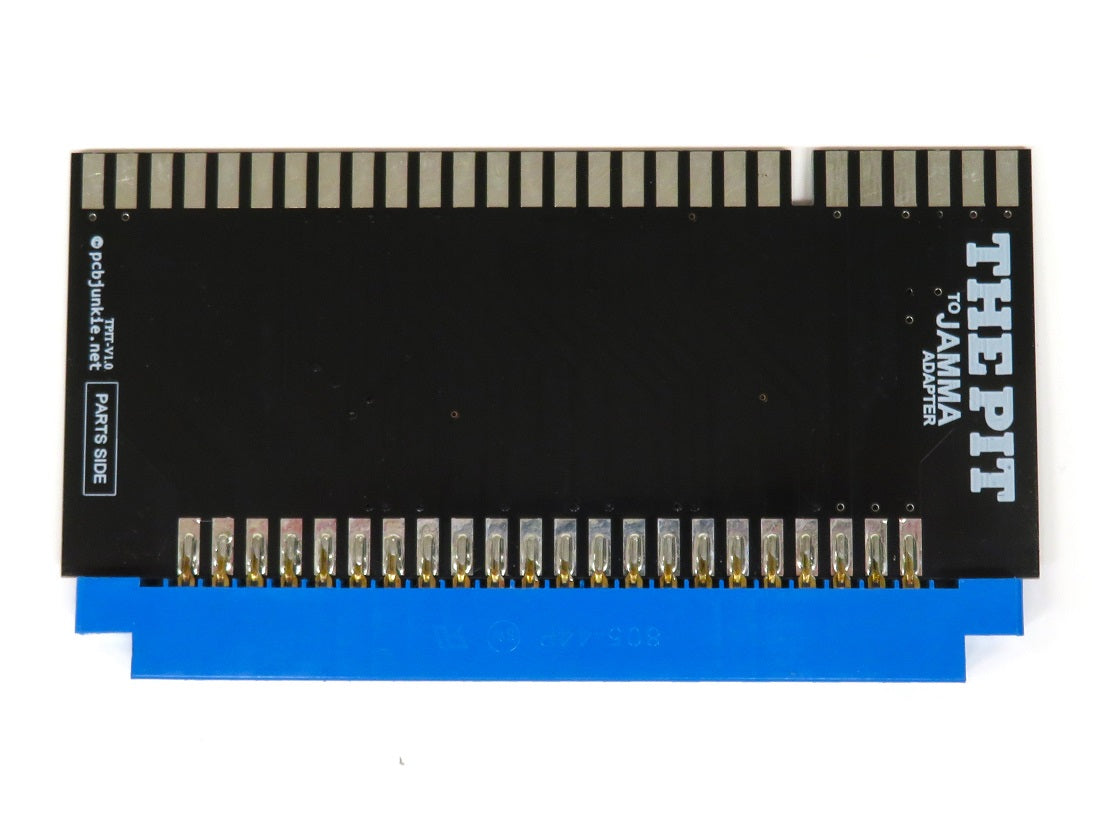

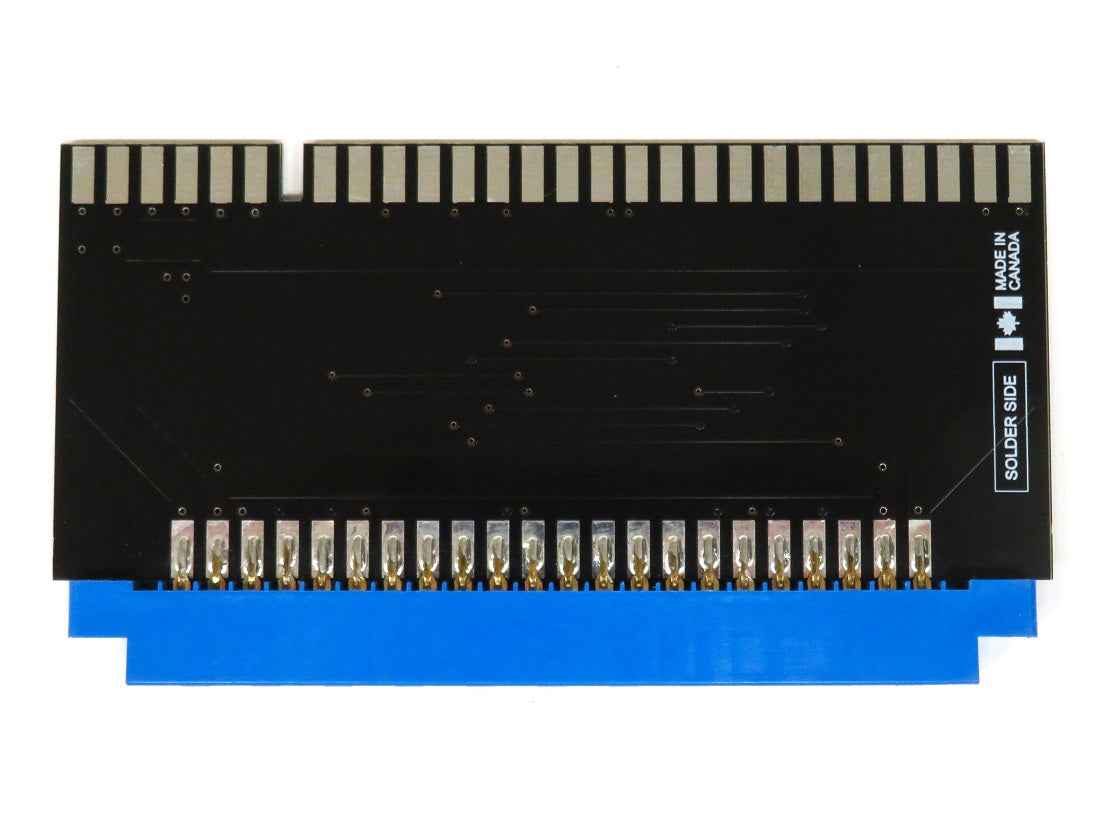

Allows you to use The Pit and other pre-JAMMA arcade games with the same pinout, in a JAMMA cabinet or a super gun device.
The Pit was developed by Zilec, but the game was licensed and distributed by Centuri and Taito in North America and Japan. A number of other, lesser known games were later released on the same hardware and share the same pinout.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with genuine The Pit board for compatibility.
Games in this list are not common and could not all be tested. As always please check the pinout section to ensure your game will work with this adapter.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| +5V | +5V |
| +5V | +5V |
| +12V | +12V |
| SPK+ | SPK- |
| NC | VSYNC |
| KEY | KEY |
| VRED | VGREEN |
| VBLUE | VGND |
| NC | NC |
| COIN1 | NC |
| P2START | NC |
| NC | P1START |
| P2UP | P1UP |
| P2LEFT | P1LEFT |
| P2DOWN | P1DOWN |
| P2RIGHT | P1RIGHT |
| P2B1 | P1B1 |
| NC | NC |
| NC | NC |
| NC | NC |
| GND | GND |
| GND | GND |
