SNK Type B to JAMMA Adapter
Couldn't load pickup availability

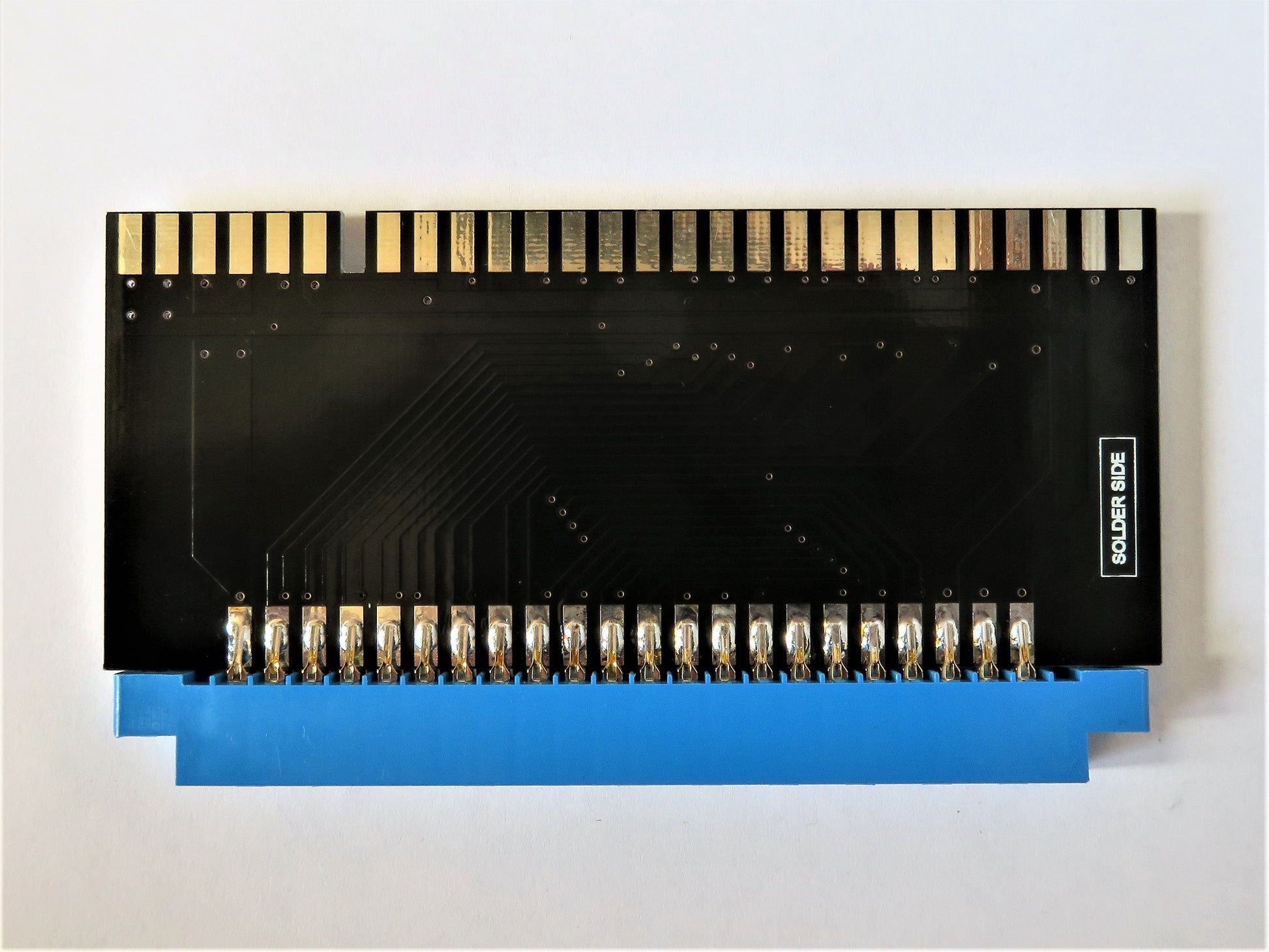

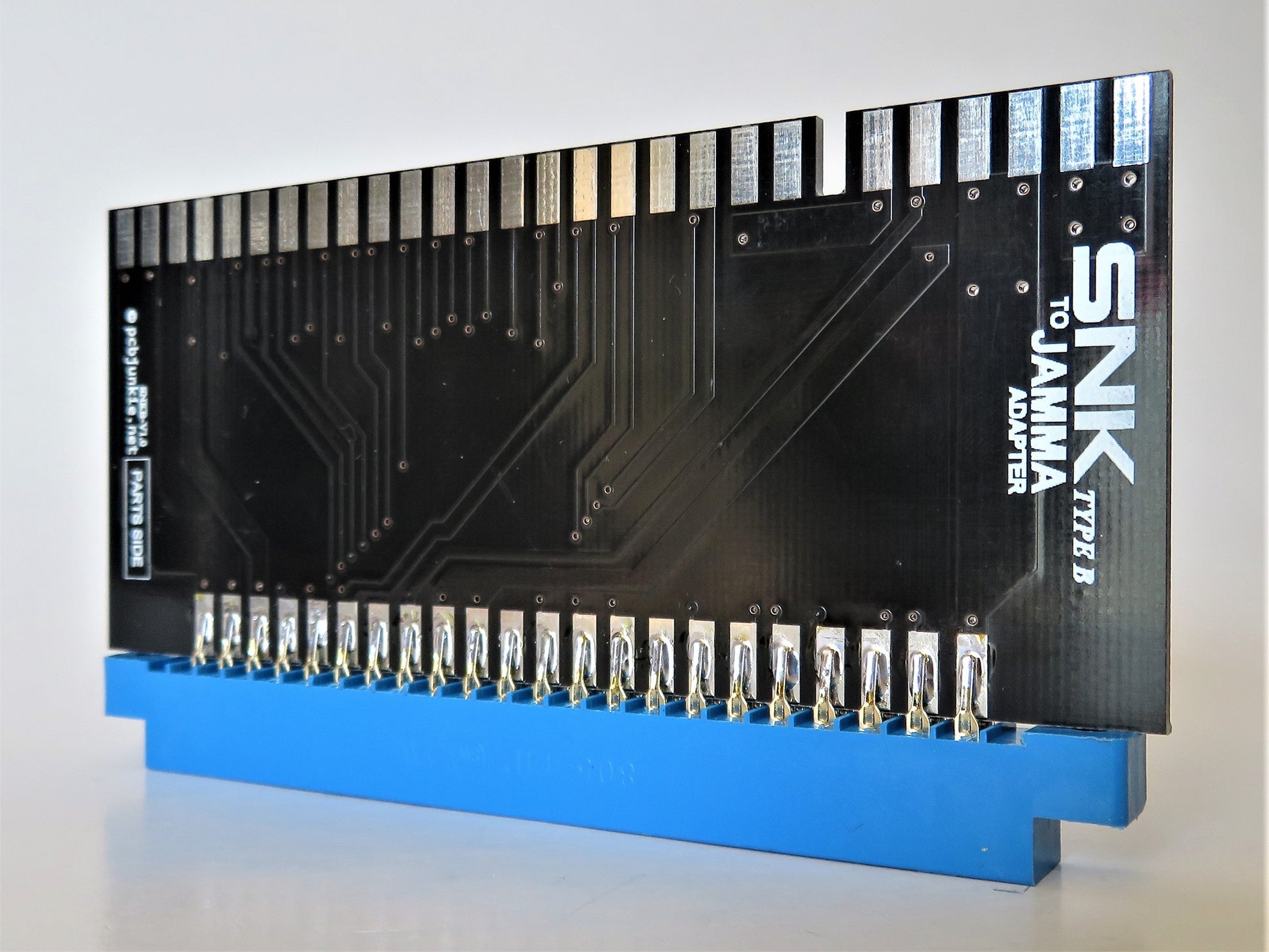

Allows you to use your SNK classic pre-JAMMA game, in a JAMMA cabinet or a super gun device.
SNK (Shin Nihon Kikaku) is a Japanese video game manufacturer best known for its Neo Geo platform and games.
Early in the 1980s, SNK developed a number of games that were licensed by Rockola for distribution in North America, however later in the decade they released a number of games on their own. The updated hardware was the basis for a number of vertical shooters which shared a common pinout, but was no longer compatible with their earlier games.
For an adapter compatible with their early games, please see the page for the SNK Rockola to JAMMA Adapter.
Game Compatibility
Game Compatibility
This is the list of games that should be compatible with this adapter:
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| +5V | +5V |
| COIN1 | COIN2 |
| SVC | TEST |
| P1START | P2START |
| P1UP | P1DOWN |
| P1LEFT | P1RIGHT |
| P1B1 | P1B2 |
| P1B3 | NC |
| P2UP | P2DOWN |
| P2LEFT | P2RIGHT |
| P2B1 | P2B2 |
| P2B3 | NC |
| GND | GND |
| GND | GND |
| -5V | -5V |
| NC | NC |
| VSYNC | VBLUE |
| VGREEN | VRED |
| SPK+ | SPK- |
| +12V | +12V |
| GND | GND |
| GND | GND |
Dimensions
Dimensions
