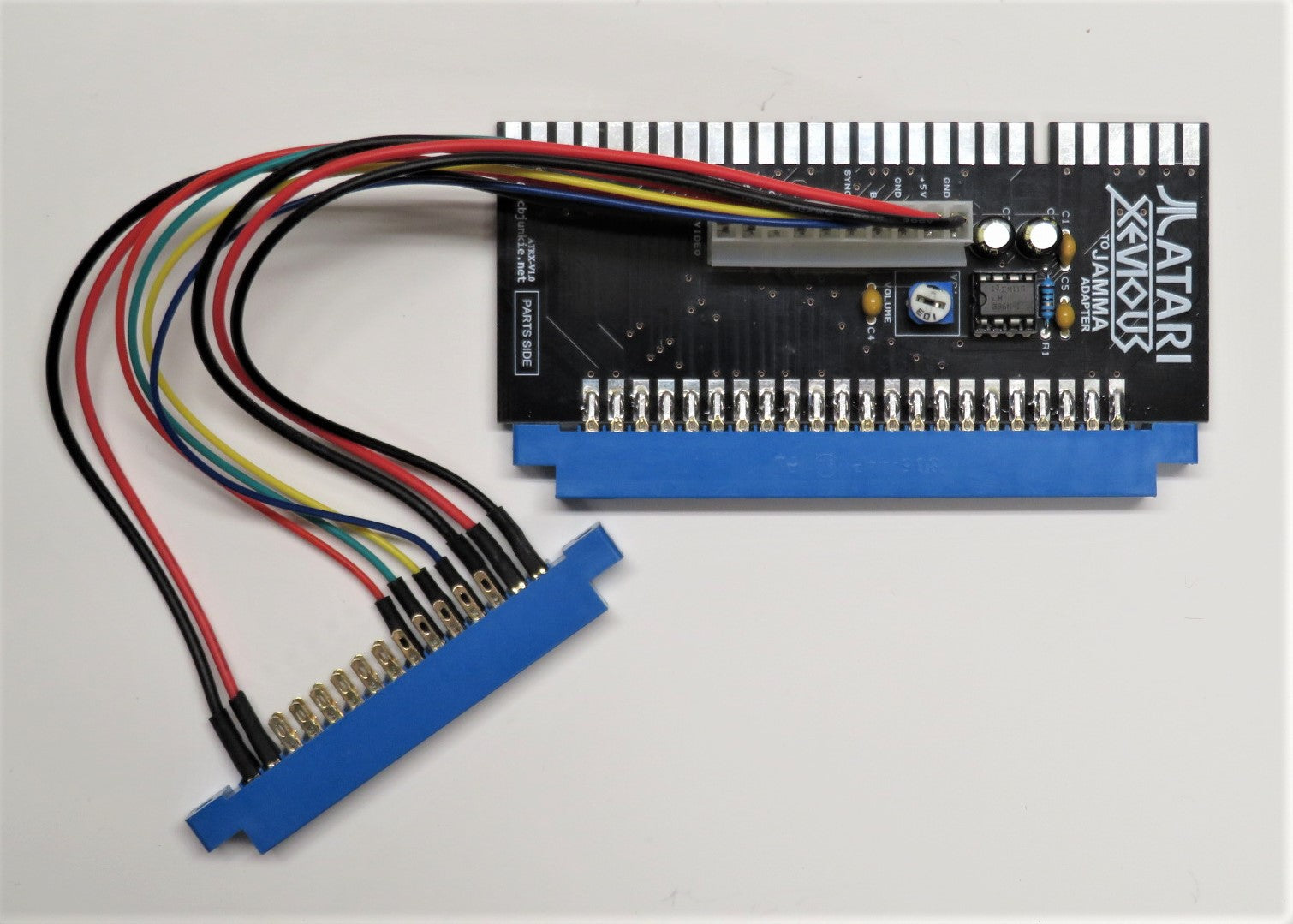

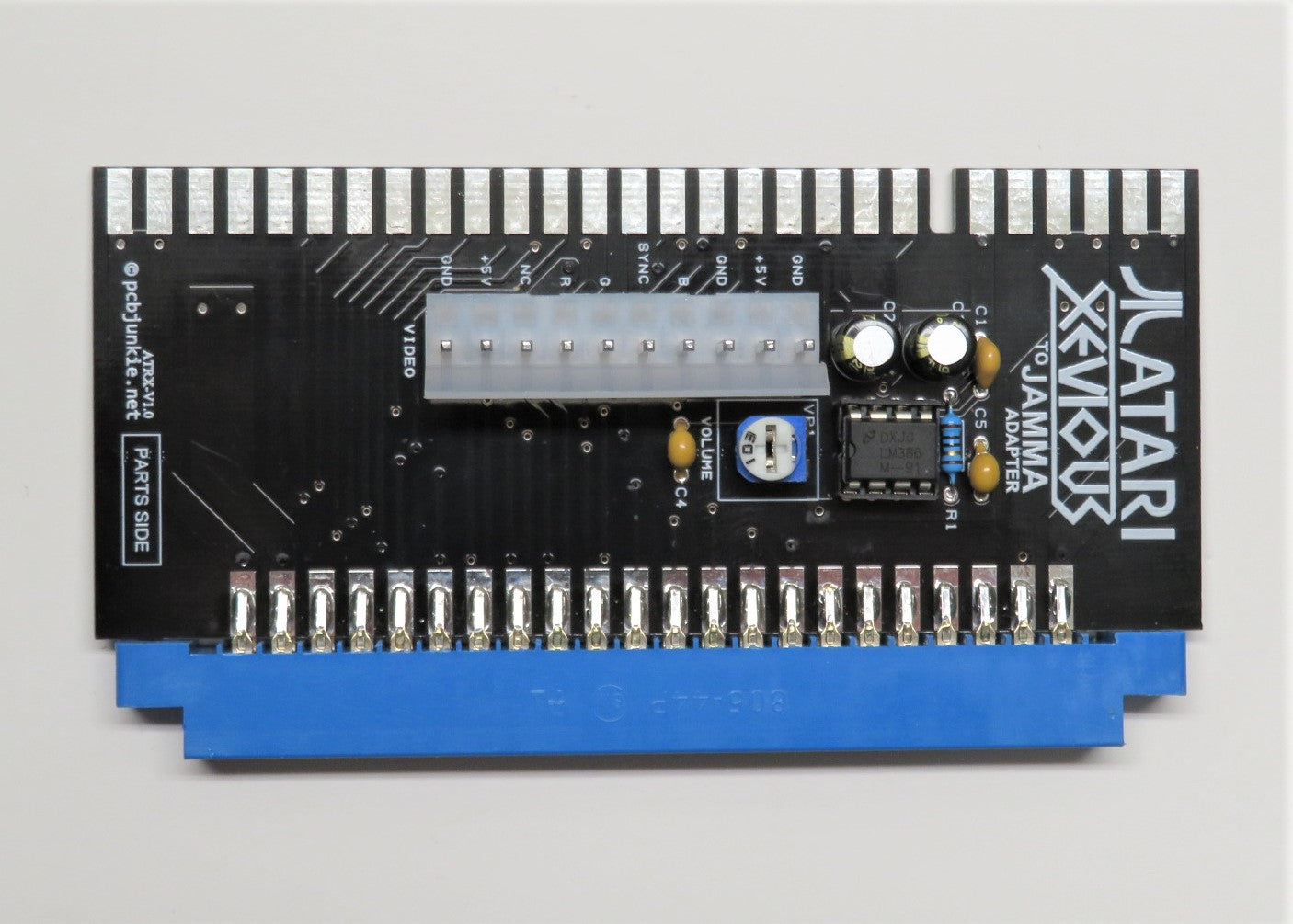

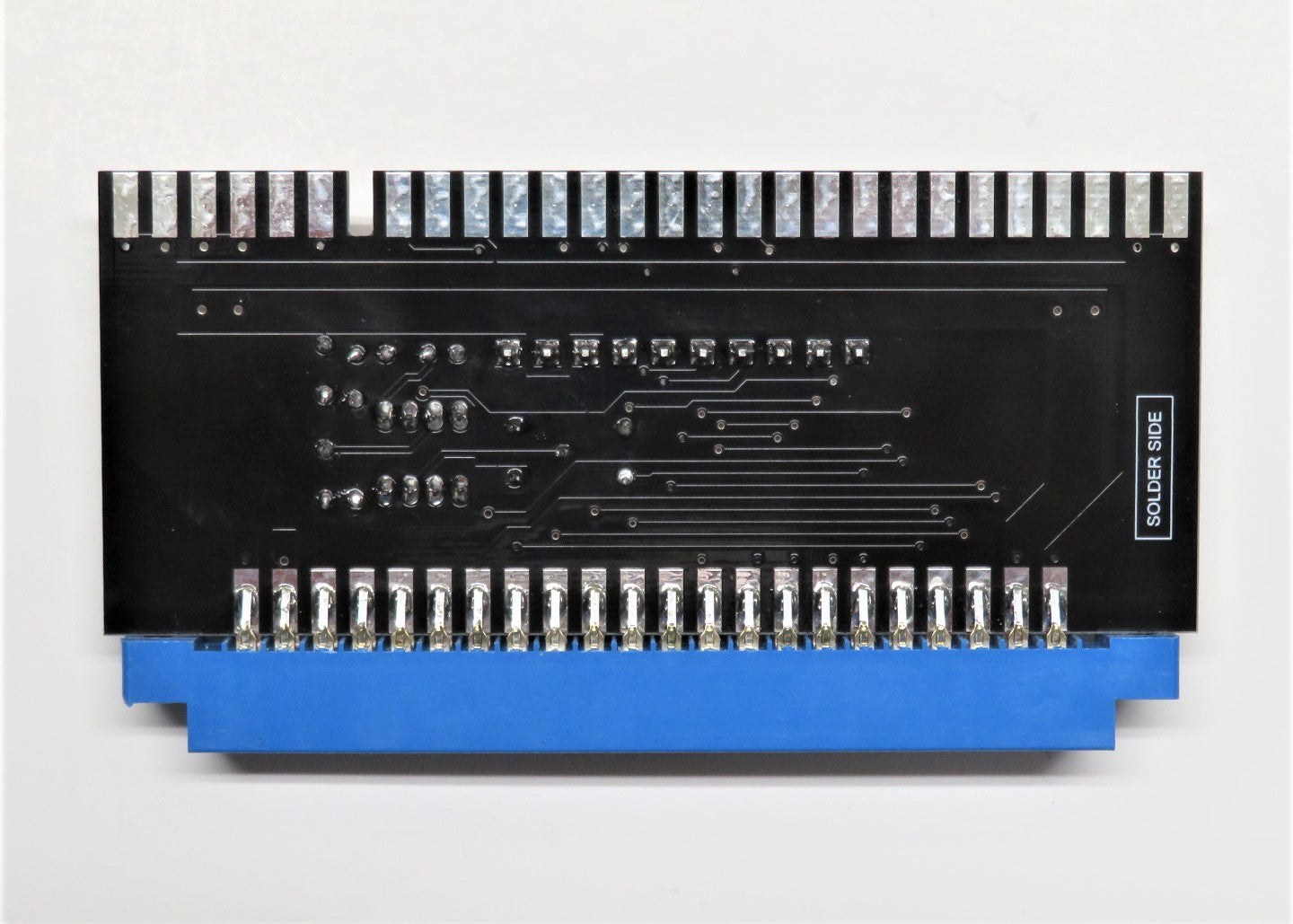

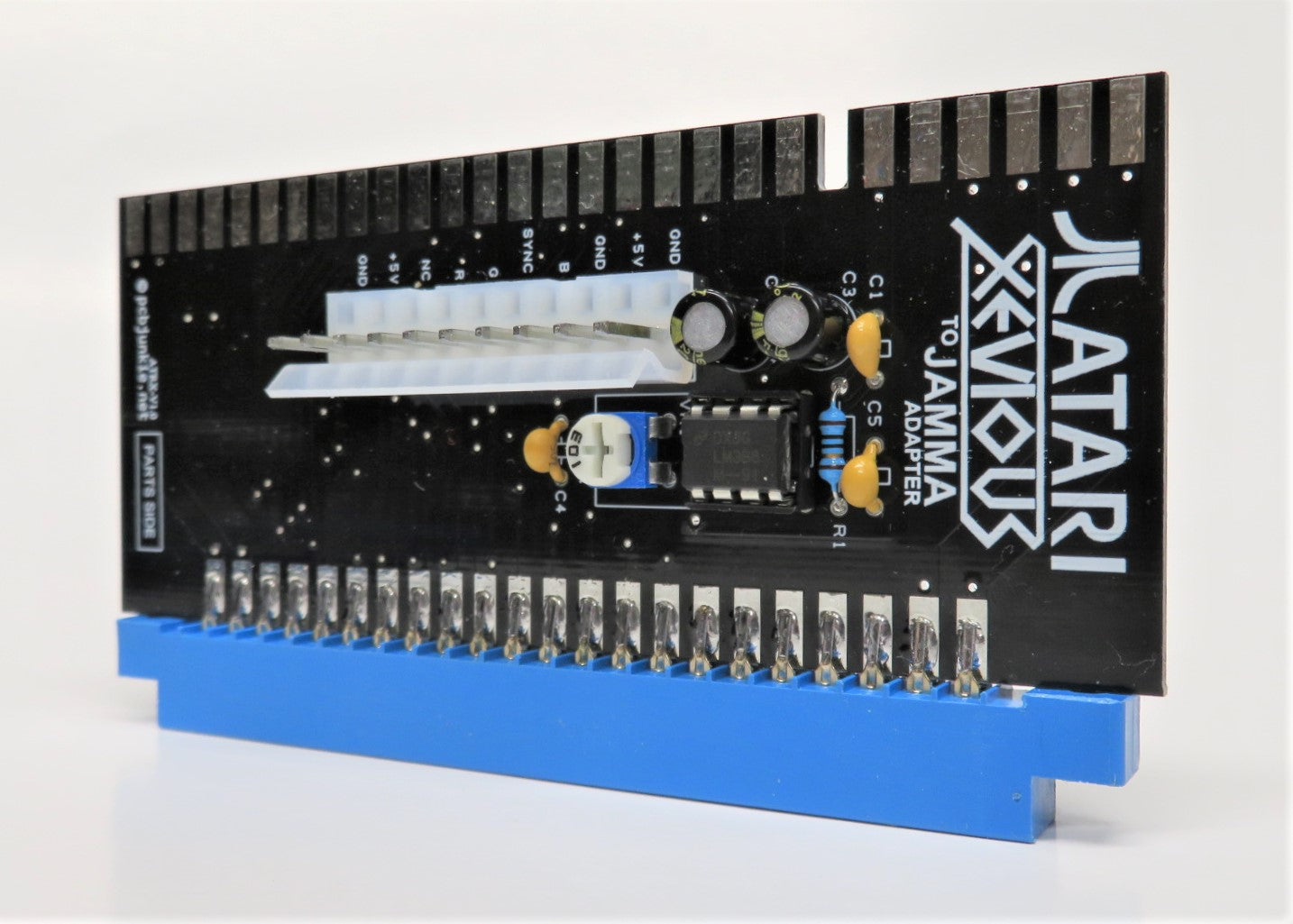

Atari Xevious to JAMMA Adapter
Couldn't load pickup availability
After licensing Dig Dug from Namco, Atari licensed Xevious, another Namco classic for distribution outside of Japan. As with Dig Dug, they also completely redesigned Namco’s boards while still utilizing Namco’s custom chipset.
The Atari version of Xevious has a unique pinout. The pinout is not compatible with the Namco version of the game, or other Atari games licensed from Namco.
Game Compatibility
Game Compatibility
The adapter has been tested with a genuine version of Atari Xevious.
Important: This adapter is not compatible with the Namco (Japanese version) of the game. That version uses the Namco Galaga pinout for which you can find the adapter here.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND (SNS-) | GND |
| +5V (SNS+) | +5V |
| NC | NC |
| NC | NC |
| NC | NC |
| LAMP1 | LAMP2 |
| P1B2 | NC |
| NC | P1UP |
| NC | P1RIGHT |
| NC | P1DOWN |
| NC | P1LEFT |
| NC | P1B1 |
| P2START | P1START |
| COIN2 | COIN1 |
| TEST | SVC |
| COUNT1 | COUNT2 |
| AUDIO1 | AUDIO2 |
| NC | 10.3V |
| NC | NC |
| NC | NC |
| +5V | +5V |
| GND | GND |
