Atari Missile Command to JAMMA Adapter
Couldn't load pickup availability

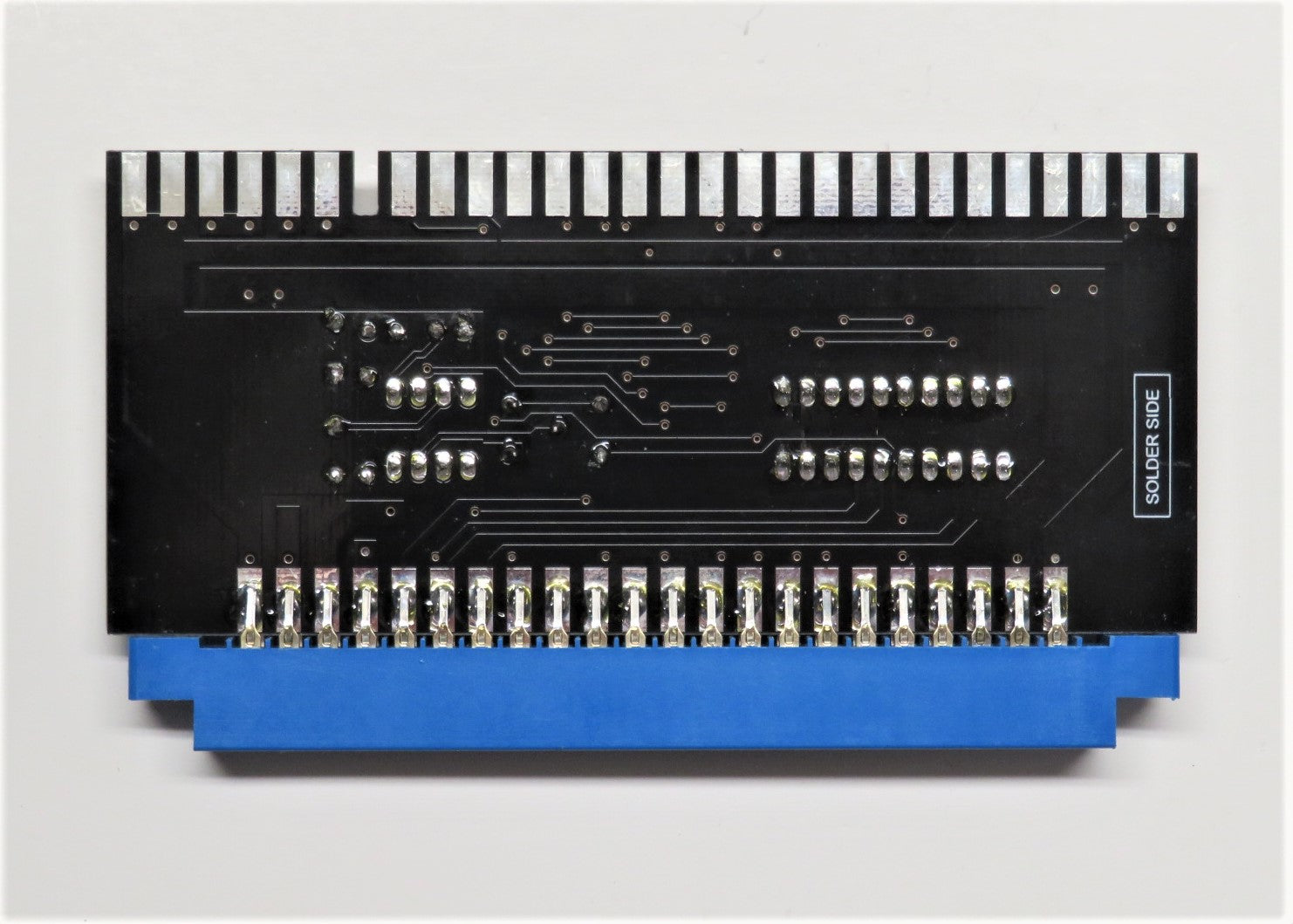

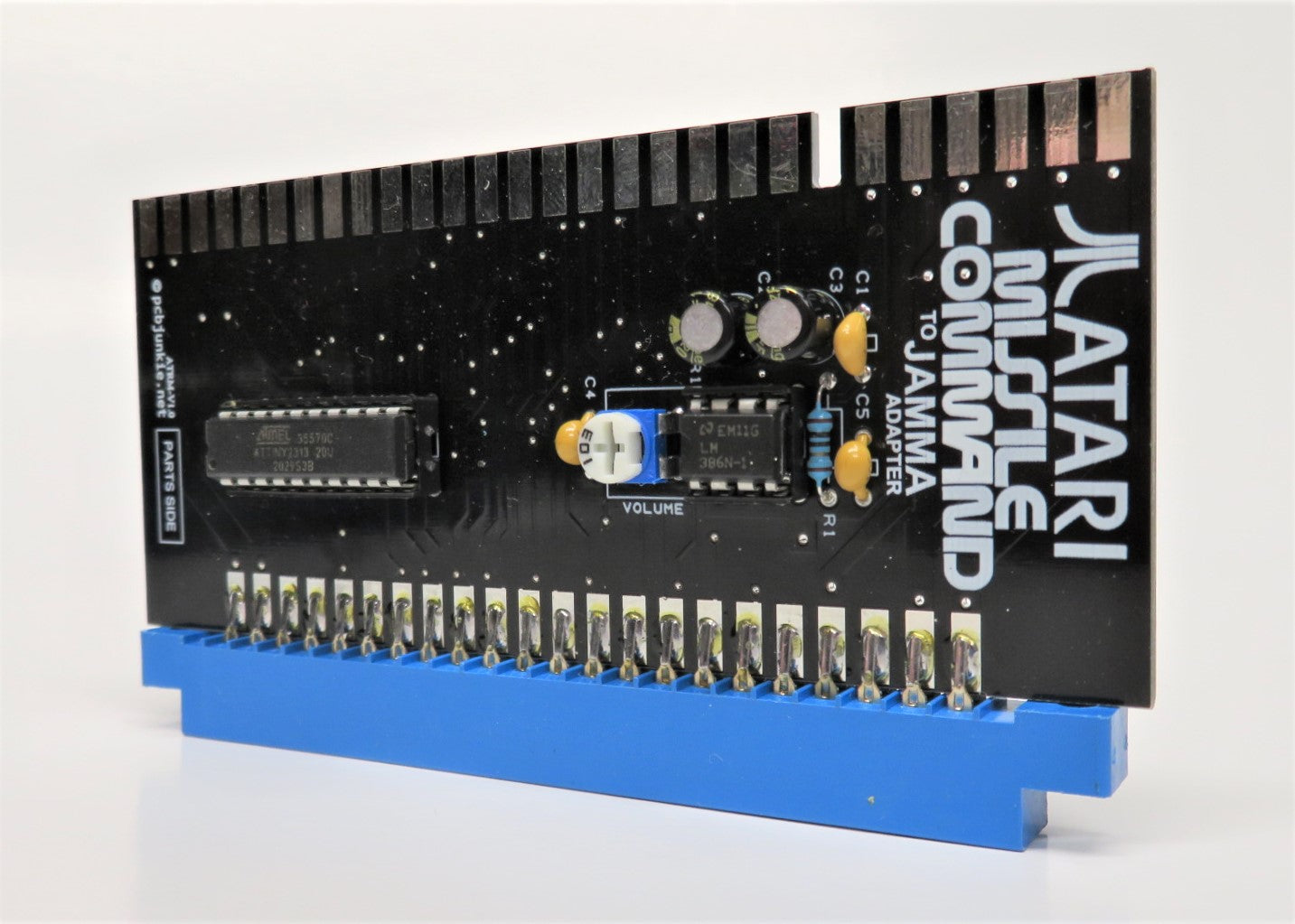

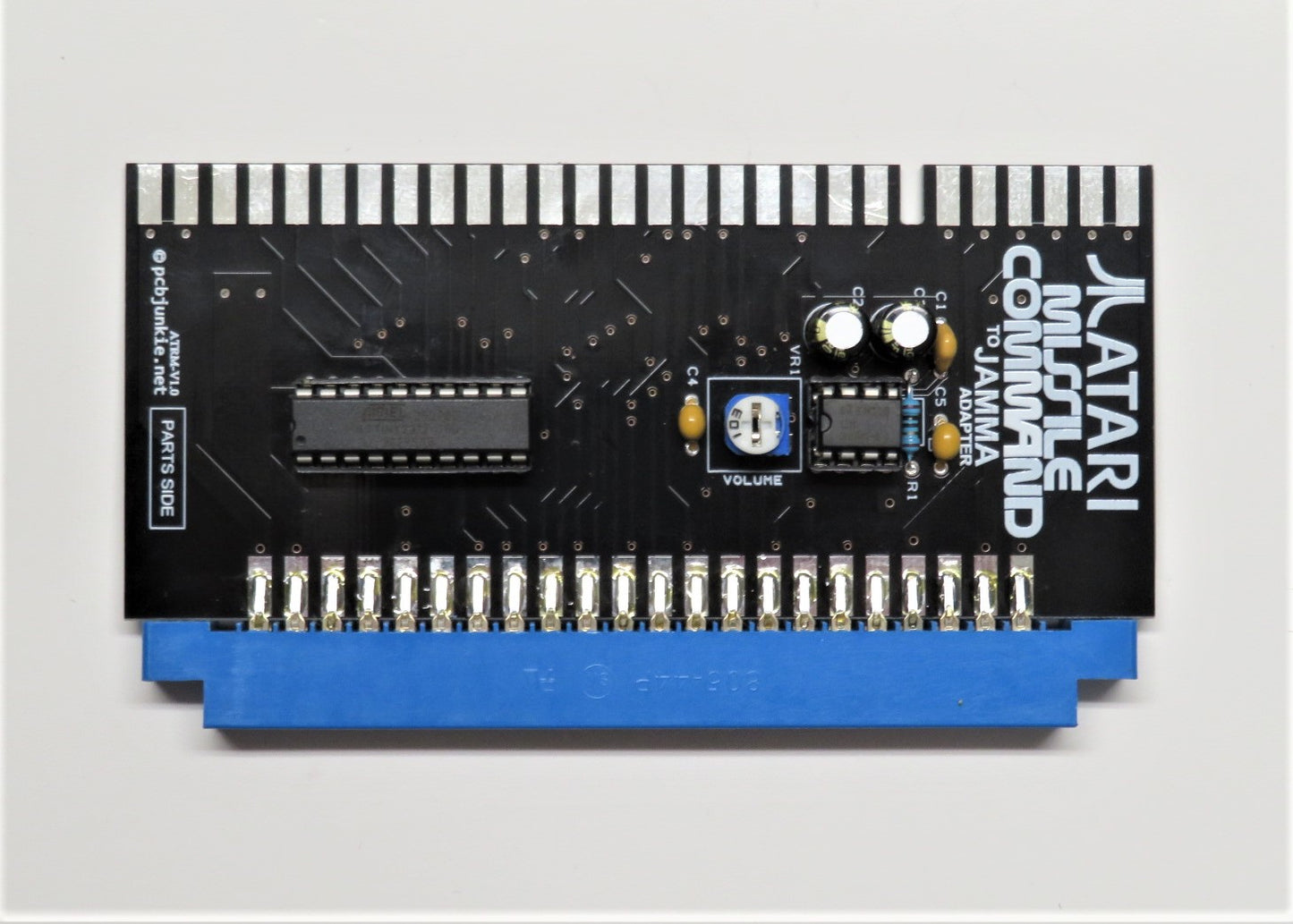

Moving a crosshair across the sky to launch a counter-missile strike was very appropriate for the political atmosphere of the early 80s. This was Atari’s huge arcade hit and an instant classic later ported to countless gaming consoles.
As with all Atari games of that period, Missile Command has a unique pinout. While the original game uses a trackball, the adapter has an onboard micro-controller based trackball emulation layer so the game can be played with a standard JAMMA joystick.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a genuine version of Atari Missile Command.
Important: This adapter connects only to the 44 pin edge connector on the PCB.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND (SNS-) | GND |
| +5V (SNS+) | +5V |
| +12V | NC |
| -5V | NC |
| VSYNC | NC |
| HDIR | HCLK |
| VCLK | VDIR |
| START1 | COIN2 |
| SLAM | TEST |
| START2 | LED1 |
| COUNT3 | COUNT2 |
| COUNT1 | VGREEN |
| VRED | VBLUE |
| COIN1 | COIN3 |
| P1B3 | P1B2 |
| P1B1 | LED2 |
| VVSYNC | VHSYNC |
| AUDIO2 | AUDIO1 |
| NC | NC |
| NC | NC |
| +5V | +5V |
| GND | GND |
Note: JAMMA button 4 controls the speed of the crosshairs when using the joystick.
