Atari Dig Dug to JAMMA Adapter
Couldn't load pickup availability

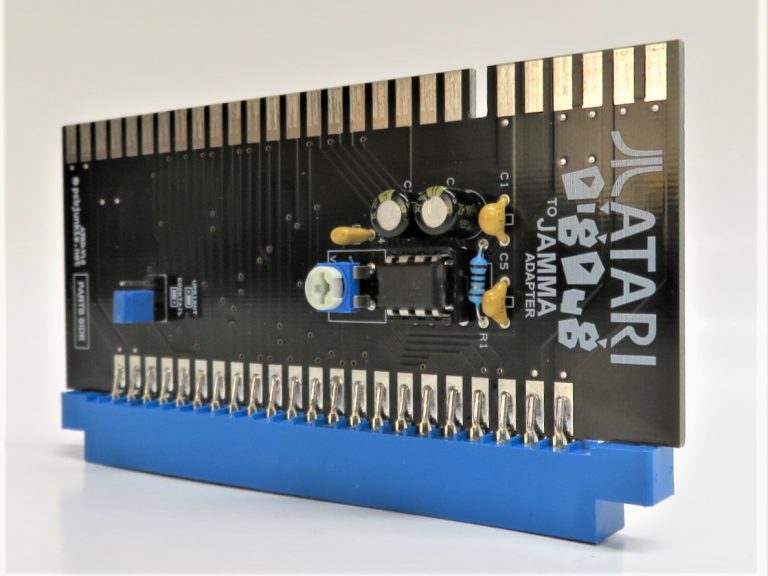

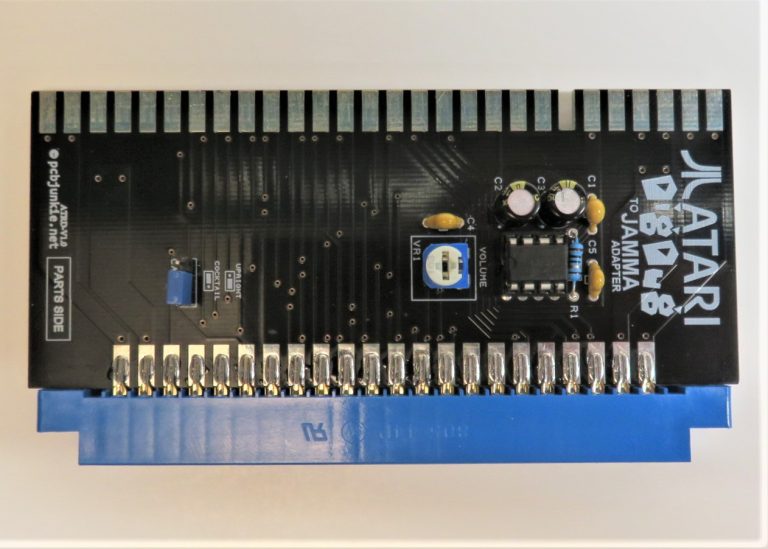

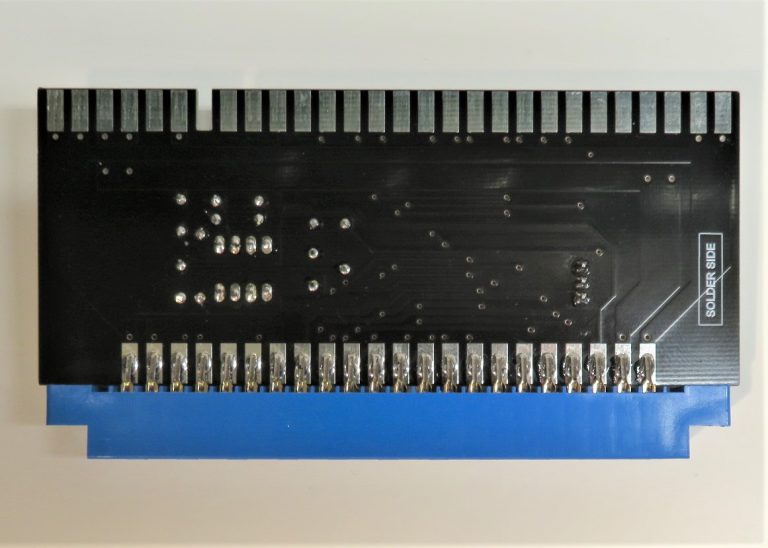

Atari was an arcade powerhouse in 1980. They also licensed a number of games from various other manufacturers for distribution in North America and Europe. They ended up licensing several big releases from Namco including one of their hits, Dig Dug.
Strangely enough, Atari redesigned all of Namco’s boards, and in the case of Dig Dug more than once. For this reason, the Atari version of Dig Dug has a unique pinout. The pinout is compatible with both versions of Atari Dig Dug, but not compatible with the Namco version or other Atari games licensed from Namco.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a genuine version of Atari Dig Dug.
Important: This adapter is not compatible with the Namco (Japanese version) of the game. That version uses the Namco Galaga pinout for which you can find the adapter here.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| +5V (SNS+) | +5V |
| VGREEN | NC |
| VRED | VBLUE |
| NC | NC |
| VGND | VSYNC |
| COUNT2 | LOCK |
| P1UP | P1LED |
| P1DOWN | P1RIGHT |
| P2UP | P1LEFT |
| P2DOWN | P2RIGHT |
| P1B1 | P2LEFT |
| P1START | P2B1 |
| COIN2 | P2START |
| SVC | COIN1 |
| COUNT1 | TEST |
| P2LED | TABLE |
| NC | +10.6V |
| NC | AUDIO- |
| +36VAC (NC) | AUDIO+ |
| +5V | +5V |
| GND | GND |
