Astro Fighter to JAMMA Adapter
Couldn't load pickup availability
Data East Corporation released Astro Fighter in Japan in 1979. It was well received and became one of the top earners thoughtout 1980, getting beaten out only by the three mega-hits: Asteroids, Galaxian and Space Invaders.
Astro Figher was popular enough to get licensed by Sega / Gremlin for the US market, while the cocktail version was distributed simultaneously by DECO themselves.
Astro Figher is one of the unique DECO games from this period which did not get a DECO Cassette release. The Cassette System did get a sequel however called Super Astro Fighter which arguably isn’t all that super.

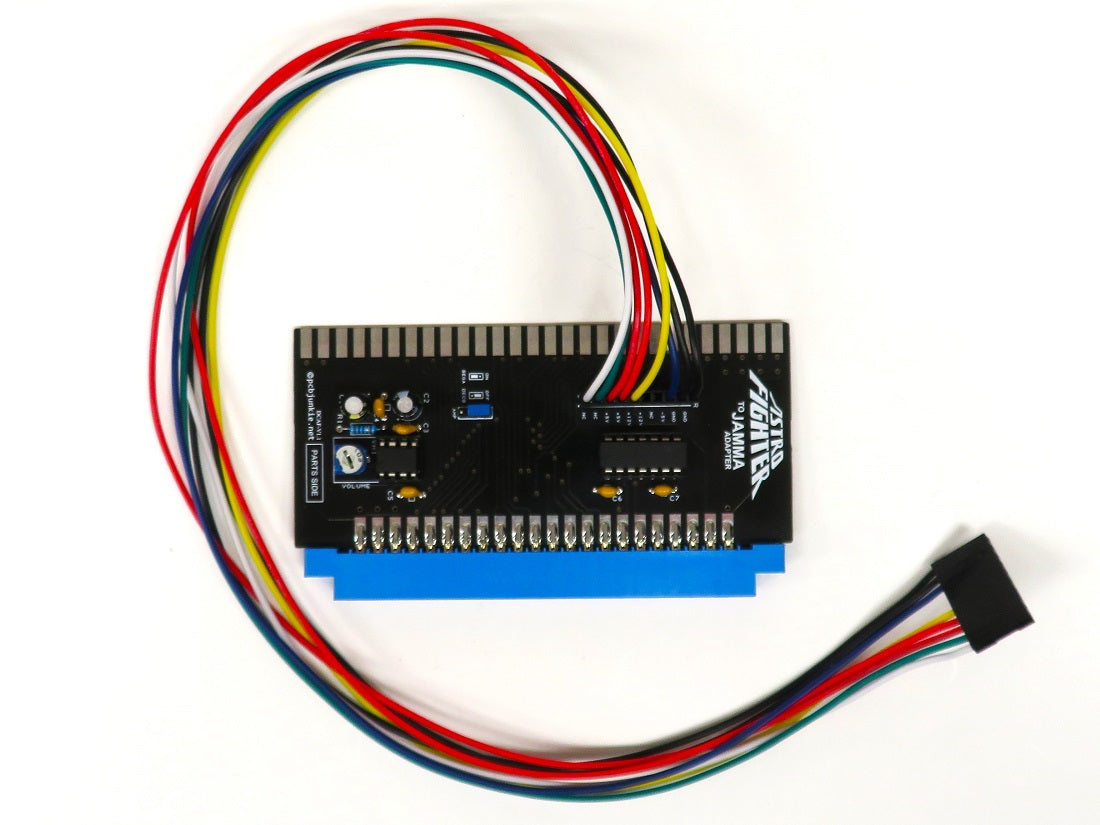

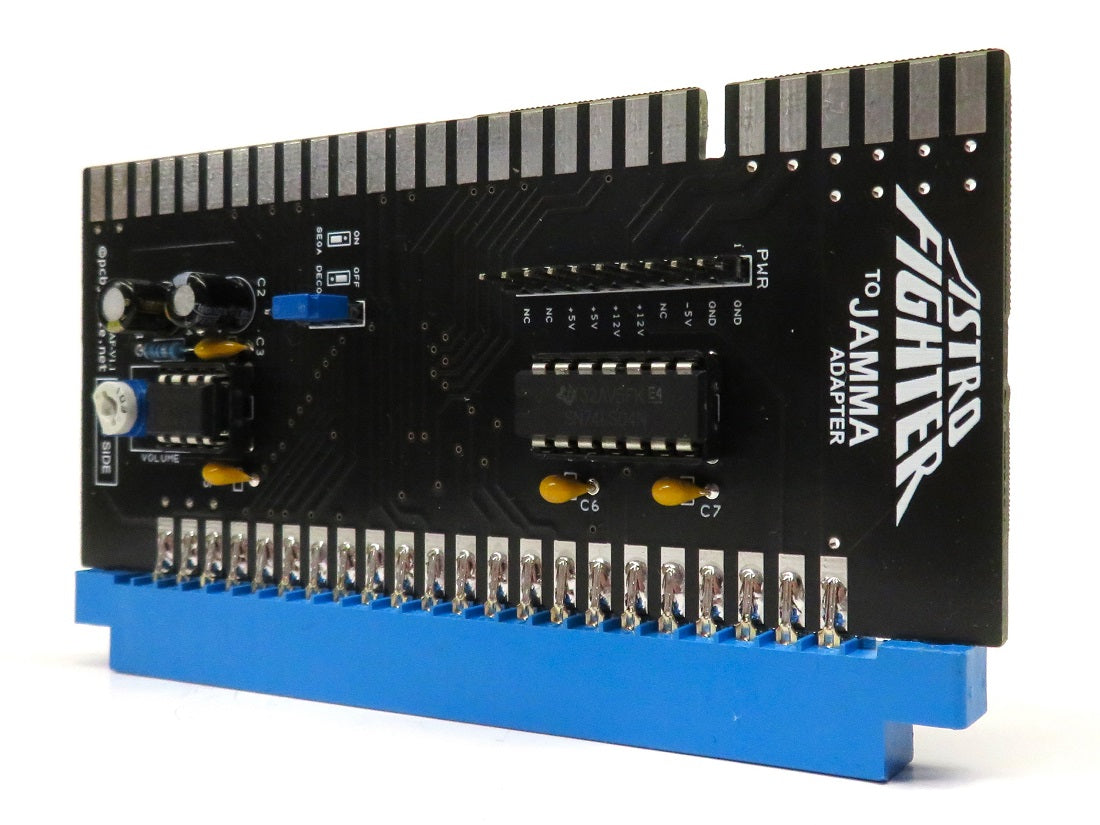

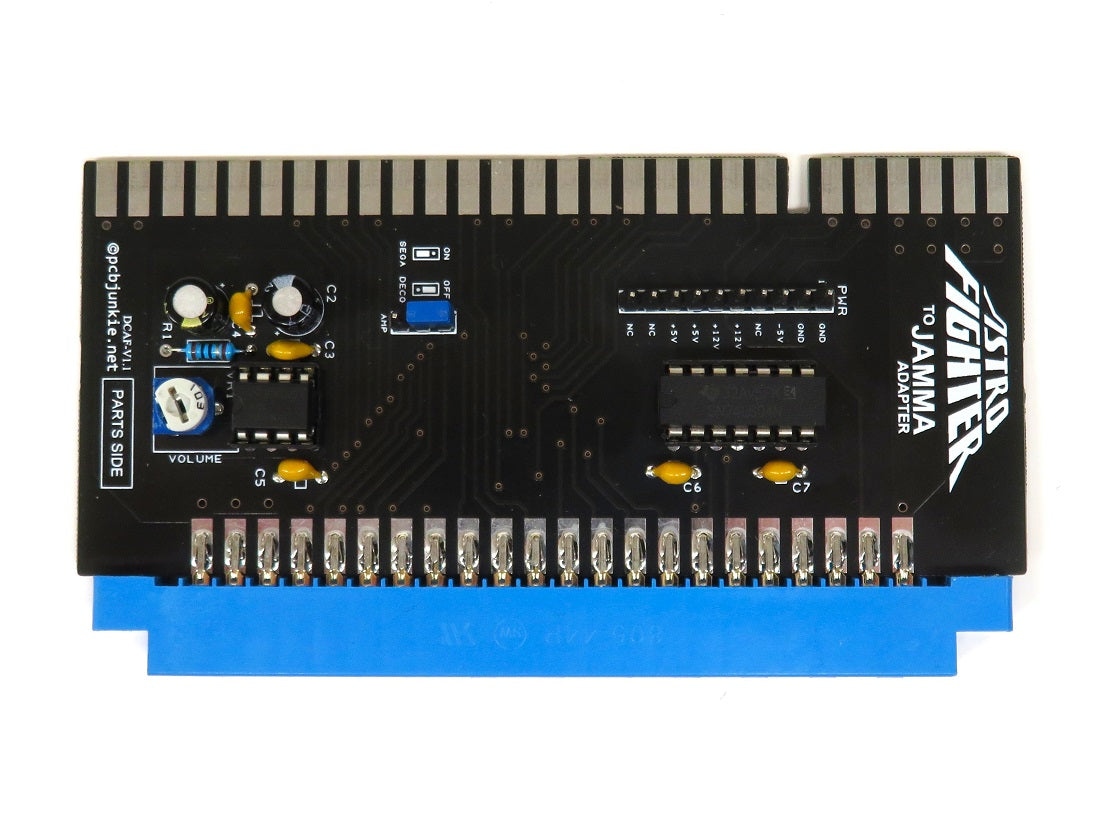

The game PCB is a cage stack of several boards, and comes in two flavors, the DECO version and the slightly modified Sega / Gremlin version. The pinout is nearly identical for both, but the Sega version requires an external sound amplifier which is built into the adapter. The adapter supports both versions of the game.
Game Compatibility
Game Compatibility
Game PCBs with a similar or compatible pinout are:
and possibly other DECO games from that period, specifically the two earlier games Space Fighter and Super Break. These games are fairly uncommon so additional compatibility has not yet been verified.
This adapter was tested with both genuine Sega / Gremlin and DECO versions of Astro Fighter.
Pinout
Pinout
Main Connector:

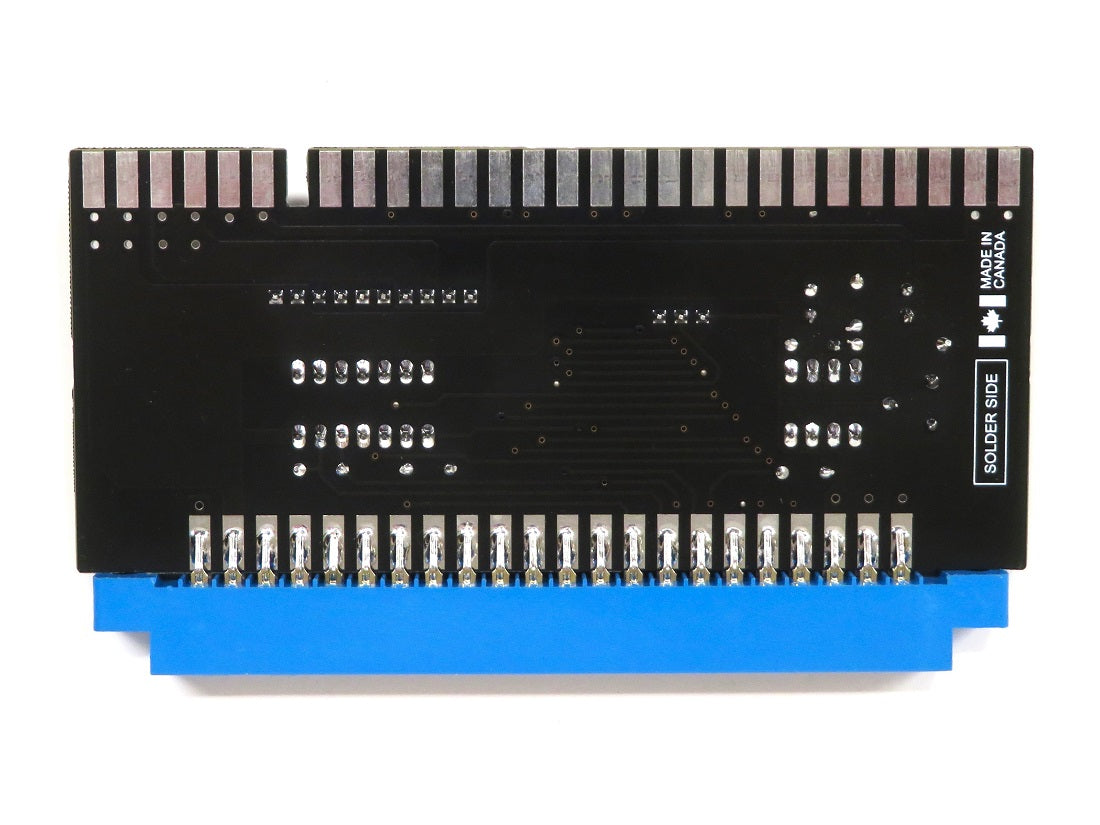

| SOLDER SIDE | PARTS SIDE |
|---|---|
| +5V | +5V |
| GND | COUNT1 |
| NC | COUNTPWR |
| NC | NC |
| NC | NC |
| NC | P2B1 |
| NC | P2LEFT |
| NC | P2RIGHT |
| NC | P1B1 |
| NC | P1LEFT |
| NC | P1RIGHT |
| NC | P2START |
| NC | P1START |
| SVCNC | SVCNO |
| COINNC | COINNO |
| SPK- | SPK+ |
| VGND | VSYNC |
| VBLUE | VGREEN |
| VRED | NC |
| GND | NC |
| GND | NC |
| GND | GND |
Power Connector:
| PIN | FUNCTION |
|---|---|
| 1 | GND |
| 2 |
GND |
| 3 | -5V |
| 4 | NC |
| 5 | +12V |
| 6 | +12V |
| 7 | +5V |
| 8 | +5V |
| 9 | NC |
| 10 | NC |
Dimensions
Dimensions
Shipping & Returns
Shipping & Returns
We ship twice a week, usually Tuesdays and Thursdays. Some items are built to order and require a 5 business days turnaround. Thank you for your understanding and your patience.
There is 30 days return policy on undamaged items. Buyer pays for return shipping. See Return policy page for more information.
